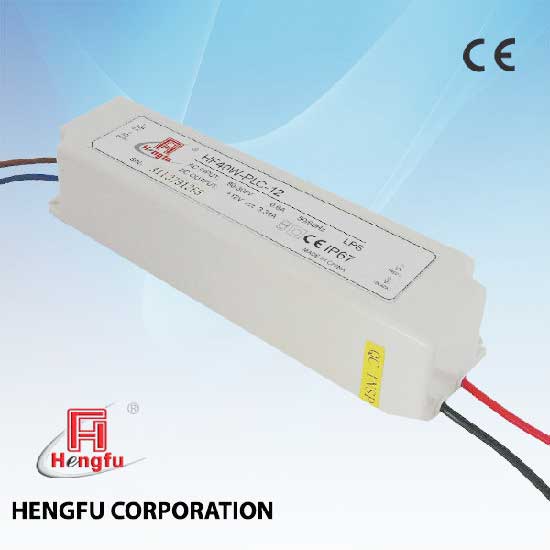

40W LED Driver
分享此页面
产品型号:
HF40W-PLC
品牌名称:
Hengfu
颜色:
White
尺寸:
(L) 162.5 x (W) 42.5 x (H) 32mm
港口:
Shanghai
最低订购数量:
1 piece
描述
联络供应商
描述
This is an LED driver suitable for outdoor LED lighting. It features an IP67 structure to offer reliable protection to the internal components. The robust plastic cover also promises a long service life.
  • 40W LED driver with PFC.
  • Input voltage: 90~264V AC (120~370V DC).
  • Input frequency: 47~63Hz.
  • Inrush current: cold start, 40A/230V.
  • Input leakage current: 0.25mA/230V AC.
  • Line regulation (full load): ± 0.5%.
  • Output overload protection: 100~110%, current limiting and auto recovery.
  • Output over voltage protection: 115~150%, shut off, and re-power on to recover.
  • Short circuit protection: hiccup mode and auto recovery.
  • Rise time: 80ms @ full load (typical).
  • Hold up time: 20ms @ full load (typical).
  • Mechanical feature: plastic cover and IP67 design.
  • Operating temperature: -20 ~+70°C (ref. derating curve).
  • Storage temperature: -20 ~+85°C.
  • Operating humidity: 20%~93% RH (non condensing).
  • Storage Humidity: 20%~95% RH (non condensing).
  • MTBF: 100,000 hours.
  • Cooling: convection.
  • Safety standards: UL1310 class 2, UL8750, EN 61347, and EN 60950.
  • EMC standards: EN 55015, EN 55022 Class B, EN 61000-3-2 Class C, EN 61000-3-3, EN 61000-4-2, 3, 4, 5, 6, 8, 11, and EN 61547.
  • Withstand voltage: I/P -O/P: 3.75kv AC/1min.
  • Vibration: 10~150Hz, 2G 10min/1 cycle and 30min each along X, Y, Z axes.
  • Connection: wire.
  • Universal AC input.
  • Constant current limiting.
  • PF0.9 @ 230V AC.
  • Electrolytic capacitors all 105°C.
  • Protections: overload, over voltage, short circuit.
  • Warranty: 2 years.
