5 Pin & 7 Pin ANSI C136.41 Rotatable Dimming Photocontrol Receptacle | 灯饰

Zhejiang Qicheng Electrical Equipment Co., Ltd.

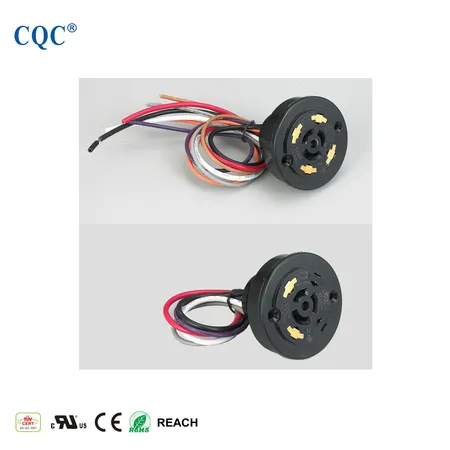

5 Pin & 7 Pin ANSI C136.41 Rotatable Dimming Photocontrol Receptacle

产品型号:

LC-10R/5-5P,LC-10R/5-7P

品牌名称:

CQC

颜色:

Black

描述

联络供应商

Certification: UL certified
UL File No.: E178670
Rated current:15A max for photocontrol receptacle, 0.1A max for Dimming/Signal
Rated Voltage:105-480VAC/DC
Material: Bakelite
Wiring:3 main wires (14AWG) + 2 or 4 dimming/signal wires (18AWG) *30cm long
Installation Method: Screws installation tool free installation is also available with another model.
