5032 SMD Automotive MHz Crystal 8MHz-125MHz Xtal

品牌:

JGHC晶光华

是否可订造:

可以

型号编号:

AS5

尺寸:

5.0x3.2x0.9mm

Nominal Frequency:

8-125MHz

Load Capacitance:

20pF or specif

Frequency Difference:

±20ppm or specif

Website:

www.jghcorp.com

描述

联络供应商

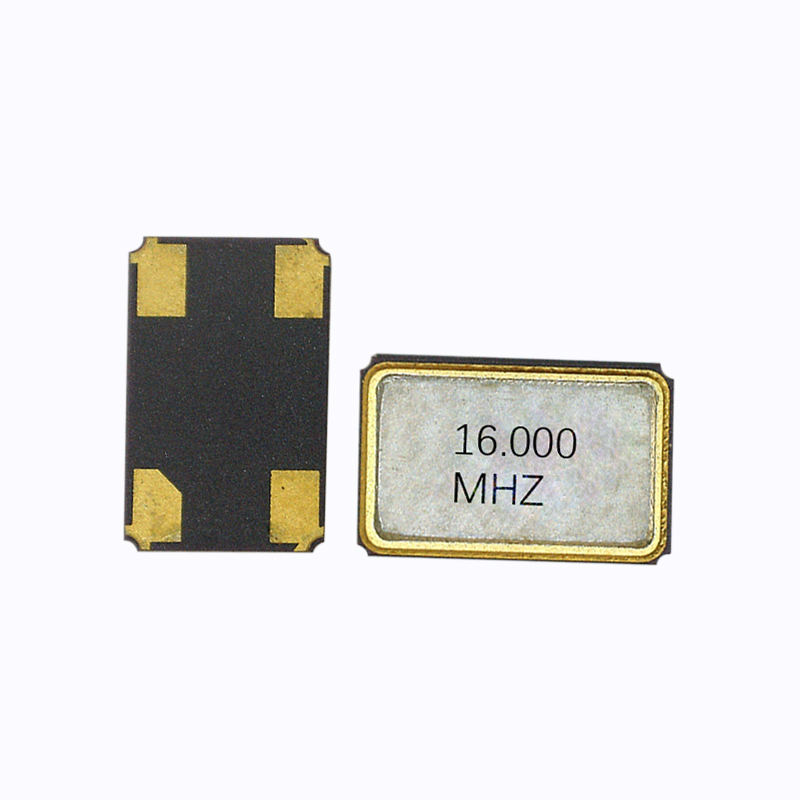

5032 SMD Automotive MHz Crystal 5.0x3.2x0.9mm AS5 Series

Our Automotive MHz Crystal products, compliant with AEC-Q200 standards, offer high frequency stability across a -40~125°C temperature range. These products provide stable clock signals for automotive applications.

Features

Reliable seam sealed ceramic package.

Wide operating termperature range.

Superior and reliable performance in harsh environment.

Application: TPMS, ECM, ABS and sensor modules.

RoHS Compliant / Pb Free.

Crystals specifications:

ITEMS/TYPE	AS5
Frequency Range	8~125MHz
Vibration Mode	Fundamental
Load Capacitance	20pF, or specify
Frequency Tolerance (at 25℃)	±20ppm, or specify
Frequency Stability Over Operating Temperature Range	±150ppm Max.
Operating Temperature Range	-40~+125℃ or specify
Drive Level	300μW Max. (10 μW typical)
Storage Temperature Range	-40~+125℃
Reliability Standard	AEC-Q200
