5032 SMD Crystal 8MHz-54MHz Xtal

品牌:

JGHC晶光华

是否可订造:

可以

型号编号:

S53

尺寸:

5.0x3.2x0.9mm

Nominal Frequency:

8-54MHz

Load Capacitance:

20pF or specif

Frequency Difference:

±20ppm or specif

描述

联络供应商

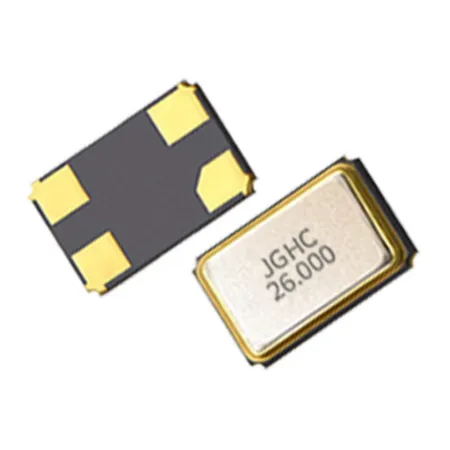

SMD Seam Sealing Crystals 5.0x3.2x0.9mm S53 Series

Features

High precision characteristics covering up to wide frequency range.

Higher frequency stability and reliability.

Excellent for reducing EMI effect.

The best choice of Bluetooth, wireless communication set, DSC, PDA,mobile phone and USB interface card.

RoHS Compliant / Pb Free.

Crystals specifications:

ITEMS/TYPE	S53
Frequency Range	8~54MHz
Load Capacitance	10pF, 12pF, 16pF, 20pF, or specify
Frequency Tolerance (at 25℃)	±10ppm, ±20ppm, or specify
Frequency Stability Over Operating Temperature Range	±10ppm, ±20ppm, or specify
Operating Temperature Range	-40~+85℃, or specify
Shunt Capacitance (C0)	5pF Max. (2pF typical)
Drive Level	1~200μW (100 μW typical)
Aging (at 25℃)	± 3 ppm/year Max.
Storage Temperature Range	-40~+125℃
