50W 160lm/W Multi-functional Industrial Led Linear Trunking Continuous Light with DALI, Emergency

美元 $20.00 - 美元 $52.00

生产所需时间:

8 日

运送方式:

DHL/UPS/FEDEX/TNT and other

Brand:

CoreShine

Voltage(V):

AC 220-240V/100-277V

Certification:

CCC, CE, FCC, GS, LVD, RoHS, SAA, UL

Warranty:

5 year

Light Source:

LED

Body Material:

Aluminum, Stainless Steel

Is Dimmable:

Yes

Power Source:

Switch Type:

Motion Sensor Switch

Length Option:

600mm;1200mm;2400mm;1500mm;

Trunking rail length:

1000mm;1500mm;2000mm;3000mm;4000mm

Lumen:

2240lm-16000lm

Power:

14W,18W,20W,35W,40W,50W,70W...

Beam angle:

25°;60°;90°;120°; Asymmetric; Double Asymmetric

Lighting Efficency:

160lm/W

LED Chip:

Everlight/Samsung

Driver:

Flicker Driver / Non-flicker Driver

PF:

>0.95

THD:

<15%

CRI:

>90Ra

Optional Function Module:

Dimmable(DALI/1-10V), Emergency, Sensor,Track Spot Light

Packing:

Luminaire and Trunking rail are packed separately

应用:

Supermarket, Warehouse, Workshop, Office, Car Parking Industrial etc.

是否可订造:

可以

Payments:

L/C,T/T,Western Union,MoneyGram

Port:

Shenzhen

描述

联络供应商

Product Details

Coreshine S-LINE Linear Lighting System is an energy-efficient, low maintenance cost, and better alternative to traditional linear fluorescent in a variety of industrial, commercial, and light assembly applications.

Cost-effective light-line solution for industrial, commercial, and other applications
Good quality of light with high lumen output to meet different requirements
Easy to install, reducing time, labor, packaging waste, and complexity
Flexible solution

Length	Power	Lumen	Code No.
1200mm	30W	4800lm	CFL-1230-X1X2-X3WH
1200mm	40W	6400lm	CFL-1240-X1X2-X3WH
1200mm	60W	9600lm	CFL-1260-X1X2-X3WH
1500mm	35W	5600lm	CFL-1535-X1X2-X3WH
1500mm	50W	8000lm	CFL-1550-X1X2-X3WH
1500mm	70W	11200lm	CFL-1570-X1X2-X3WH
2400mm	60W	9600lm	CFL-2460-X1X2-X3WH
2400mm	80W	12800lm	CFL-2480-X1X2-X3WH
2400mm	120W	19600lm	CFL-24120-X1X2-X3WH

Return of Investment Comparison

We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse

300 sq.m
	Unite	S-line	LED Tube
Lighting Effect	lm/w	160	100
Qty of Luminaire	set	600	960
Total Power Consumption	KW	30	48
Unite Price of Electric	CNY/KWH	1.5
Light Time	Hour/Day	1.2
Electric bill /day	CNY	540.00	864.00
Electric bill / month	CNY	16,200.00	25,920.00
Electric bill / year	CNY	194,400.00	311,040.00
Save the cost per year	CNY	116,640.00

According to the simulation, the purchase cost will payback within 2 years

Why Choose Coreshine

CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.

Established in 2005
Located in Shenzhen
Number of employees 200 staffs
13,000 square meter 9 floors of workshop + 1 floor of office
Complete Industry Layout: R&D, Production, Marketing
Our Goal: To be World Leader of Linear Lighting System

Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.

R&D

Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
Their average industry experience is more than 10 years.

Production

More than 95% of our accessories are made by ourselves.
We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
All our employees have professional training before going to work, and only 100% passed of the employees can be hired.

Our QC department consists of 11 people, all of them are very experienced in this field.

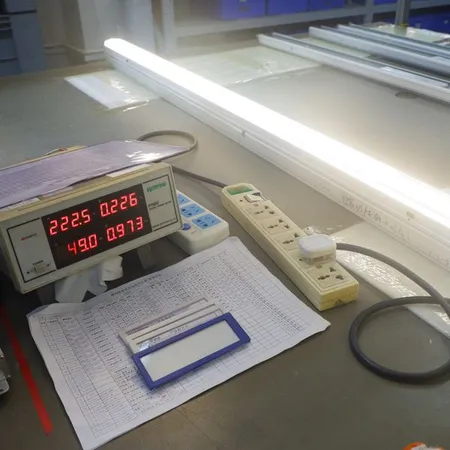

They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.
