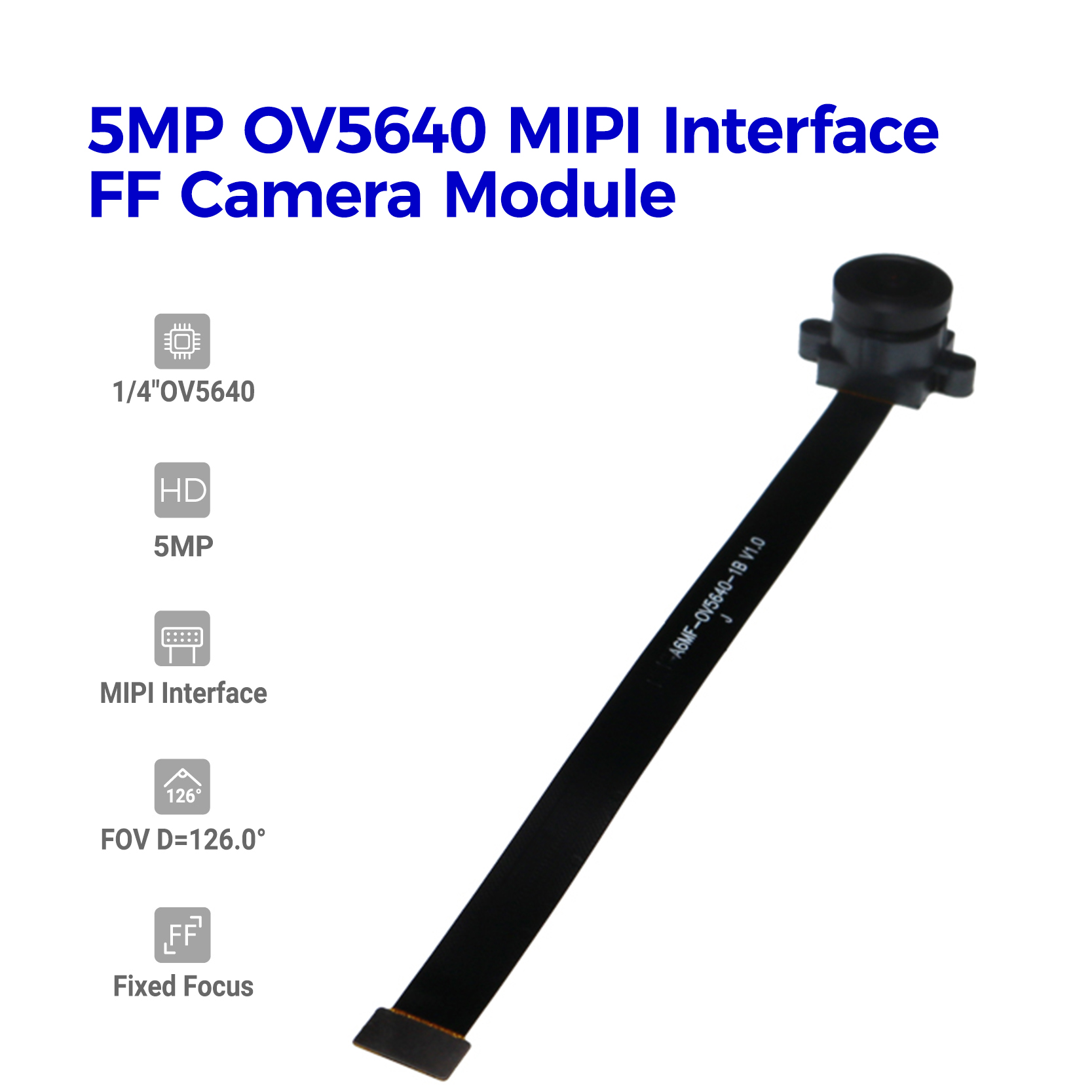

5MP OV5640 MIPI Interface FF Camera Module

美元 $15.20 - 美元 $21.85

美元 $16.00 - 美元 $23.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-A6MF-OV5640-1B V1.0

Image Sensor:

OV5640

View Angle:

126.0°(DFOV)

Focusing:

Fixed Focus

Resolution:

5MP

Module Size:

126.50 x 22.00 mm

Interface:

MIPI

描述

联络供应商

Product Description

HAMPO-A6MF-OV5640-1B V1.0 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5640 CMOS image sensor,which enables 720p HD video at 60 frames per second (fps) and 1080p HD video at 30 fps with complete user control over formatting and output data transfer. The 720p/60 HD video is captured in full field of view (FOV) with 2 x 2 binning, which doubles the sensitivity and improves the signal-to-noise ratio (SNR).

Additionally, a unique post-binning re-sampling filter function removes zigzag artifacts around slant edges and minimizes spatial artifacts to deliver even sharper, crisper color images. To further improve camera performance and user experience, the OV5640 features an internal anti-shake engine for image stabilization, and it supports Scalado™ tagging for faster image preview and zoom

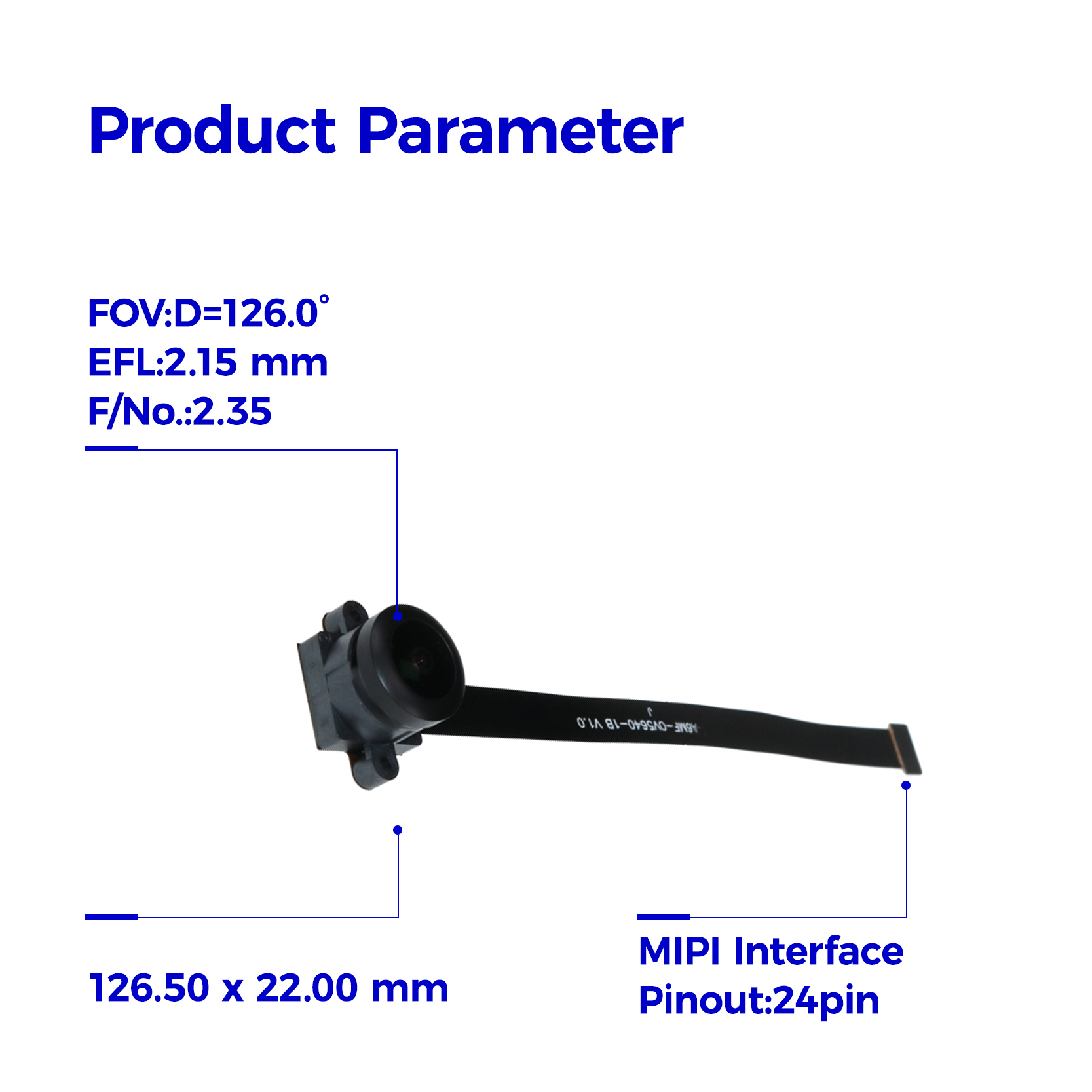

Specification
Camera Module No.
HAMPO-A6MF-OV5640-1B V1.0
Resolution
5MP
Image Sensor
OV5640
Sensor Size
1/4"
Pixel Size
1.4 um x 1.4 um
EFL
2.15 mm
F/No.
2.35
Pixel
2592 x 1944
View Angle
126.0°(DFOV) 111.0°(HFOV) 66.0°(VFOV)
Lens Dimensions
13.00 x 13.00 x 14.02 mm
Module Size
126.50 x 22.00 mm
Focusing
Fixed Focus
Interface
MIPI
 Lens Type
650nm IR Filter Lens
Operating Temperature
-30°C to +70°C
Key Features
active array size: 2592 x 1944
operating: -30°C to 70°C junction temperature
 lens size: 1/4"
 max S/N ratio: 36 dB
 dynamic range: 68 dB @ 8x gain
 maximum image transfer rate:
QSXGA (2592x1944): 15 fps
1080p: 30 fps
1280x960: 45 fps
720p: 60 fps
VGA (640x480): 90 fps
 sensitivity: 600 mV/Lux-sec
 shutter: rolling shutter / frame exposure
 maximum exposure interval: 1964 x tROW
 pixel size: 1.4 µm x 1.4 µm
 dark current: 8 mV/s @ 60°C junction temperature
 image area: 3673.6 µm x 2738.4 µm
 package dimensions: 5985 µm x 5835 µm
Company Profile

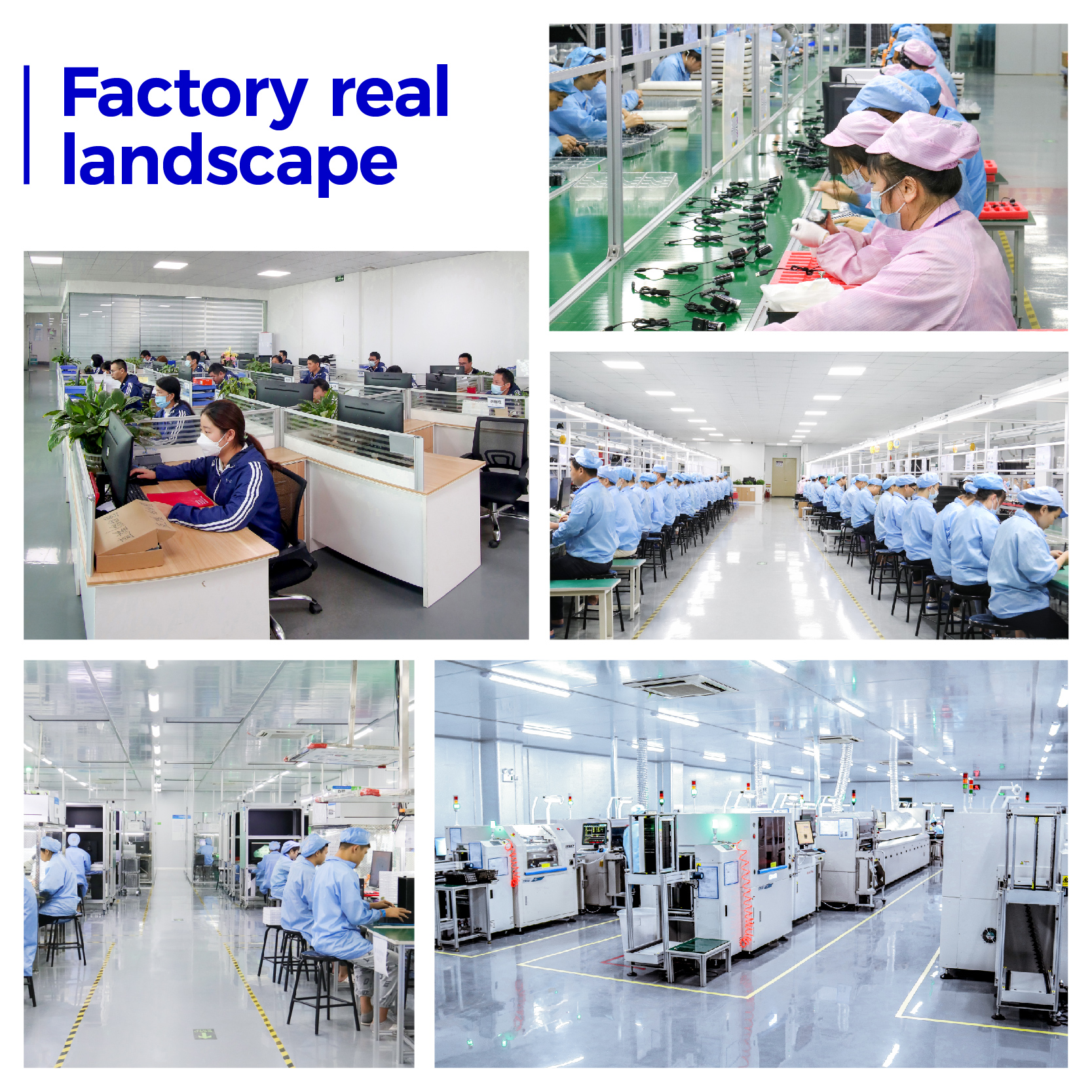

Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
