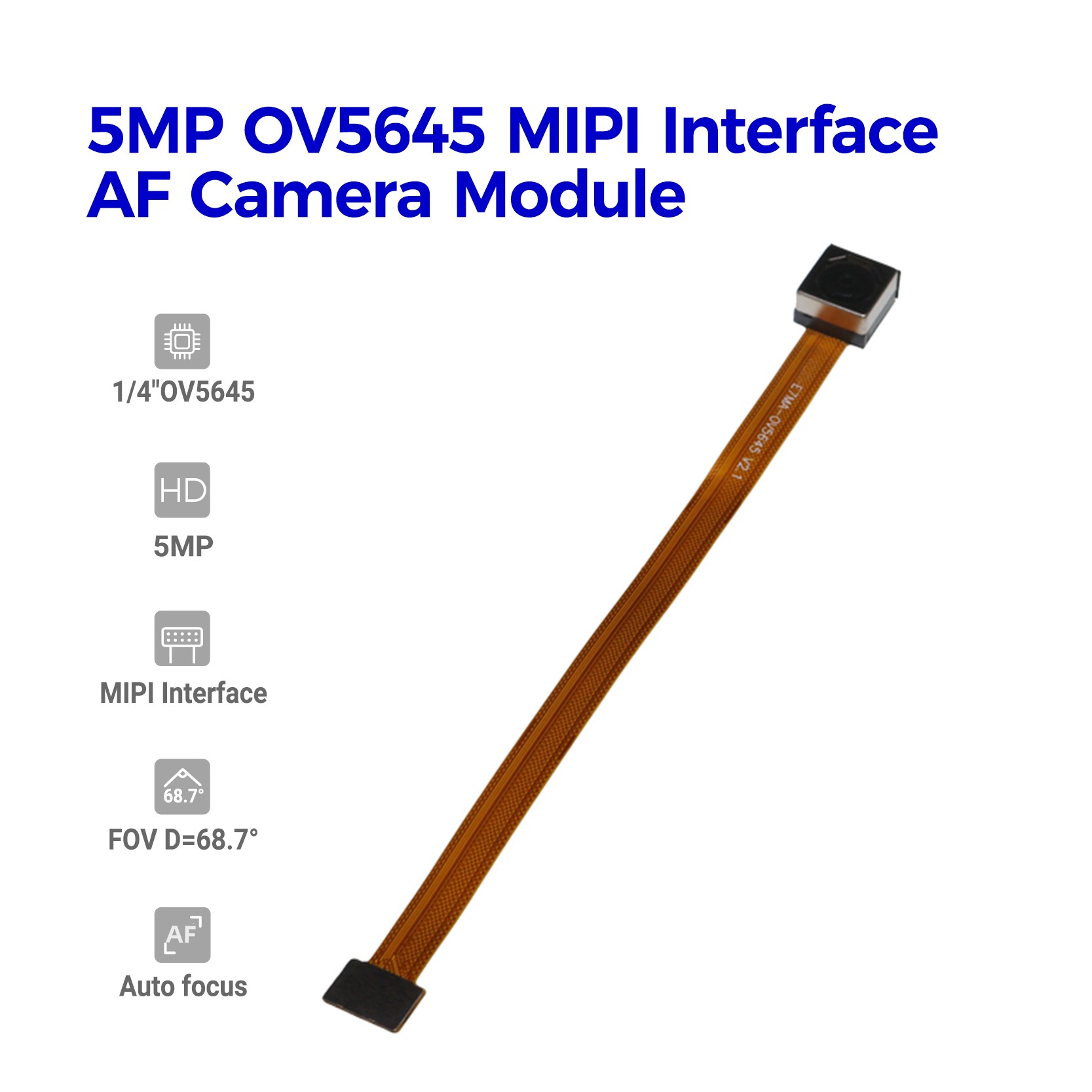

5MP OV5645 MIPI InterfaceAF Camera Module

美元 $13.30 - 美元 $17.10

美元 $14.00 - 美元 $18.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-E7MA-OV5645 V2.1

Image Sensor:

OV5645

View Angle:

68.7°(DFOV)

Focusing:

Resolution:

5MP

Module Size:

100.00 x 8.50 mm

Interface:

MIPI

描述

联络供应商

Product Description

HAMPO-E7MA-OV5645 V2.1 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5645 CMOS image sensor,built on OmniVision's 1.4-micron OmniBSI™ pixel architecture, the OV5645 offers high performance 5-megapixel photography and 720p HD video at 60 frames per second (FPS) and 1080p HD video at 30 FPS with complete user control over formatting and output data transfer.
The sensor's 720p HD video is captured in full field-of-view with 2 x 2 binning, which doubles the sensitivity and improves the signal-to-noise ratio (SNR). A unique post-binning, re-sampling filter function removes zigzag artifacts around slant edges and minimizes spatial artifacts to deliver even sharper, crisper color images.

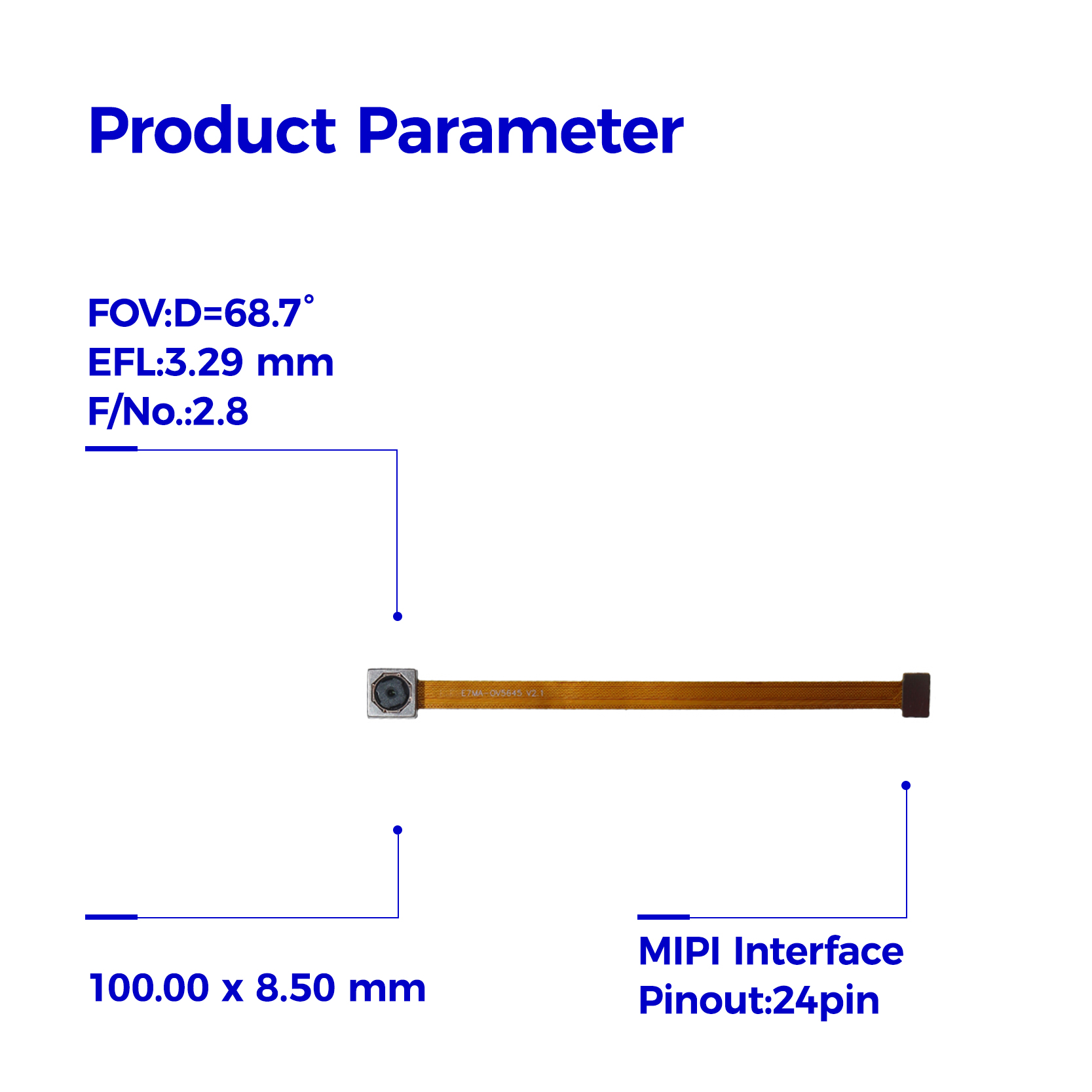

Specification

Camera Module No.	HAMPO-E7MA-OV5645 V2.1
Resolution	5MP
Image Sensor	OV5645
Sensor Size	1/4"
Pixel Size	1.4 um x 1.4 um
EFL	3.29 mm
F/No.	2.8
Pixel	2592 x 1944
View Angle	68.7°(DFOV) 58.1°(HFOV) 45.0°(VFOV)
Lens Dimensions	8.50 x 8.50 x 5.17mm
Module Size	100.00 x 8.50 mm
Focusing	Auto Focus
Interface	MIPI
Lens Type	650nm IR Filter Lens
Operating Temperature	-30°C to +70°C

Key Featuresoptical size of 1/4"
automatic image control functions:
-automaticexposure control (AEC)
-automaticwhite balance (AWB)
-automaticband filter (ABF)
-automatic50/60 Hz luminance detection
-automaticblack level calibration (ABLC)
programmable controls for frame rate,
AEC/AGC 16-zone size/position/weight
control, mirror and flip, cropping,
windowing, and panning
image quality controls: lens correction,
defective pixel canceling
support for output formats: 8-/10-bit raw RGB data
support for video or snapshot operations

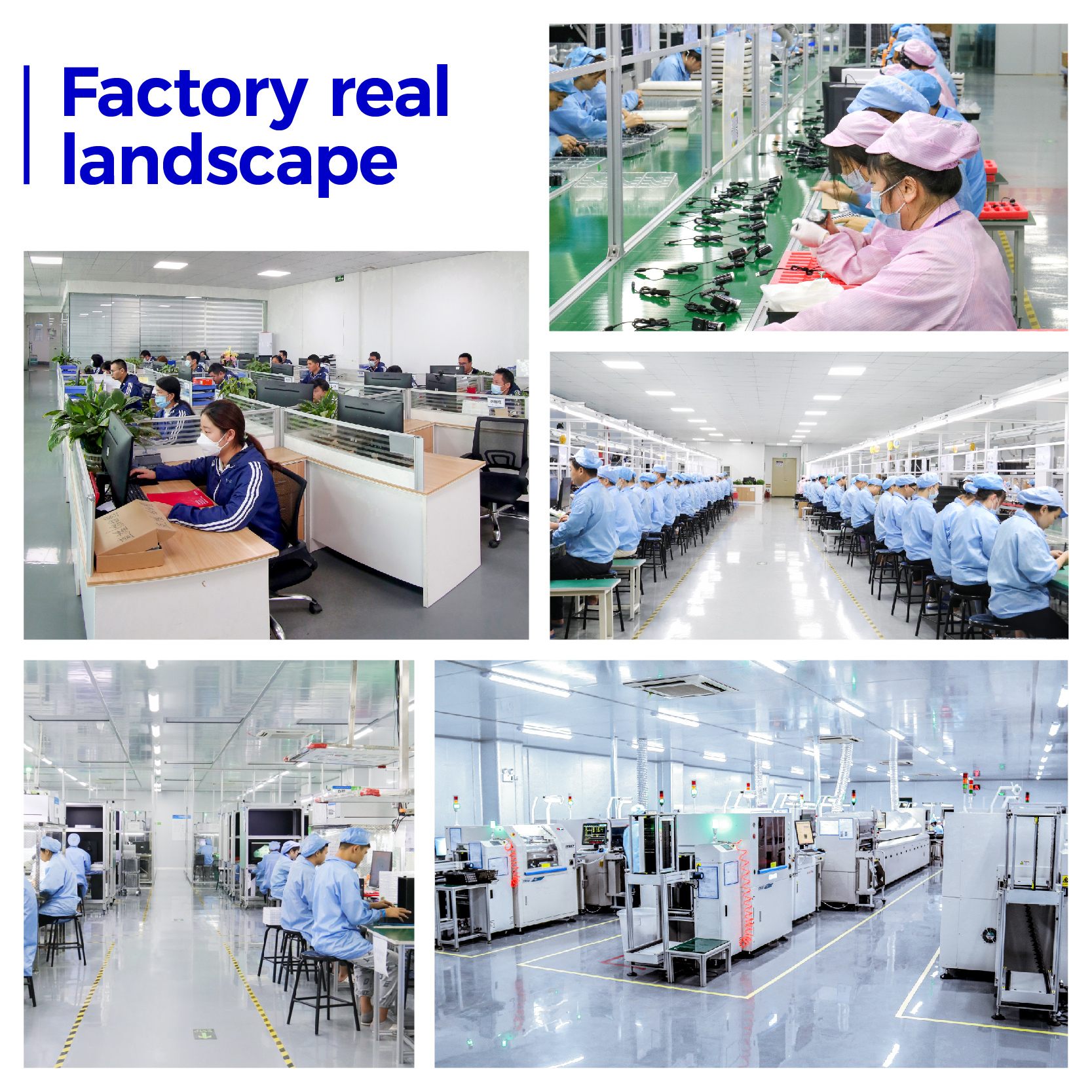

Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
