7'' Digital Wireless Monitor Camera System
重量:
450g
产品型号:
DF-5362461-CUT
品牌名称:
Veise
颜色:
Black
尺寸:
139X100X49mm
港口:
Guangzhou
付款方式:
T/T; L/C in advance.
最低订购数量:
1
认证:
CE, EEC, EMARK, FCC, ISO9001, ROHS
是否可定制:
是
特色:
Wireless
描述
联络供应商
描述

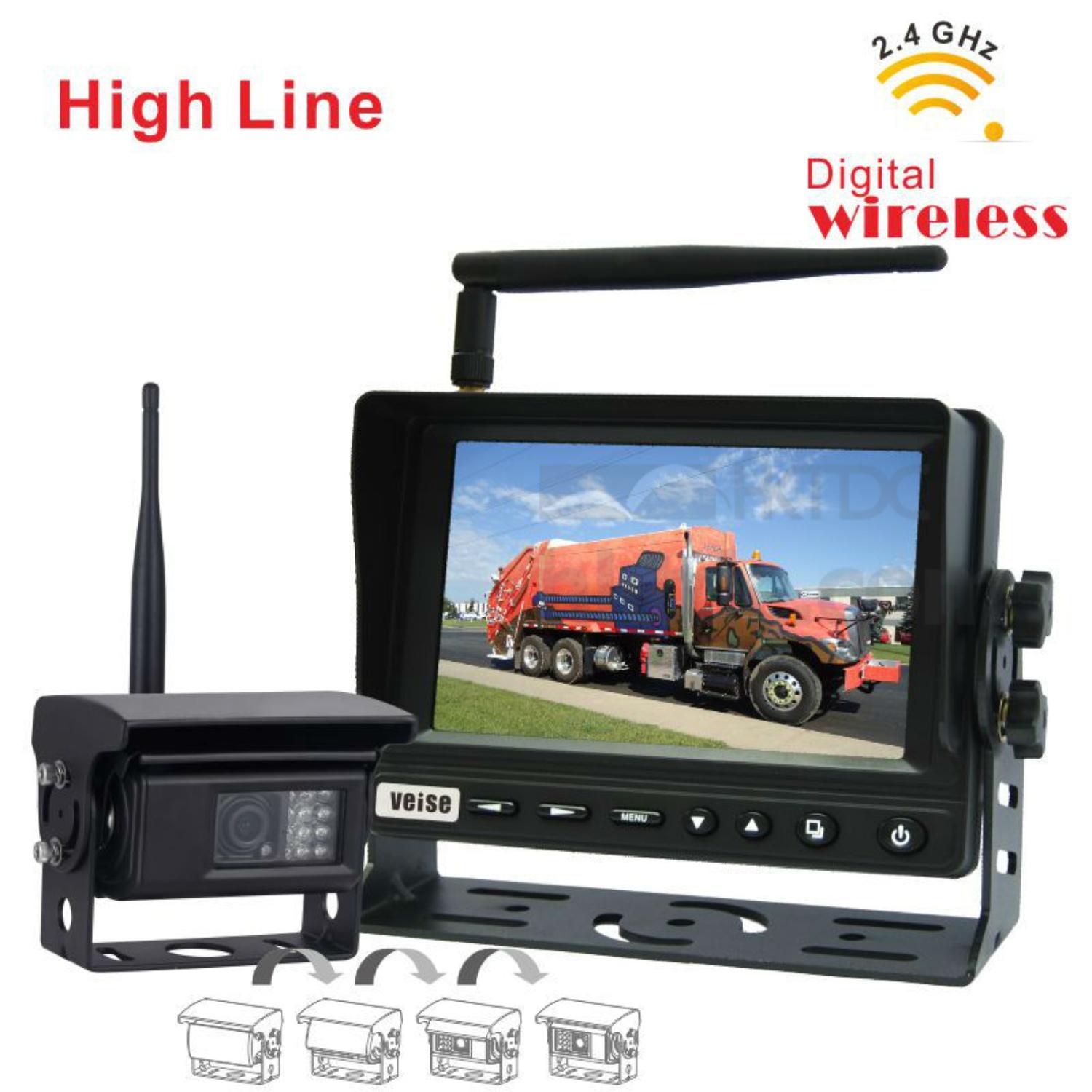

- Digital Wireless Camera Monitor Systems
5"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical menu
Image automatic cycle mode, night mode settings, reversing ruler settings, reversing the priority function is triggered;
Picture Mode sub-screen, two screens
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
DC14~+87V(Td400mS) 5pulses Load Dump，300cd/m2 Brightnes
2.4GHz Digital Wireless auto shutter Camera Aluminum Camera IP69K Waterproof and 10G Vibration, IR LEDs for Night Vision - Digital Wireless Receive Monitor(Model:SP-536)

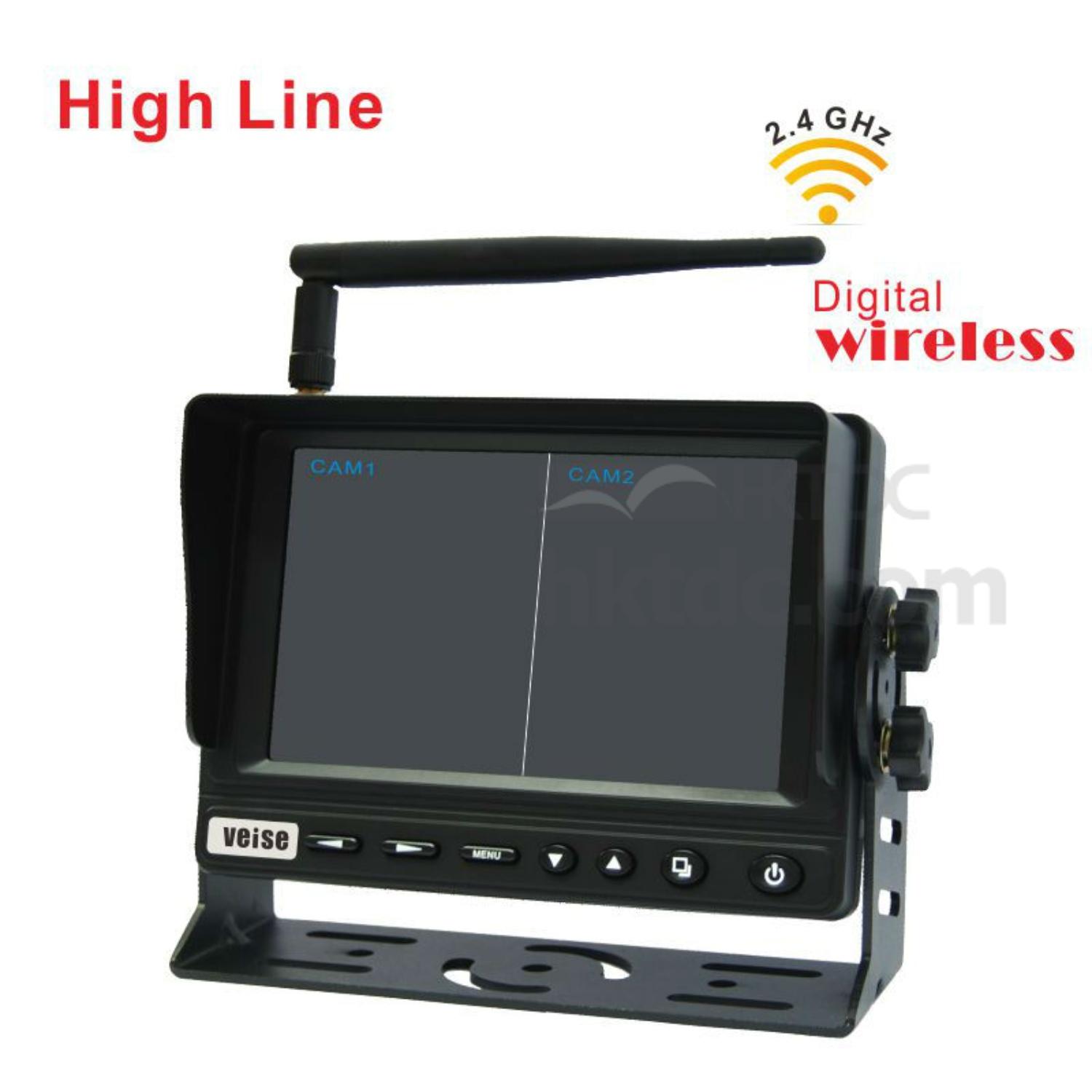

5" Digital Screen TFT LCD Monitor
Built in 2 CH 2.4GHz Digital Wireless Receiver
Operation Frequency:2400 ~ 2483.5MHz
Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE)
Overlapping Hopping Channel:80
Color System:PAL/NTSC
Display Resolution: 800RGB(H) X 480(V) dot
Wide view angle(CR>10):(up/ down): 70/70 (left/right): 50/70
Brightness (cd/m2): 300
Contrast ratio: 500:1
Operating temperature: -20℃ to +70℃
Storage temperature: -30℃ to +80℃
Free Operating Voltage: DC10~32V
External dimensions:(L x W x T) (139X100X49mm)
Weight Approx: 450g

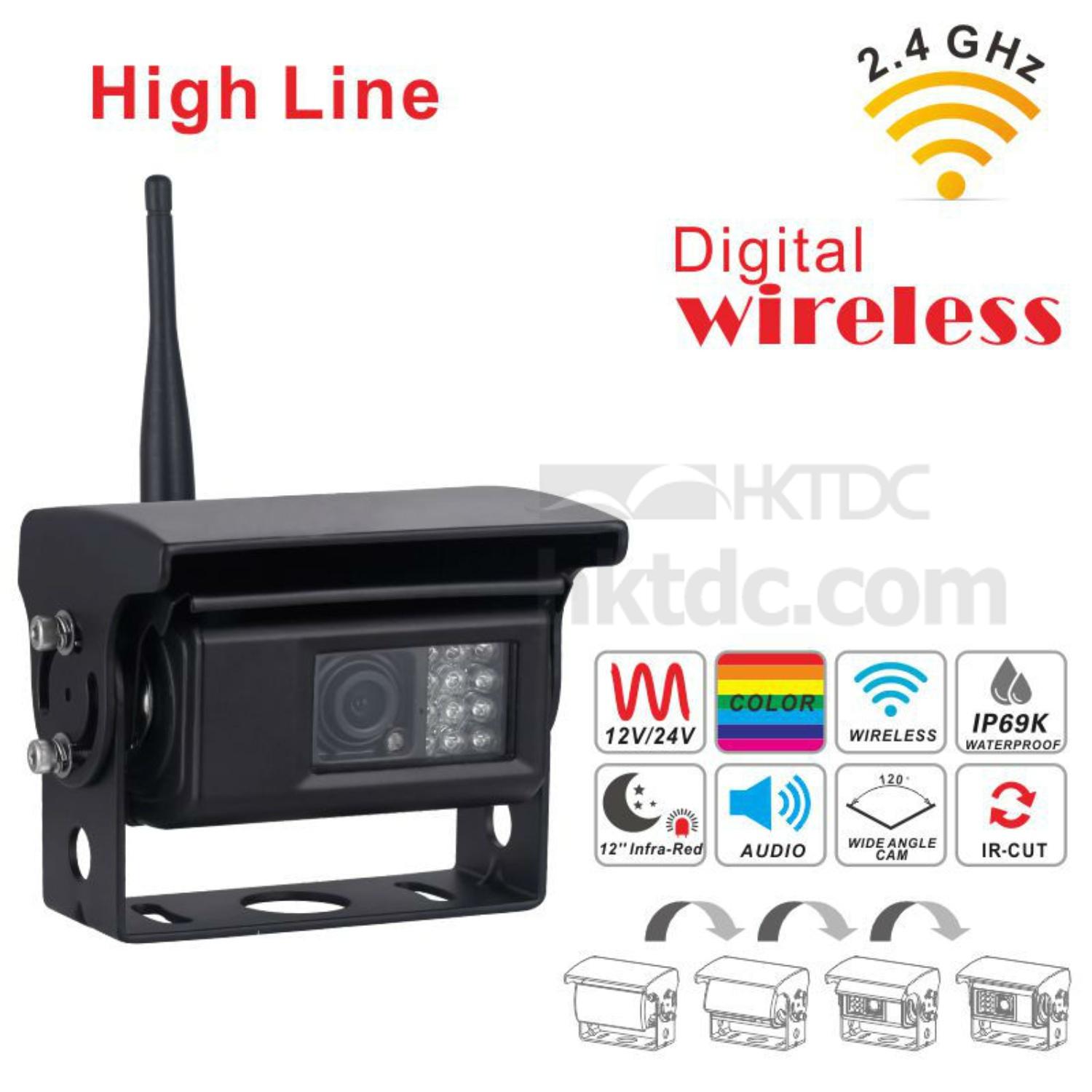

Digital Wireless Waterproof IR auto shutter Camera(MODEL:DF-8098H-SFS-CUT*1)
Image Type: 1/3 inch Color CMOS
Built in 2.4GHz Digital wireless transmitter
Transmission Power：18dBm with Power control
Line of Sight Range:≤100M
Horizontal Resolution:600TV Lines
Effective pixel:NTSC:960(H)X480(V);PAL:960(H)X480(V)
Usable Illumination : 0Lux ( Built in 12pcs IR LED's for Picture Support in the Dark)
IR-CUT: Automatic switch, day and night mode
Free viewing angle: 120°
Waterproof: IP69K
Shockproof: 10G
Free Operating Voltage: DC10-32 Volts
Dimensions: 94(W) x 83(H) x78(D) mm (without mounting)
Weight : 500g
Accessorie
U- Support Bracket、Angle Adjustment Screw、Removable Sun Visor、Electrical Connecting Cable、Antenna*2、User's Manual
