720p SP1405 Sensor Wide Angle USB Camera Module

美元 $13.30 - 美元 $17.10

美元 $14.00 - 美元 $18.00

生产所需时间:

5 日

运送方式:

express delivery

Model Number:

HAMPO 03-1742

Special Features:

Low Power

Resolution:

1280*720

Frame Rate:

30fps

Function:

Wide Angle

Sensor:

CMOS, 1/4" SP1405

UVC:

Free driver,plug and play Focusing: Fixed focus

PCB Sizee:

30mm*22mm

Customized support:

OEM, ODM

Compression Format:

MJPG/YUV

描述

联络供应商

Product Description

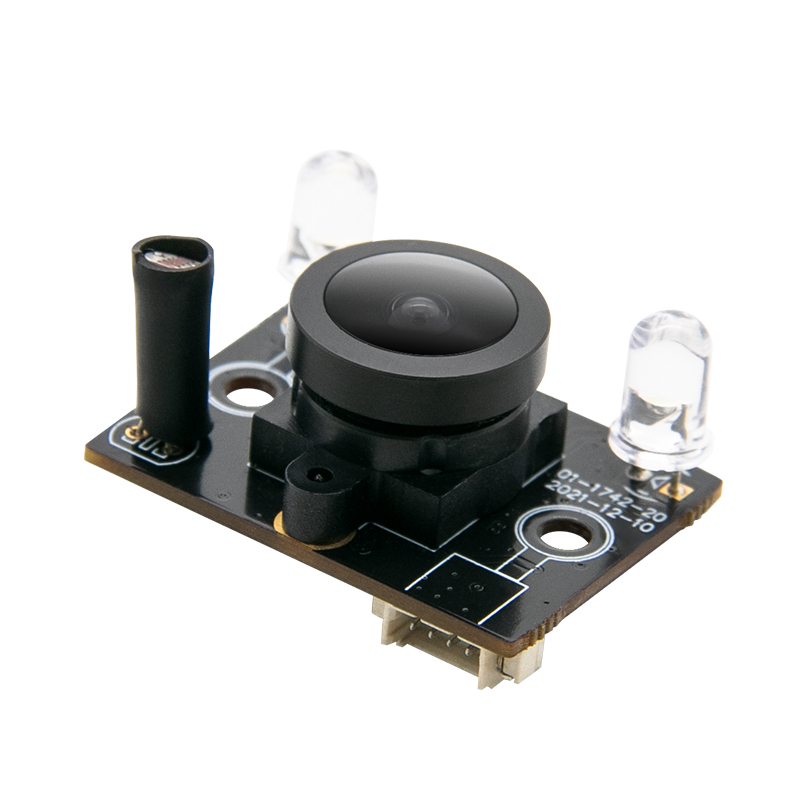

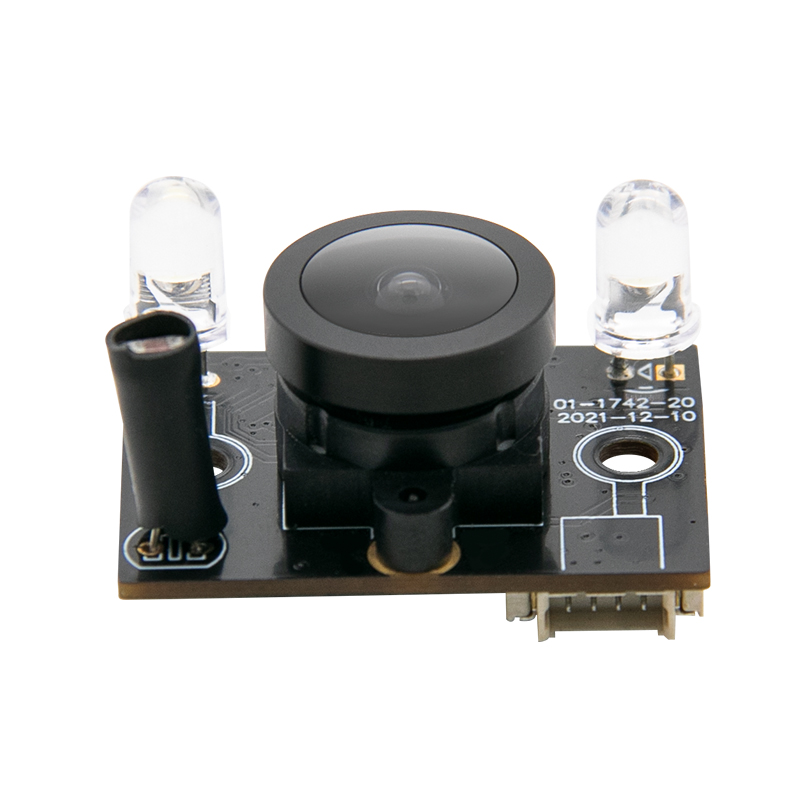

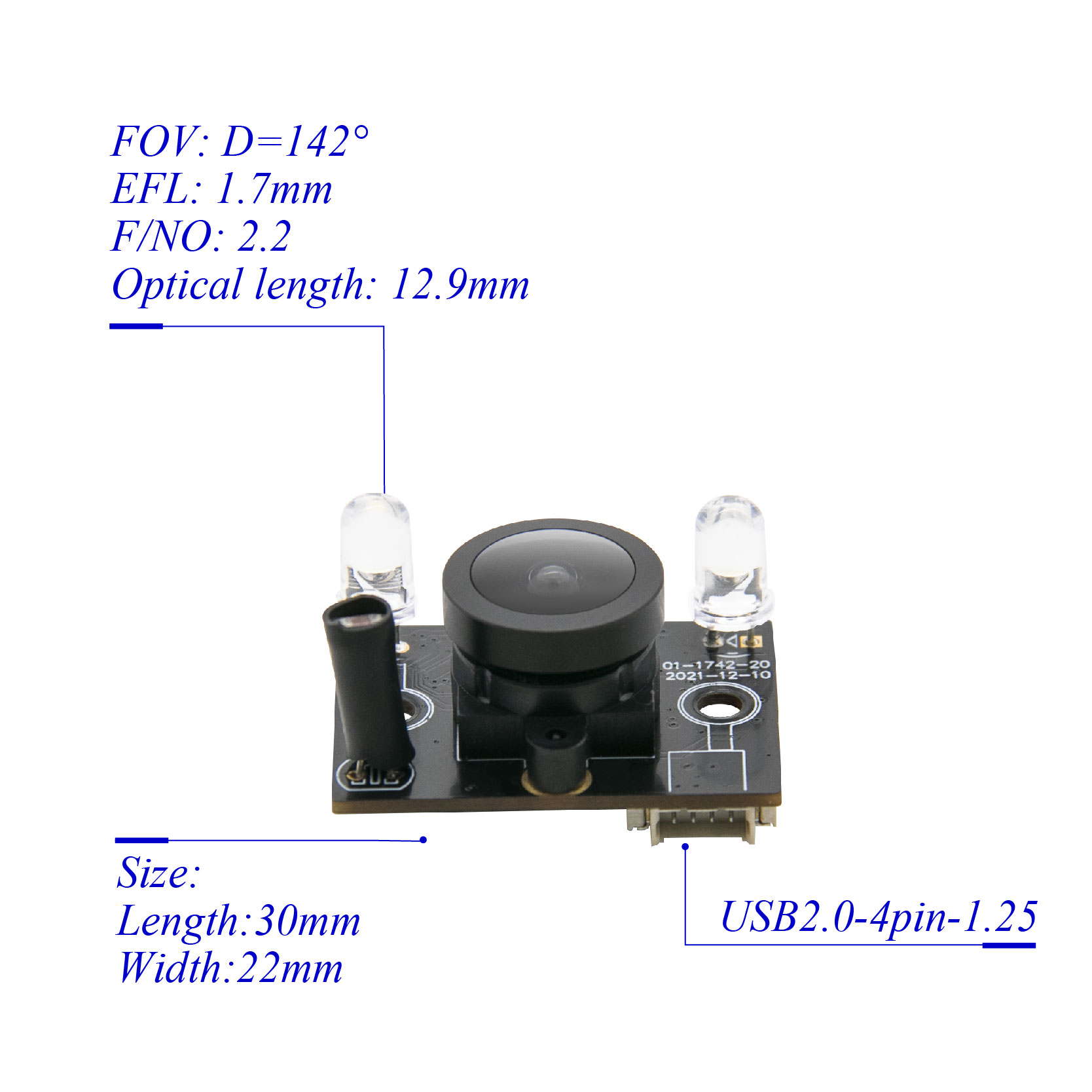

Hampo 003-1742 is a high-quality 720P mini camera module, based on the 1/4" SP1405 CMOS sensor, with an integrated 1280H x 720V pixel array，which has the high and stable image quality. Its USB interface supports USB 2.0 high-speed data transmission and OTG UVC (OTG PROTOCOL). The cost-effective GC1054 sensor can perform all automatic functions (such as automatic white balance, automatic exposure control) to achieve image and video YUY2 and MJPEG stable transmission and compression.  30mm*22mm ultra micro PCB board camera module, suitable for installation in concealed, narrow positions such as video doorbell, advertising machine, all-in-one, laptop and other products. Compatible with Windows 7, 8/10/11, Linux operating systems.

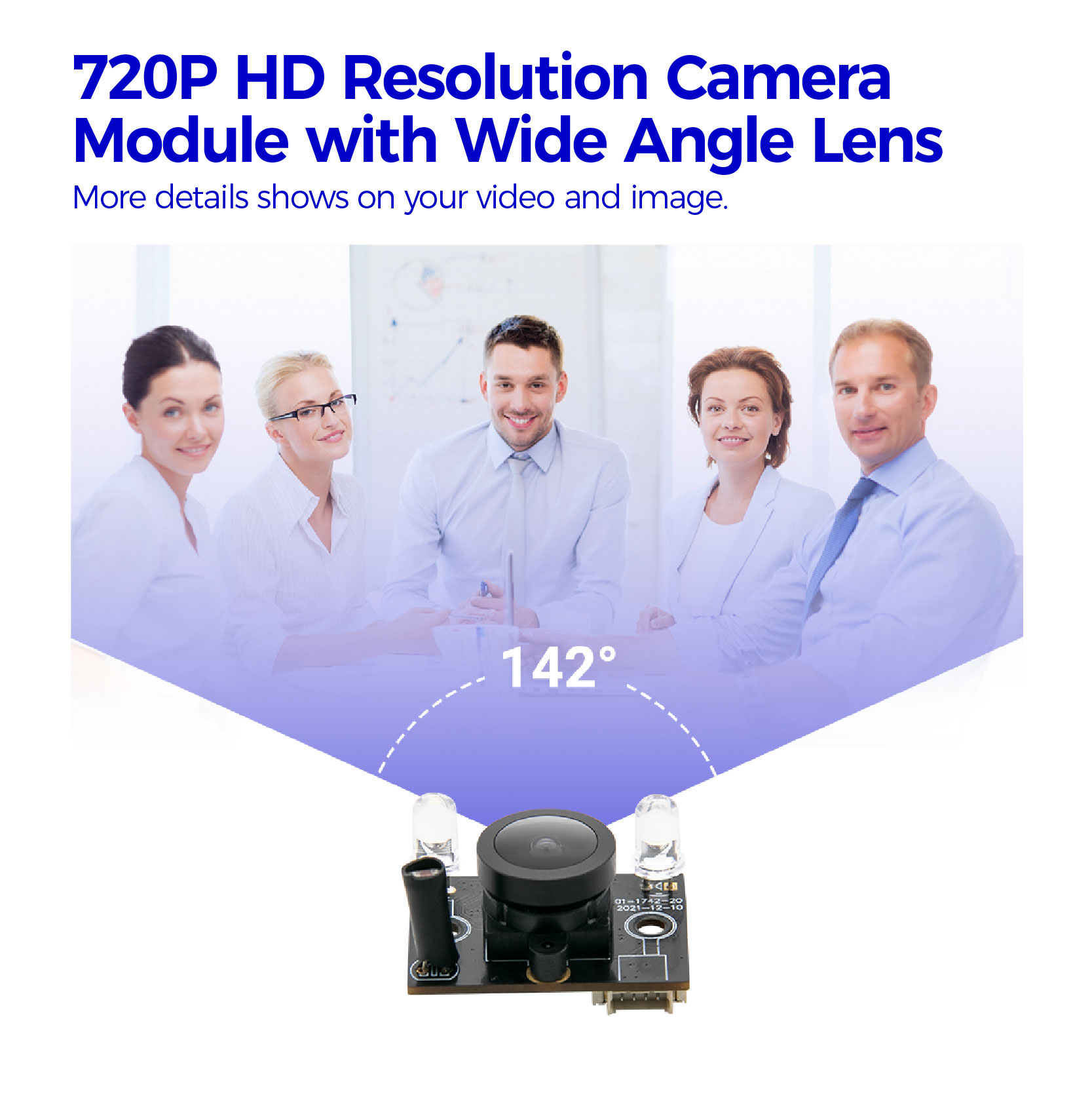

Key FeaturesHigh Cost Efficient: This camera adopts the 1MP SP1405 COMS sensor, which cuts costs and gets decent image quality.                                                  Wide View of Angle: Assembled with a142°（D) 110°(H) ultra wide angle M12 lens.

Frame Rates: MJPG 30fps@1280 x 720/640 x 480/320 x 240; YUY2 10fps@1280 x 720; 30fps@640 x 480/320 x 240.

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

Applications: Highly recommended for the video surveillance system, video conference, video doorbell, smart lock,dashcam, motoring 3D printer and other vision applications.

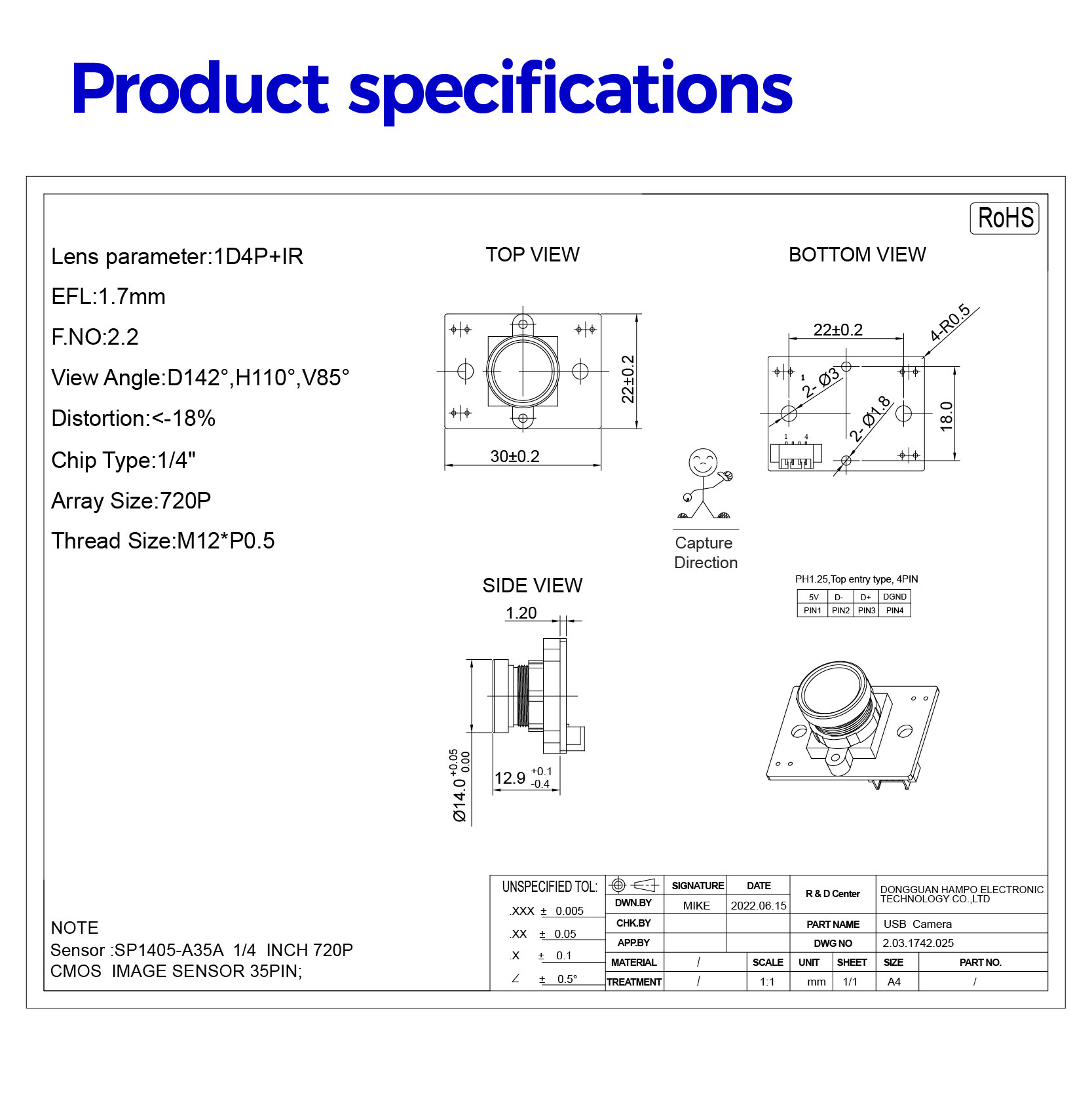

Specification
Camera
Model No.
003-1742
Max Resolution
1280*720P
Sensor
1/4" SP1405
Frame Rate
30fps
Pixel Size
3.0μm*3.0μm
Output Format
YUY2/MJPG
Lens
Focus
Fixed focus
FOV
D=142° H=110°
Lens Mount
M12 * P0.5mm
Power
Working Current
MAX 200mA
Voltage
DC 5V
Physical
Interface
USB2.0
Storage Temperature
-20ºC to +70ºC
PCB Size
30MM*22MM
Cable Length
3.3ft (1M)
TTL
1.7MM
Functionality and Compatibility
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
System Compatibility
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
Applications
Visual Doorbell Charging pile
Smart Lock
Robot
Video surveillance system
Video conference
Motoring 3D printer
Access Control
Sports camera
Car DVR
Security monitor
 Toys
Security system
Industrial and environmental systems
