8-15W, 100-240Vac, Constant current LED Driver in small case
美元 $2.25 - 美元 $2.52
美元 $2.50 - 美元 $2.80
生产所需时间:
7-35 日
运送方式:
By sea, by air, by train, by courier
应用:
LED Luminaires
品牌:
SINOBASE
特性:
Wide range of voltage input 100-240Vac
材料:
Plastic case
光源:
发光二极管照明
电源类型:
交流电
尺寸:
56.5*35.5*23.7MM
型号编号:
SILA.....BG1
重量:
50.4g / 79.5g
Certificate:
CE, LVD, EMC, CB, SAA
Warranty:
5 years
图案:
Yes
是否可订造:
可以
描述
联络供应商
描述

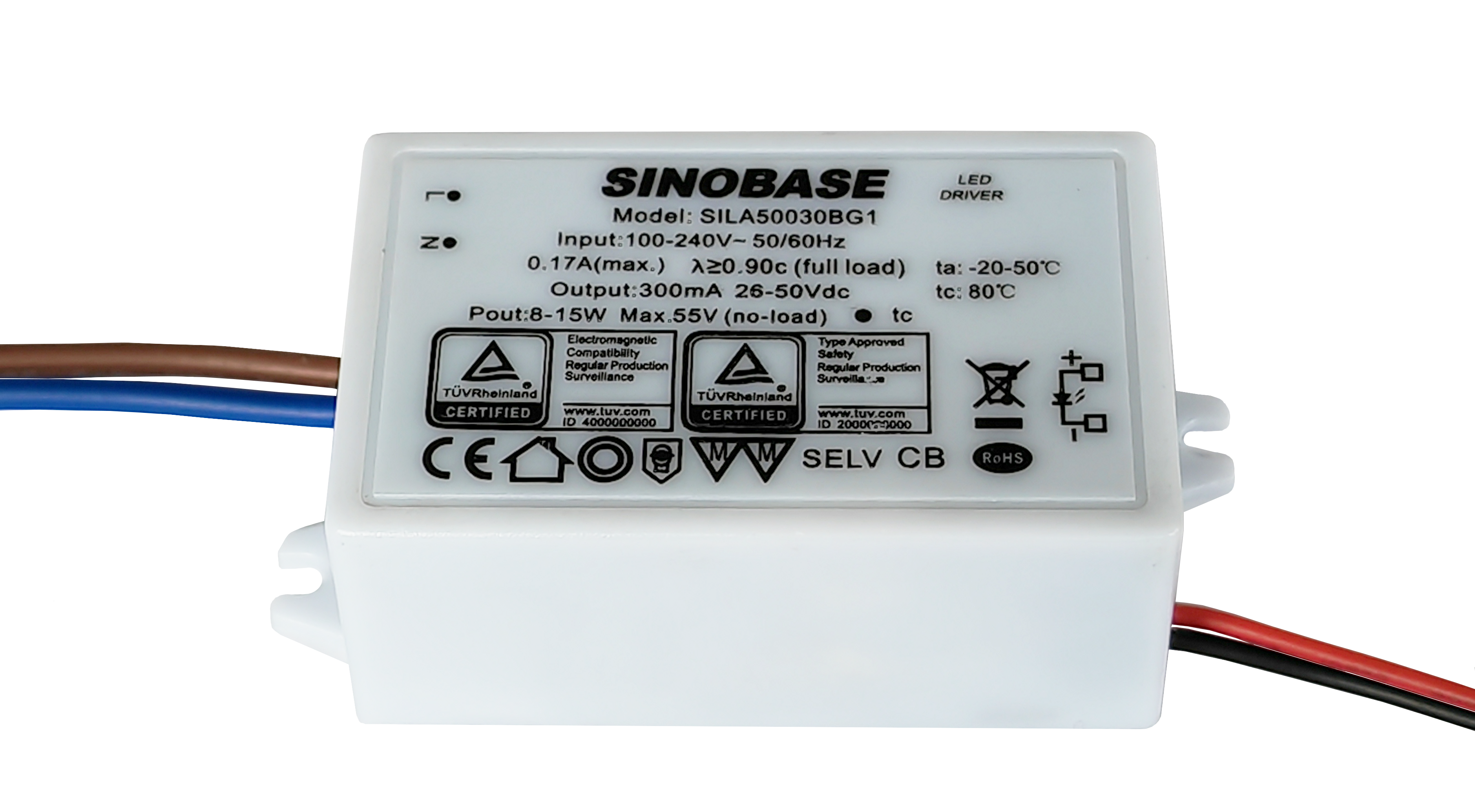

SinoBase small-sized water-proof LED driver with P_out 8-15W, U_input 100-240Vac
With broader input voltage and 50000hrs lifetime, optional for water-proof version
Features:
· Design in small size to fit your lamp；
· Easy for installation with cables at both ends；
· Constant current mode；
· Output SELV protection, short circiut, over current and over voltage protection；
· Extremely high precision output current；
· A wide range of input voltage 100-240Vac;
Specification：
| Power | Model | U_in(Vac) | U_out(Vdc) | Rated I_out (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
8-15W | SILA60025BG1 | 100-240V～50/60Hz | 32-60 | 0.25 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA50030BG1 | 100-240V～50/60Hz | 26-50 | 0.3 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA43035BG1 | 100-240V～50/60Hz | 22-43 | 0.35 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA38040BG1 | 100-240V～50/60Hz | 20-38 | 0.4 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA33045BG1 | 100-240V～50/60Hz | 17-33 | 0.45 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA30050BG1 | 100-240V～50/60Hz | 16-30 | 0.5 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA27055BG1 | 100-240V～50/60Hz | 14-27 | 0.55 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA25060BG1 | 100-240V～50/60Hz | 13-25 | 0.6 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA23065BG1 | 100-240V～50/60Hz | 12-23 | 0.65 | -20-50 | 80 | Max.15 | 69*35*23.5 |
8-15W | SILA22070BG1 | 100-240V～50/60Hz | 11-22 | 0.7 | -20-50 | 80 | Max.15 | 69*35*23.5 |
P.S.:
* The certified current step is 50mA, contact us for the specs outside of above tables.
* Optional for glue potting or not as per you demand.
Certification： TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：
Design for all applicable LED luminaries, such as wall lamp, garden lamp, recessed light, bollards and other available LED luminaries, etc...
