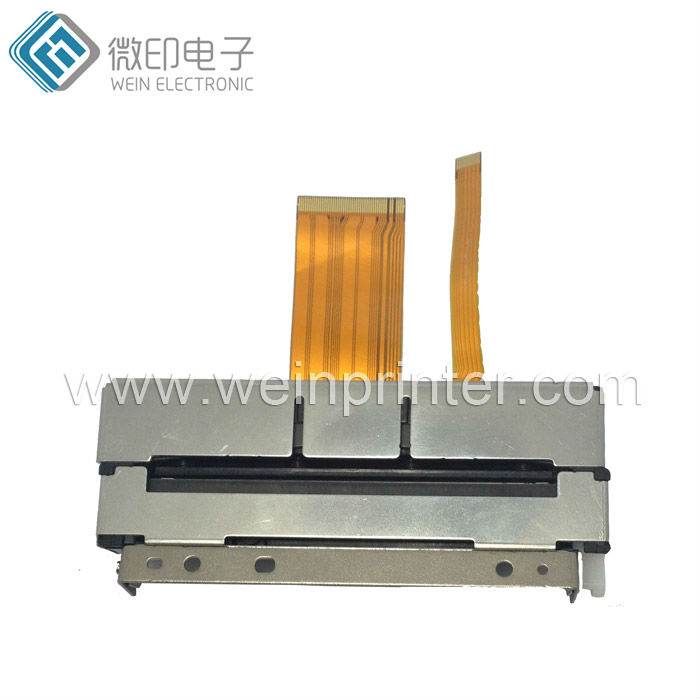

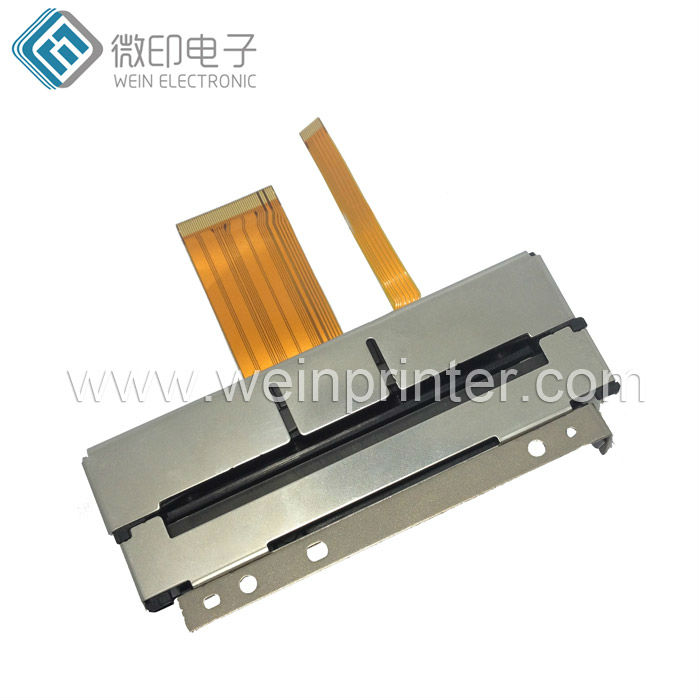

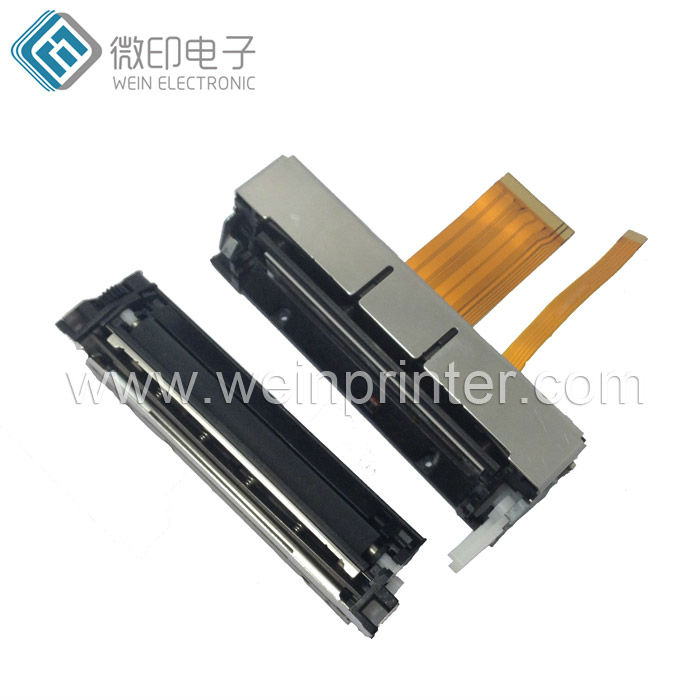

Model : TMP307C (Seiko LTPF347 compatible)

Characters:
1. Compact and light
The printer realizes reduction in size and weight by the printer integrated the auto-cutter. Dimensions: 105.4mm (length) * 43.9mm (width) * 27.6mm (height).

2. Printing with High resolution
A high-density printer head of 8 dots/mm makes the printing clear and precise.

3. High speed printing
According to driving power and sensitivity of thermal paper, setting different printing speeds are required. Max printing speed is 170 mm/ sec.

4. Easy paper loading
Detachable rubber roller structure makes the paper loading easier.

5. Low noise
Thermal line dot printing is used to guarantee low-noise printing.

6. Maintenance free
No cleaning and no maintenance required.

7. High reliability auto-cutter
The original platen block positioning structure can assure the certain cutting performance constantly.

Specifications:

• Printing Method: Thermal dot line printing
• Number of Dots: 576 dots/line
• Simultaneously activated dots: 288 dots
• Resolution: 8 dots/mm (203dpi))
• Printing Speed (max): 170mm/s
• Printing Width: 72mm
• Paper Width: 80mm
• Paper Feed Pitch: 0.0625mm
• Paper Feed Force: 0.98N (100gf) or more
• Paper Hold Force: 0.98N (100gf) or more
• Paper Loading: Easy paper loading
• Cutting Method: Slide cutting
• Cutting Resistance: 700,000 cuts or more
• Printer Head Life: More than 50km
• Pulse Activation: 110M pulse
• Detection Head Temperature: Thermistor
• Platen Position Detection: Mechanical switch
• Paper End /Cutter Home Position: Photo interrupter
• Operating Temperature: 0°C~ 50°C
• Storage Temperature: - 20°C~ 60°C
• Operating Humidity: 20~ 85% RH
• Storage Humidity: 5~ 95% RH
• Physical Characteristics: Weight 58g
• Dimension(L*W*H): 105.4 x 43.9 x 27.6 mm
