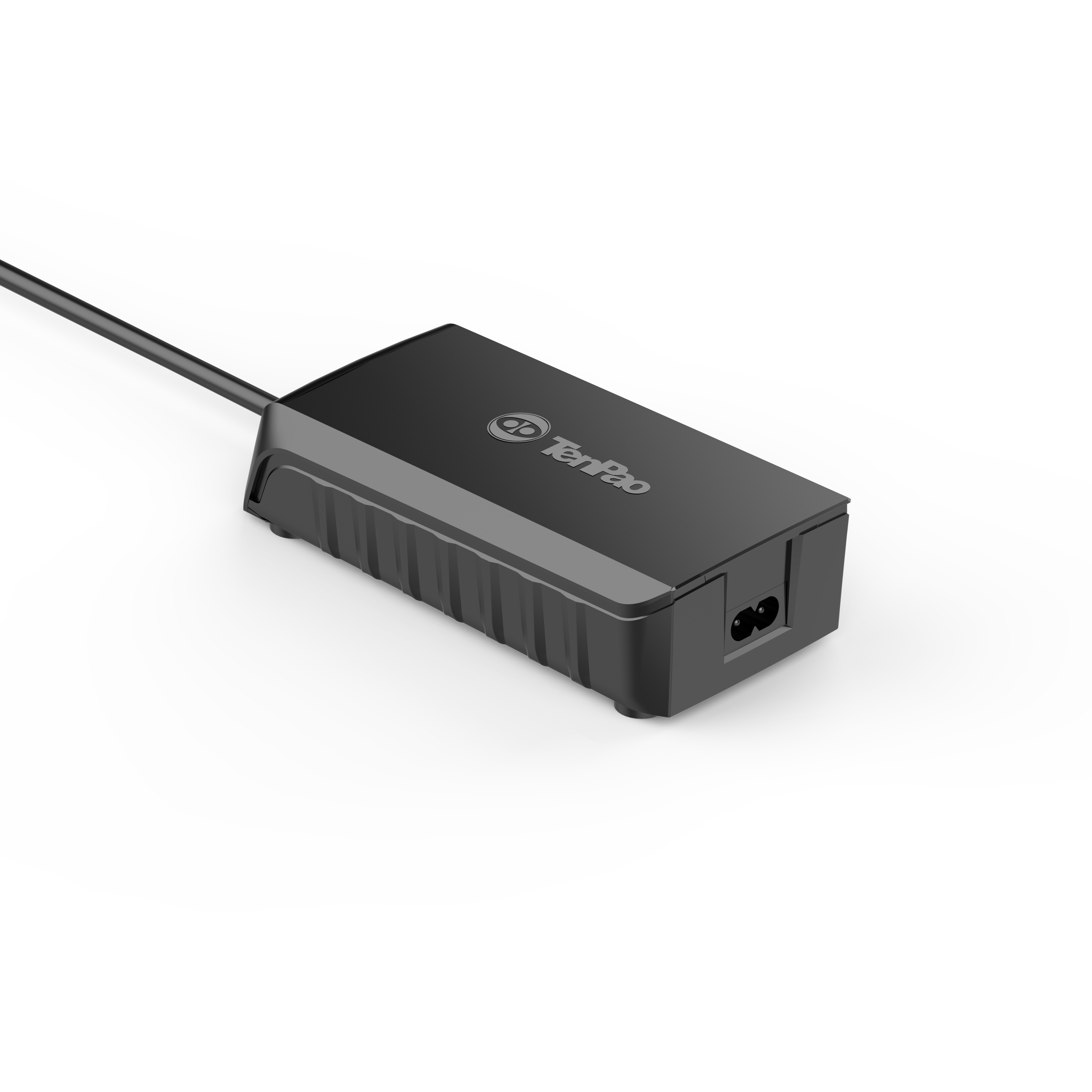

84W Smart Battery Charger

天宝国际兴业有限公司

查询

比较及批量查询

品牌:

tenpao

型号编号:

84W Smart Battery Charger

描述

联络供应商

Product introduction：

Middle protection series smart charger adopts fixed AC line design, built-in soft switch and digital communication technology, can quickly respond to control instructions, excellent performance in battery adaptation, can better match the battery charging curve, to achieve a safe and reliable effect.

Main feature：

Intelligent and efficient/Good heat dissipation/Small volume/Easy to carry/Wide range voltage/Flexible upgrade/Digital communication/IPx3 Protection

	84W	unit
AC Input
Input voltage range	90-264	Vac
AC current harmonics THD	IEC61000-3-2	%
Power factor	N/A
Efficiency	> 88 at full load	%
Max input current	1.6	Aac
DC output
Output rated voltage	42	Vdc
Output voltage range	15-42	Vdc
Charging current accuracy	≤10	mVp-p
Ripple	≤300	mAp-p
Max charging current	2	A
Communication method	UART/User define
Dimension	L160W78H40	mm
