    8MP IMX179 Fixed Focus Auto Focus USB CameraModule
    分享此页面
    美元 $20.90 - 美元 $24.70
    美元 $22.00 - 美元 $26.00
    生产所需时间:
    5 日
    运送方式:
    express delivery
    型号编号:
    003-0798
    应用:
    Windows XP(SP2,SP3)/Vista/7/8/10/11, Linux or OS with UVC driver.
    Sensor Size:
    1/3.2"
    Frame rate:
    30fps
    FOV:
    75°
    Function:
    Abnormal sound detection, Built-in Mic, NIGHT VISION
    Focusing:
    Fixed Focus
    Resolution:
    3264*2448
    Customised:
    Yes
    Size:
    38mm*38mm
    描述
    联络供应商
    描述
    Product Description

    Hampo 003-0798 camera is a 8MP camera module supply crisp image and crystal clear video.High quality, stream media and record vivid, and providing incredible capture of clear images. This camera with high definition 3264*2448P and lower color reproduction deviation produce sharp image and accurate information.Widely application on document scanner, car and ship control, face matching, OCR components, all-in-one machine, advertising machines, automatic vending machine,industrial&medical equipment,robot project,teaching system,automobile data recorder,endoscope,etc.

    Key Features
    More than HD: This camera adopts 8MP IMX179 sensor for sharp image and accurate color reproduction.

    Capture Video with Audio: High frame rates, MJPG 15fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480.

    High Quality of Image/Video: The camera with high definition 3264*2448P and lower color reproduction deviation produce sharp image and accurate information.

    Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

    FF/AF could be optioned focusing lens:Customers could option fixed focus or auto focus lens as need.

    Applications: This tiny 38mmx38mm, compatible with 32mm x 32mm camera board can be installed in most narrow position for a home surveillance system, monitoring 3D Printer, object recognition and tracking or other machine vision,document camera, kiosk,advertisement machine etc. application.

    Note: There is a lens shading problem after changing the lens, so we don’t recommend changing the lens.

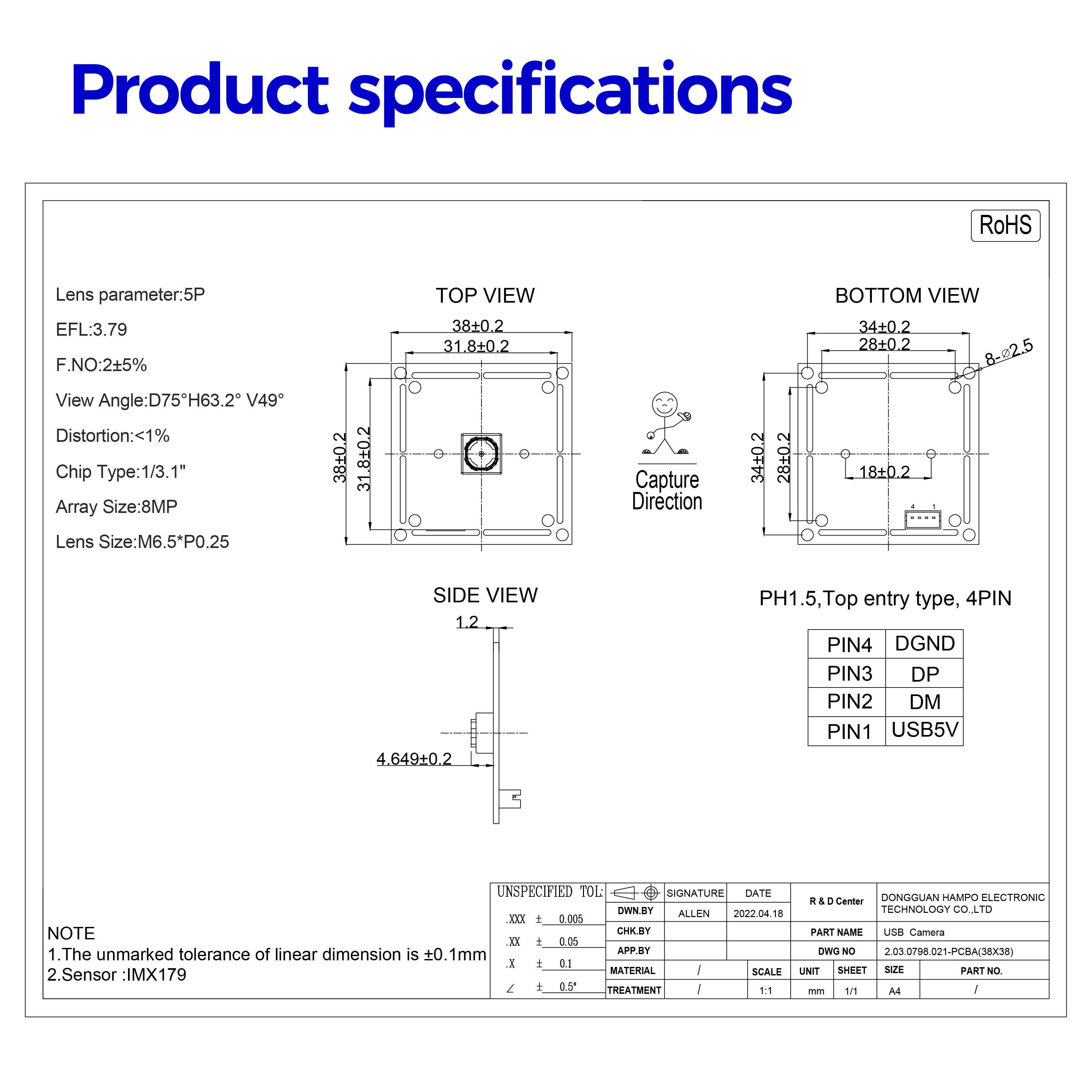

    Specification
    Camera
    Model NO.
    003-0798
    Sensor
    1/3.2" IMX179
    Max Resolution
    3264*2448
    Frame Rate
    15fps
    Output Format
    Mjpg/Yuv
    Lens
    Field of View (FOV)
     D=75 degree, H=63.2 degree
    Lens Mount
    M6.5*P0.25mm
    Focusing Range
    3.3ft (1M) to infinity
    TTL
    15.29MM
    Power
    Power Supply
    USB powered 5V
    Working Current
    MAX 200mA
    Physical
    PCB Size
    32*32MM/38*38MM
    Operating Temp
    -4°F~158°F (-20°C~+70°C)
    Cable Length
    3.3ft (1M),could be optioned
    Functionality and Compatibility
    Adjustable paramete
    Exposure/ White balance
    System Compatibility
    Win7/8/10, Linux, Mac, and OS with UVC driver
