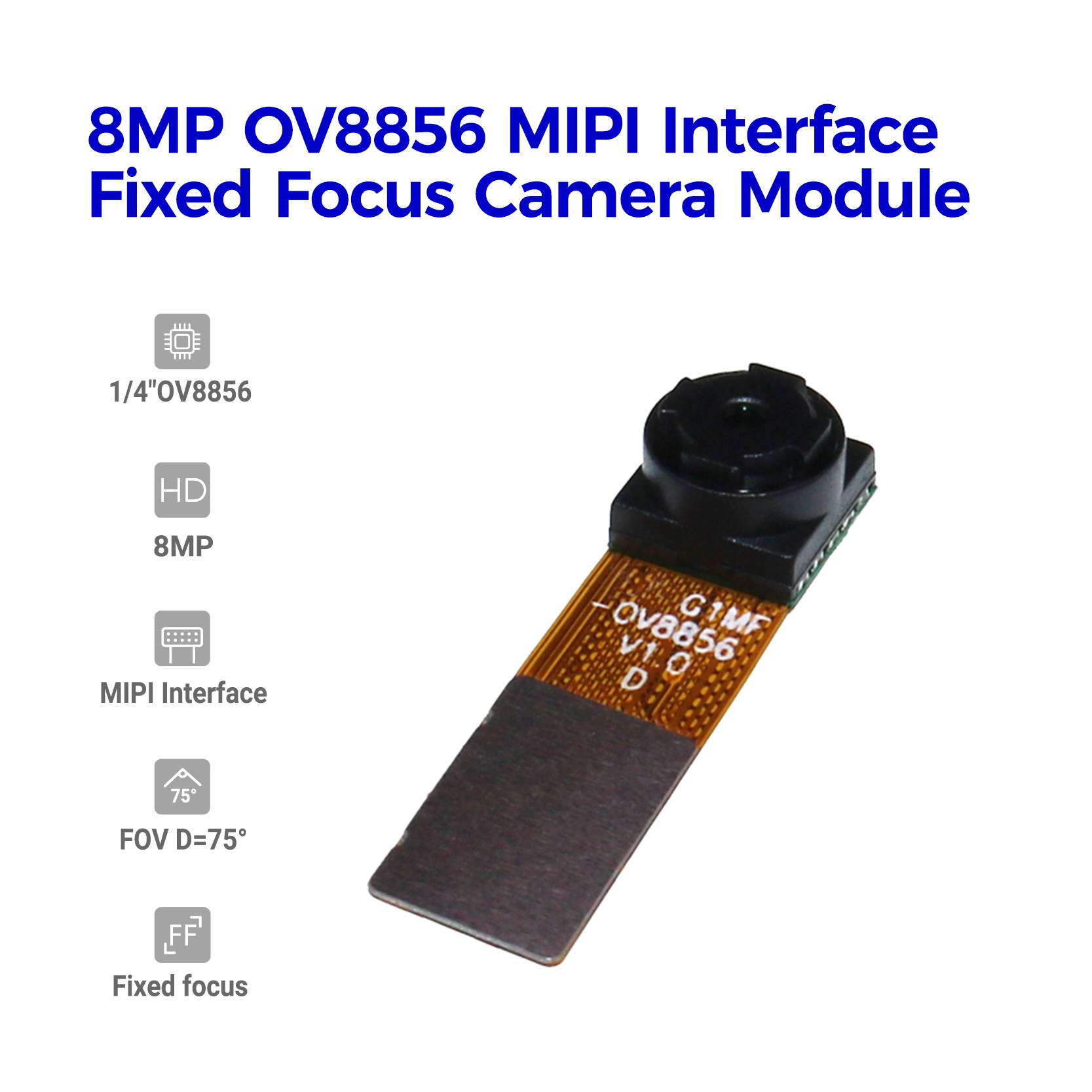

8MP OV8856 MIPI Interface Fixed Focus Camera Module

美元 $20.90 - 美元 $24.70

美元 $22.00 - 美元 $26.00

生产所需时间:

7 日

运送方式:

express delivery

Model Number:

HAMPO-G1MF-OV8856 V1.0

Image Sensor:

OV8856

View Angle:

75.0°(DFOV)

Focusing:

Resolution:

8MP

Module Size:

23.00 x 6.50 mm

Interface:

MIPI

描述

联络供应商

Product Description

HAMPO-G1MF-OV8856 V1.0 is a 8Megapixel Mipi interface camera module, adopting 1/4-inch OV8856 image sensor leverages OmniVision's PureCel pixel architecture to capture full-resolution 8-megapixel images and video at 30 frames per second (fps), and 1080p high-definition (HD) video at 60 fps. The power-efficient OV8856 sensor also supports interlaced high dynamic range (iHDR) for clear images and video in high- and low-light conditions. Using a high speed four-lane MIPI interface, the OV8856 can output full-resolution, 8-megapixel 30 fps video over two MIPI lanes without requiring any data compression.

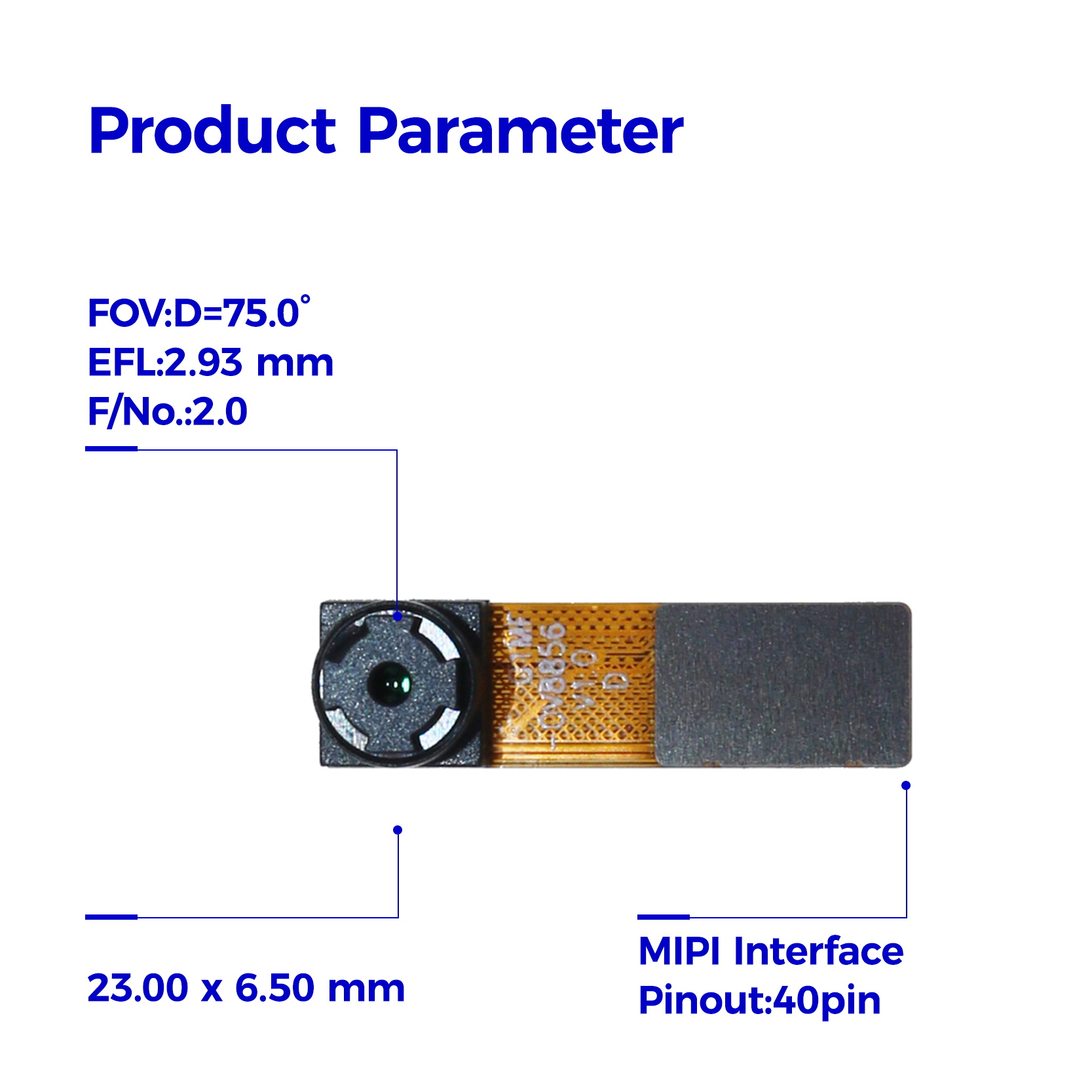

Specification

Camera Module No.	HAMPO-G1MF-OV8856 V1.0
Resolution	8MP
Image Sensor	OV8856
Sensor Size	1/4"
Pixel Size	1.12 um x 1.12 um
EFL	2.93 mm
F/No.	2.0
Pixel	3264 x 2448
View Angle	75.0°(DFOV) 62.8°(HFOV) 49.3°(VFOV)
Lens Dimensions	6.50 x 6.50 x 4.62 mm
Module Size	23.00 x 6.50 mm
Focusing	Fixed Focus
Interface	MIPI
Auto Focus VCM Driver IC	None
Lens Type	650nm IR Cut
Operating Temperature	-30°C to +85°C

Key Features1.12 µm x 1.12 µm pixel
optical size of 1/4"
32.9° CRA for <5 mm Z-height
programmable controls for:
- frame rate
- mirror and flip
- cropping
- windowing
supports images sizes:
- 8MP (4:3, 3264x2448)
- 8MP (16:9, 3264x1836)
- EIS 1080p (2112x1188)
- 1080p (1920x1080)
- EIS 720p (1408x792), and more
8MP at 30 fps (720 Mbps/4-lane
or 1.44 Gbps/2-lane)
Company Profile

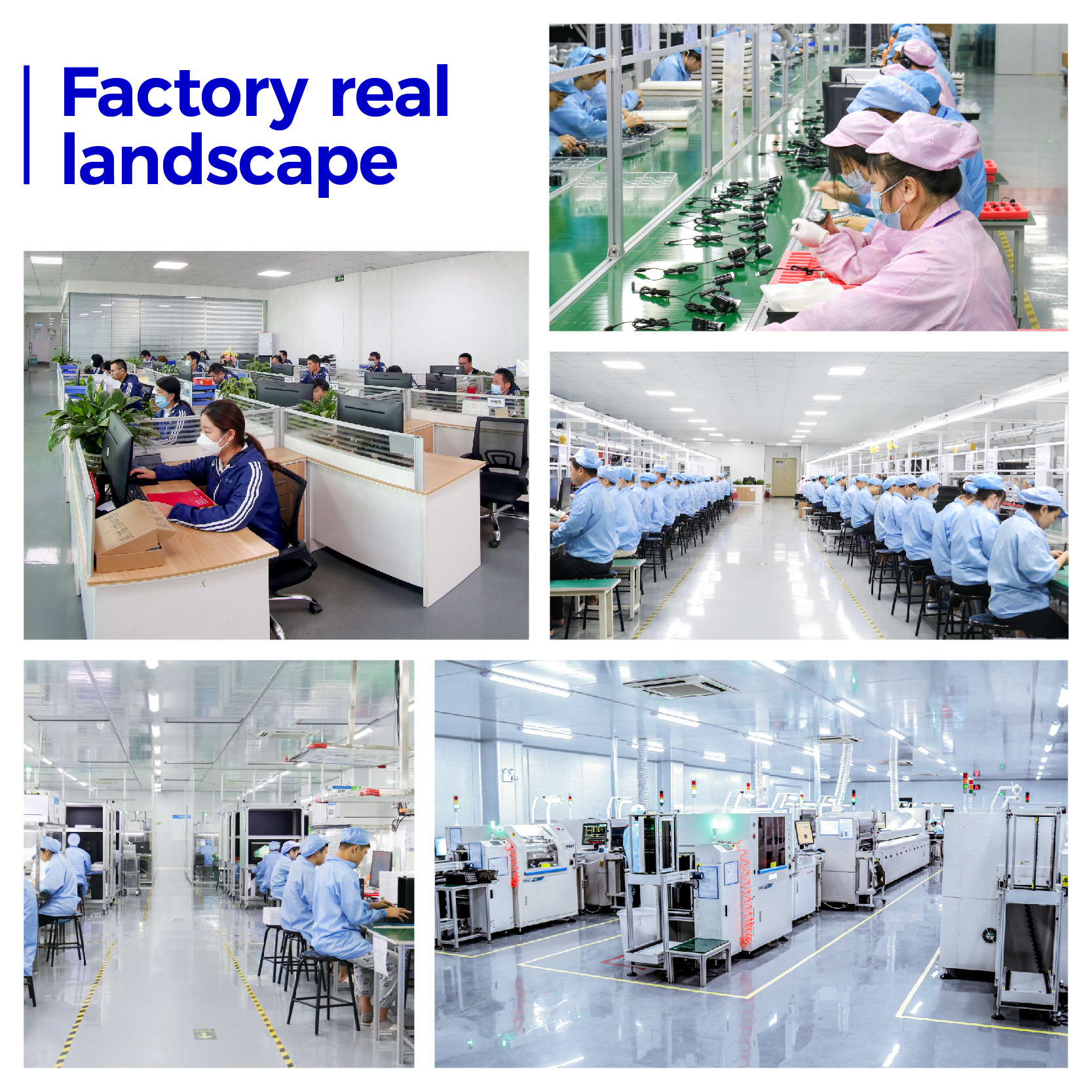

Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
