8MP S5K3H7 Auto Focus Mini Laptop USB Camera Module

美元 $18.00 - 美元 $23.00

生产所需时间:

7 日

运送方式:

FOB SZ

型号编号:

003-1542

尺寸:

62mm*9mm

Sensor:

S5K3H7

FOV:

D=117.3°

Focusing:

Resolution:

3264*2448

描述

联络供应商

Product Description

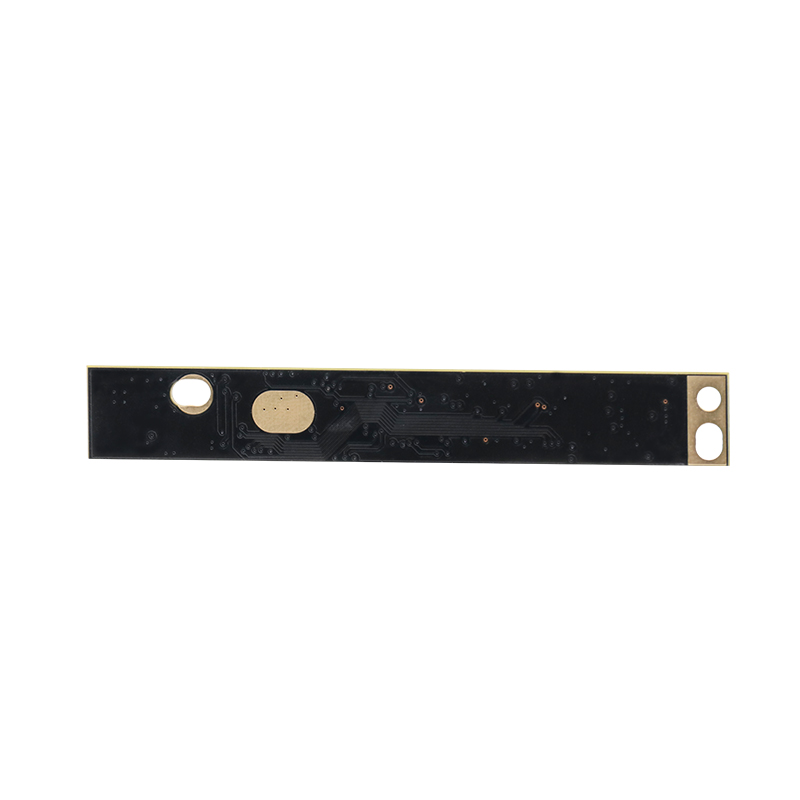

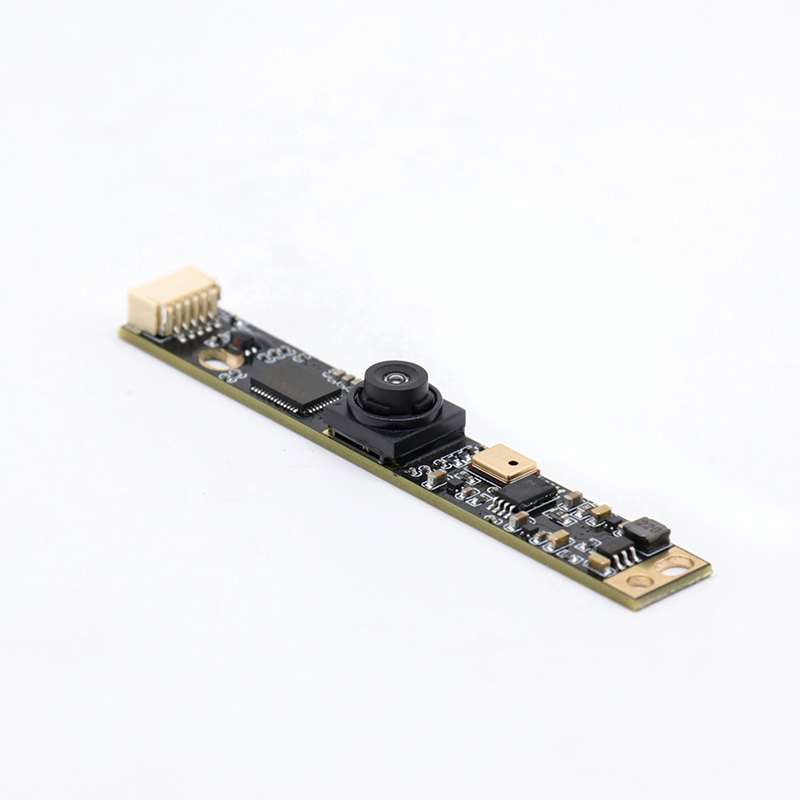

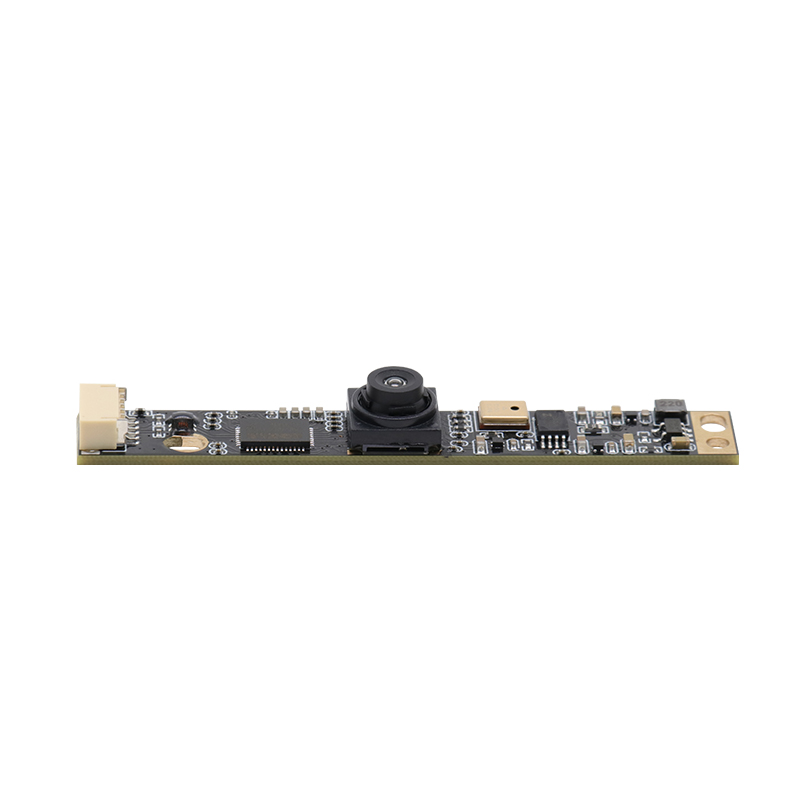

Hampo 003-1542 is a 8megapixel high resolution FF/AF mini camera module, which is on the basic of 1/3.06" S5K3H7 CMOS sensor, the image quality is very high and stable. The USB connection port in the camera module supports USB 2.0 high-speed data transmission and OTG protocol (UVC). The 8MP USB camera has a dedicated, high performance image signal processor chip that performs all automatic functions (automatic white balance, automatic exposure control), as well as a complete image signal processing pipeline, providing first-class image and video YUY2 and MJPEG compression The camera module with ultra tiny PCB board at 62mm*9mm, can be installed in most hidden and narrow position such as document scanner, LED large screen displayer, advertisement machine, all-in-one machine, laptop,intelligent electronic blackboard and other educational products application. Compatible with Windows 7, 8/10/11, Linux operating system.

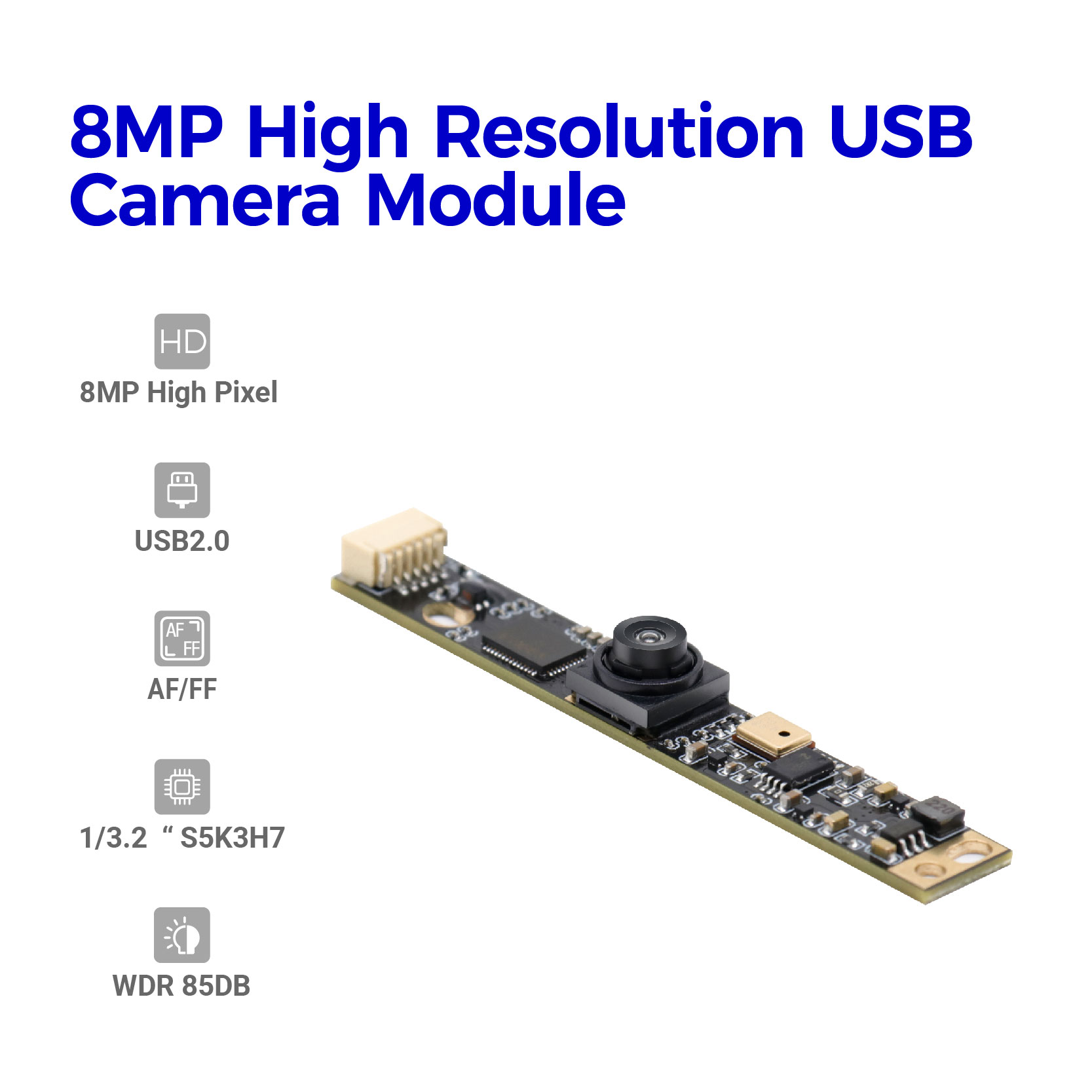

Key Features

More than HD: This camera adopts 8MP S5K3H7 sensor for sharp image and accurate color reproduction.

Capture Video with Audio: High frame rates, MJPG 15fps@3264 x 2448, 30fps@1080P; YUY2 30fps@640x 480.

High Quality of Image/Video: The camera with high definition 3264*2448P and lower color reproduction deviation produce sharp image and accurate information.
FF/AF could be optioned focusing lens: Customers could option fixed focus or auto focus lens as need.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

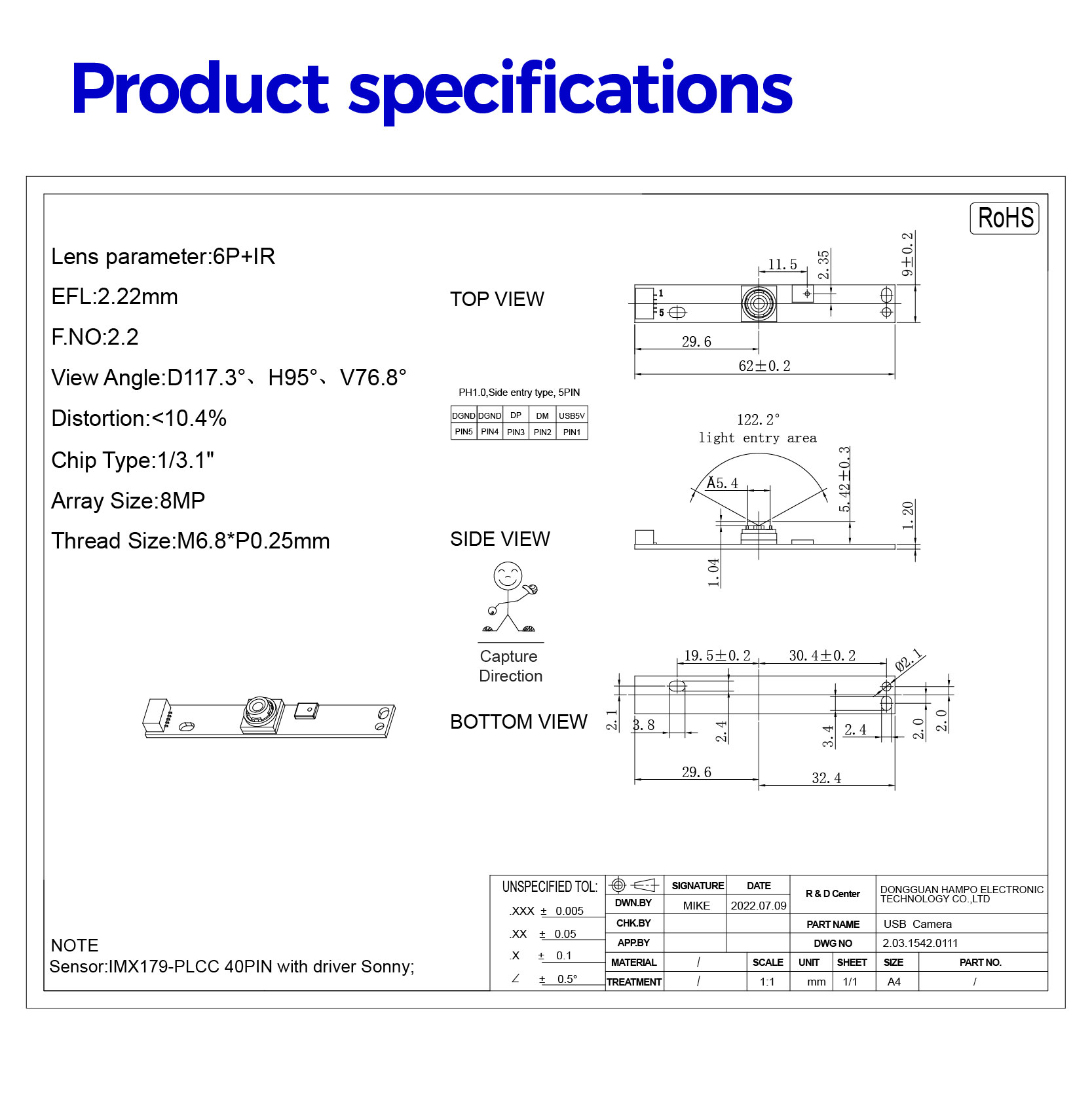

Specification

Camera
Model No.	003-1542
Max Resolution	3264*2448P
Sensor	1/3.06" S5K3H7
Frame Rate	MJPG 15fps@3264*2448
Pixel Size	1.4μm*1.4μm
Output Format	YUY2/MJPG
HDR	85DB

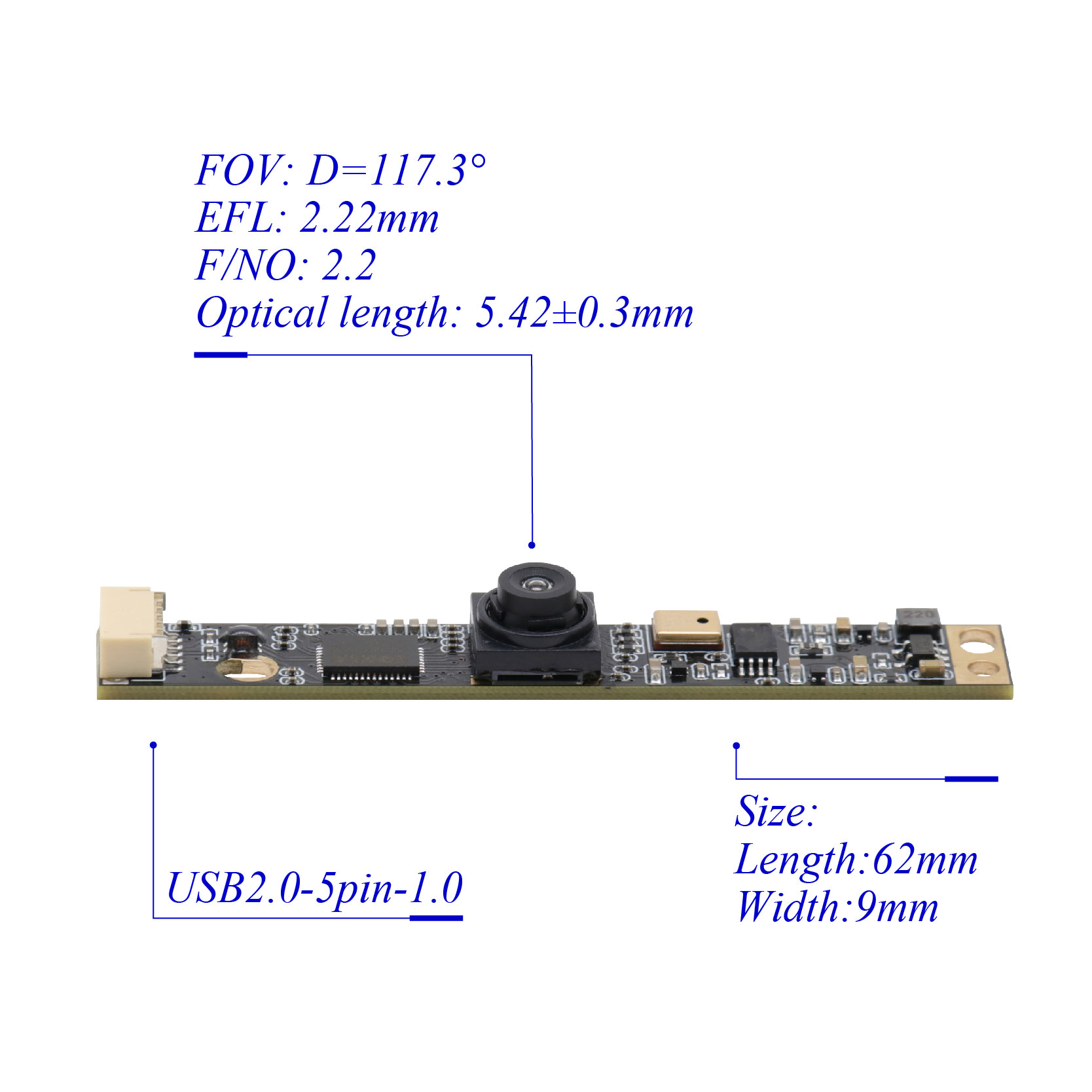

Lens
Focus	Auto focus/Fixed Focus
FOV	D=117°
Lens Mount	M6.5 * P0.255mm
Power
Working Current	MAX 200mA
Voltage	AVDD2.8V/DVDD1.2V/DOVDD2.8V
Physical
Interface	USB2.0
Storage Temperature	-20ºC to +70ºC
Operating Temp	0°C~+60°C
PCB Size	62*9MM
Cable Length	3.3ft (1M)
Functionality and Compatibility
Adjustable parameter	Exposure/ White balance
System Compatibility	Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver

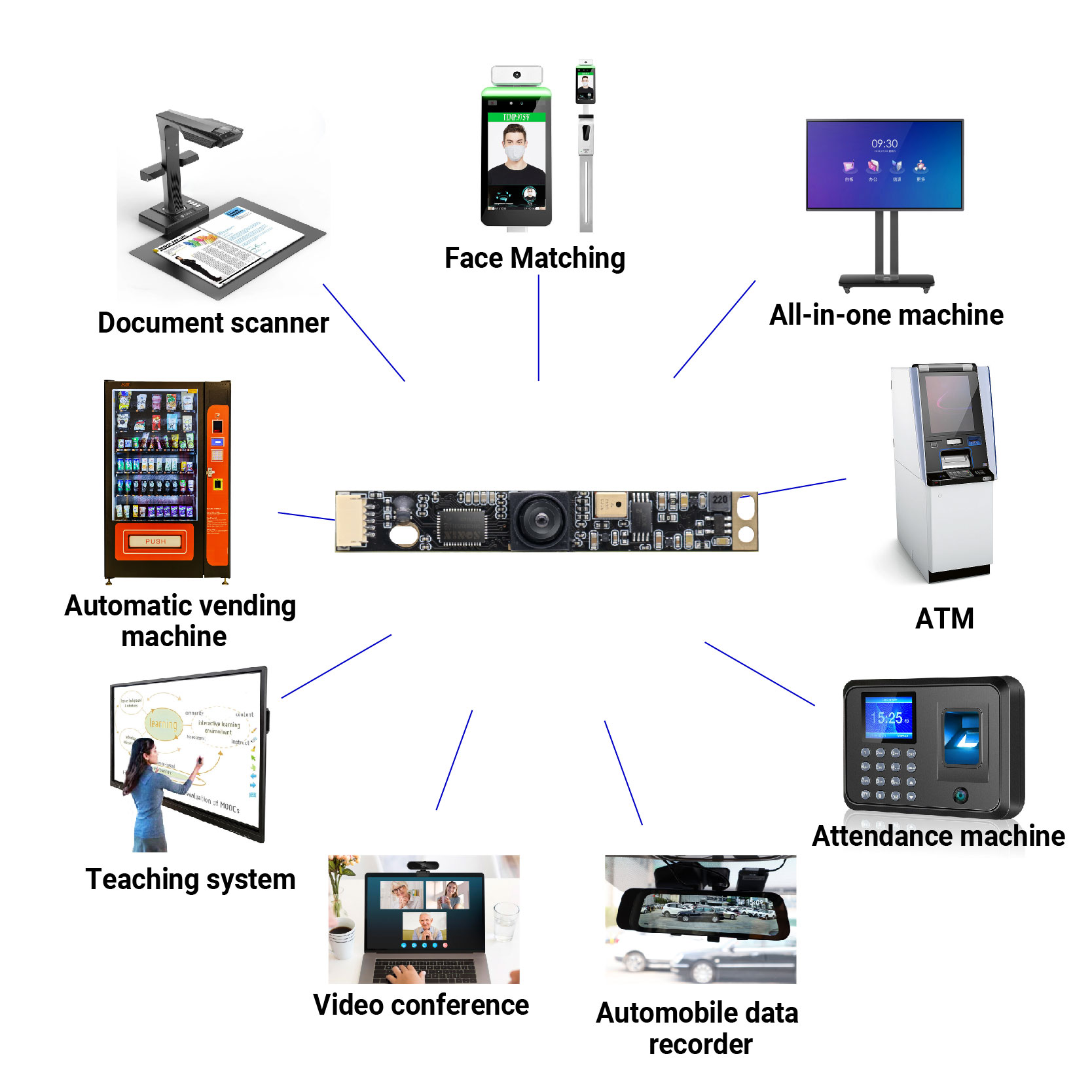

Applications

All-in-one machine
POS equipment /Credit card machine
Automatic vending machine
ATM
Face Matching
OCR components/OCR Reader
Teaching system
Security system
Automobile data recorder
Attendance machine
Industrial camera
Document Reader/Document scanner
