AC 220v 1000w 2 Channel Wireless Relay with Transmitter
生产所需时间:
14 日
产品型号:
EBN113D4E
品牌名称:
eMylo
颜色:
Blue
尺寸:
75 x 65 x 29mm
付款方式:
PayPal
最低订购数量:
100
是否有包装:
有
是否可定制:
是
触点负载:
小功率
防护特征:
Overcurrent protection
用途:
通用
描述
联络供应商
描述

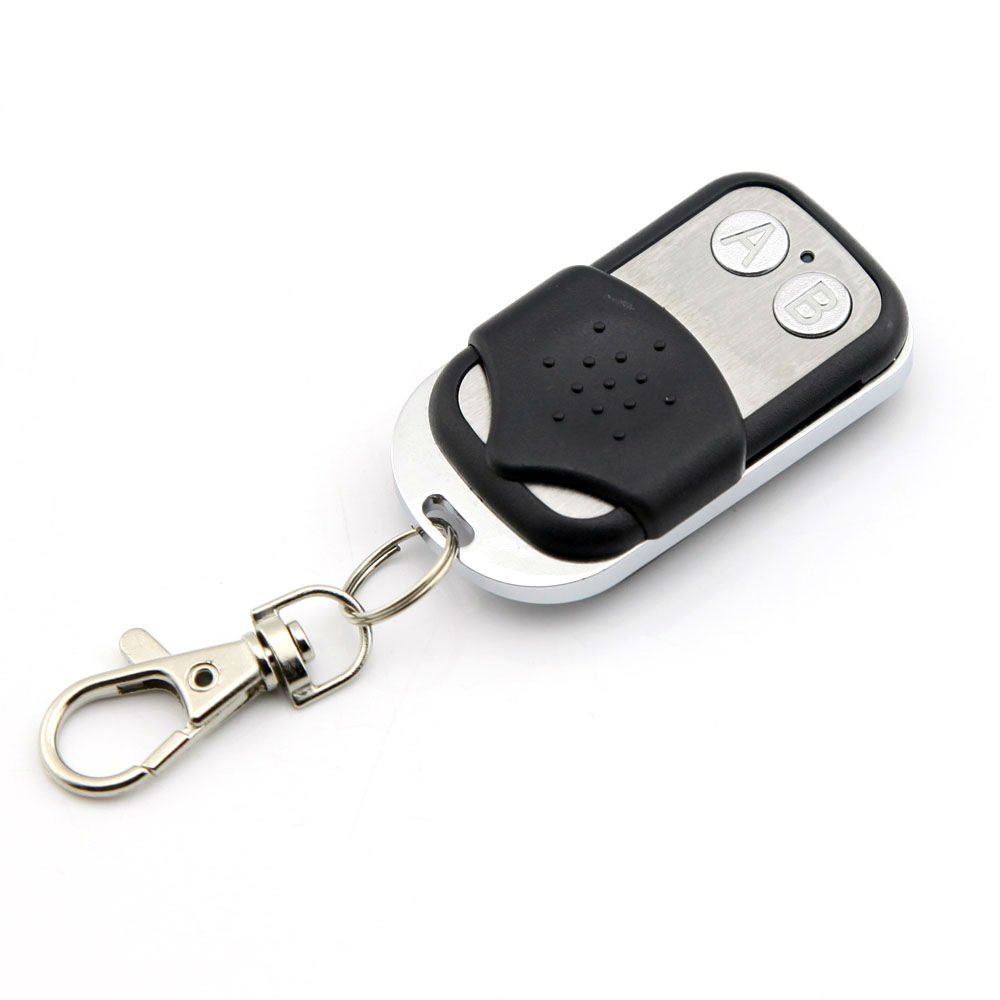

- TRANSMITTER:
- Operating Voltage: DC 12V
- Operating Frequency: 433Mhz
- Vibration Resistance: 334
- Chip Type: 1527/2264
- Modulation: ASK (Stable, less interference)
- Encode Type: Group Coding
- Battery Type:12V 27A(not included)
- Remote Distance: 20m(Theoretical value)
- Ambient TEMP: -30℃ -70℃, Humidity<95%
- Product DIM: 54x30x13mm
- Input Voltage: AC 220V
- Operating Frequency: 433Mhz
- Operation Way: Inching/Momentary, Self-locking/Latched, Interlocked/Toggle
- Coding Way: Intelligent Learning
- Output Type: Active output
- Max load: 1000W
- Ambient TEMP: -20℃ -65℃, Humidity<95%
- Factory Default: Self locking
- Board DIM: 69 x 49 x 17mm
- Case DIM: 75 x 65 x 29mm

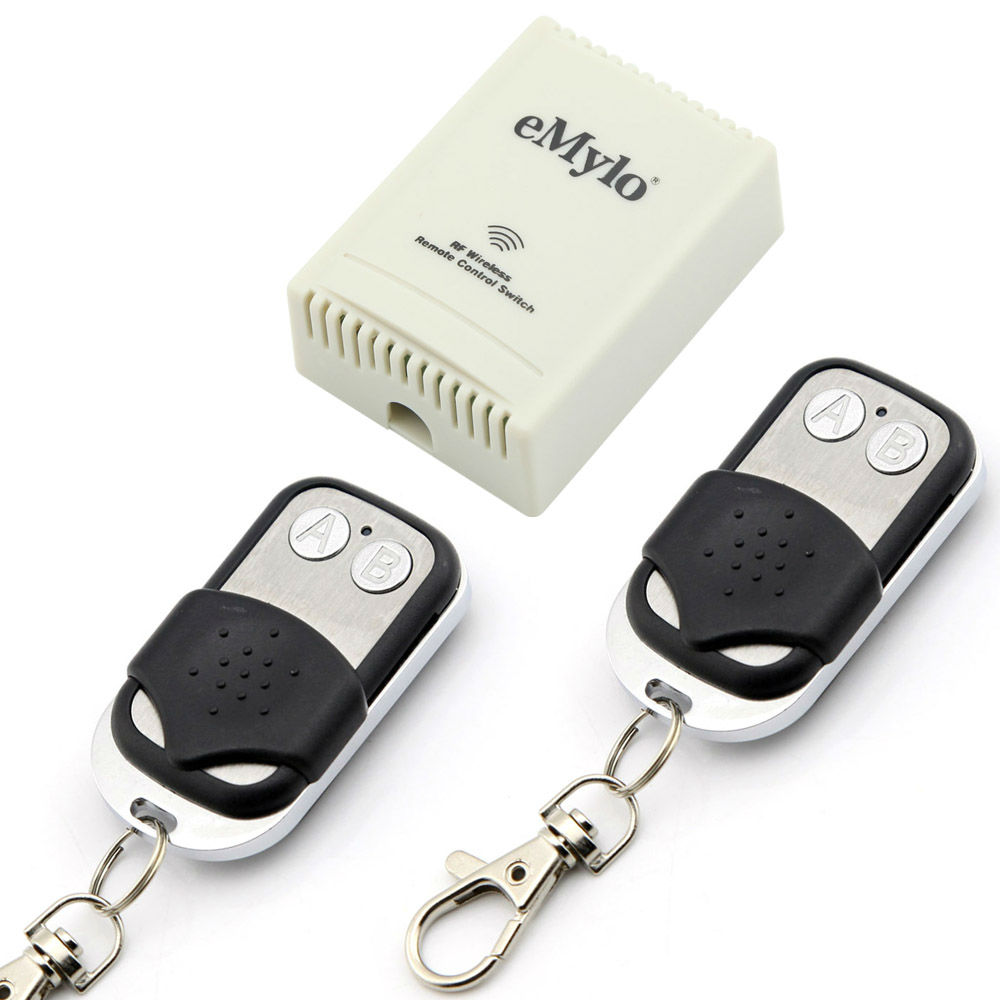

- 2 x Transmitters
- 1 x Receiver
- 1 x English Manual
THREE MODES:
- Inching: press&hold one button, the reply turns on, release the button, the reply turns off.
- Self-lock: press the one button, the reply turns on, press the button again, the reply turns off.
- Interlock: press the one button, the reply turns on, press the next button, the reply turns off.
- Clear: Press&hold the program button on the receiver, the red light will turn on and stay on for about 5 seconds.
- Inter-lock:release the button after the light flashes once.
- Self-lock:release the button after the light flashes twice.
- Inching:release the button after the light flashes three times.
- Press the program button on the receiver until the red light turns on, and then release the program button, the red light will stay on.
- Press a transmitter button, and the red light will flash, at this time, it means finished linking.
