AC-4 LCD Screen Indicating Signal Strength 12V to 1000V AC Voltage Detector | 工程和建筑机械

SHENZHEN VICIMETER TECHNOLOGY CO.,LTD.

AC-4 LCD Screen Indicating Signal Strength 12V to 1000V AC Voltage Detector

型号编号:

AC-4

尺寸:

165(L) x 40(W) x 20(D) mm

重量:

58g

Safety level:

CAT. III 1000V

Range:

12V~1000V (available to select high/low sentivity)

描述

联络供应商

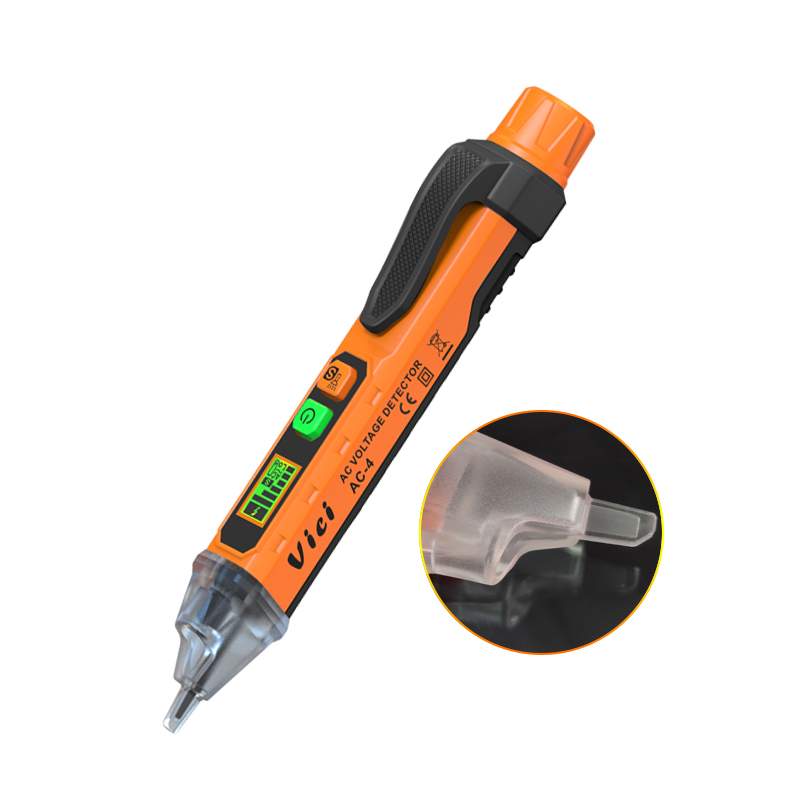

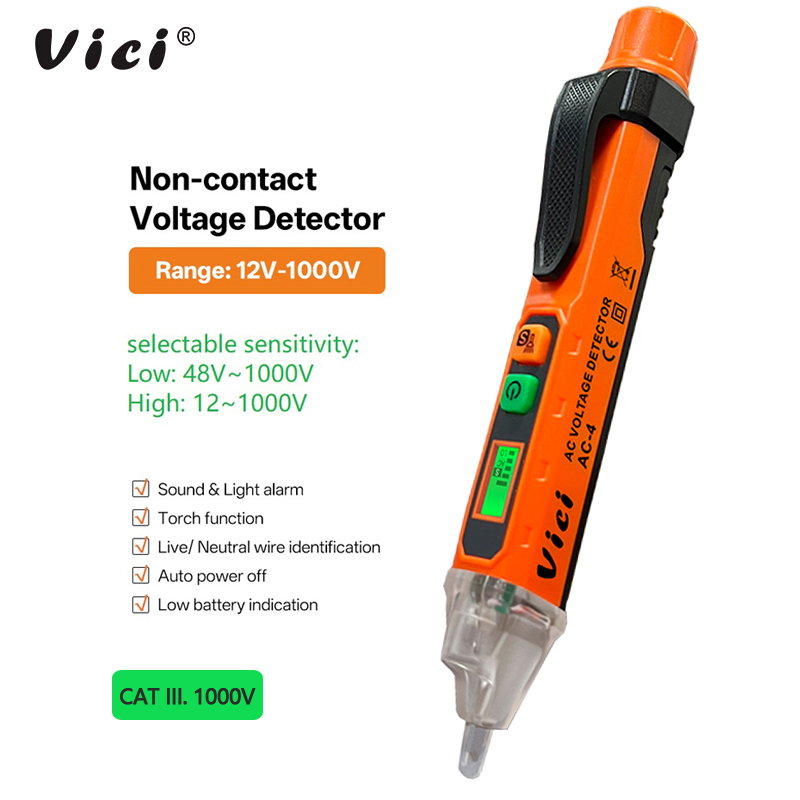

AC-4 Non-contact LCD Voltage Detector

Feature:

Technical specifications:

AC voltage range	About 48-1000V (boot default)	About 12-1000V (press S key)
Frequency	50Hz/60Hz
Type of alarm	LCD display and sound and light alarm
Flashlight	LED light
Automatic shut-down	Auto shut down when no operation for 5 minutes & no voltage signal is detected
Battery low voltage indication	The screen displays low voltage symbol
Live wire identification	According to the signal indicating light, LCD screen analog bar, backlight color
Sensitivity	Two alternatives
Usage temperature	0 ~ 40℃
Storage temperature	-10~50℃
Altitude	<2000m
Security level/phase	CAT.III 1000V / CAT.IV 600V
Power supply	2×1.5V AAA battery

General Info:

Tester color	Orange + Gray
Tester weight	58g
Tester size	165(L) x 40(W) x 20(D) mm
Standard packing including	AC-4voltage tester, blister-card, battery
Individual packing style	Blister-card
Master packing	200pcs/carton
G.W. per carton	18kg
Carton size	65.5x29.0x45.5cm
