PZD-102HSS Hot Stamping Machine (Cone Shape Version) is specially designed for cone shape (and round shape) container. The machine applies 3 servo motors to achieve cone shape hot stamping process.

Features：

1.     PLC touch control panel, makes the machine operation easier.

2.     Auto feeding and unloading device.

3.     Machine with servo rotary fixture, can be controlled to rotate and print at different angles.

4.     Height of stamping head adjustable

5.     Auto detect sensor loading system, not product, not print

6.     Applied laser sensor auto registration

7.     Shuttle movement is driven by servo for fast and easy position adjustment

8.     Holding jig base is driven by servo enabling substrate runs according to the taper angle

9.     Special design foil pressing device ensures foil without folding during hot stamping process

10.   Internet remote monitor system ensures on-line problem solving easily

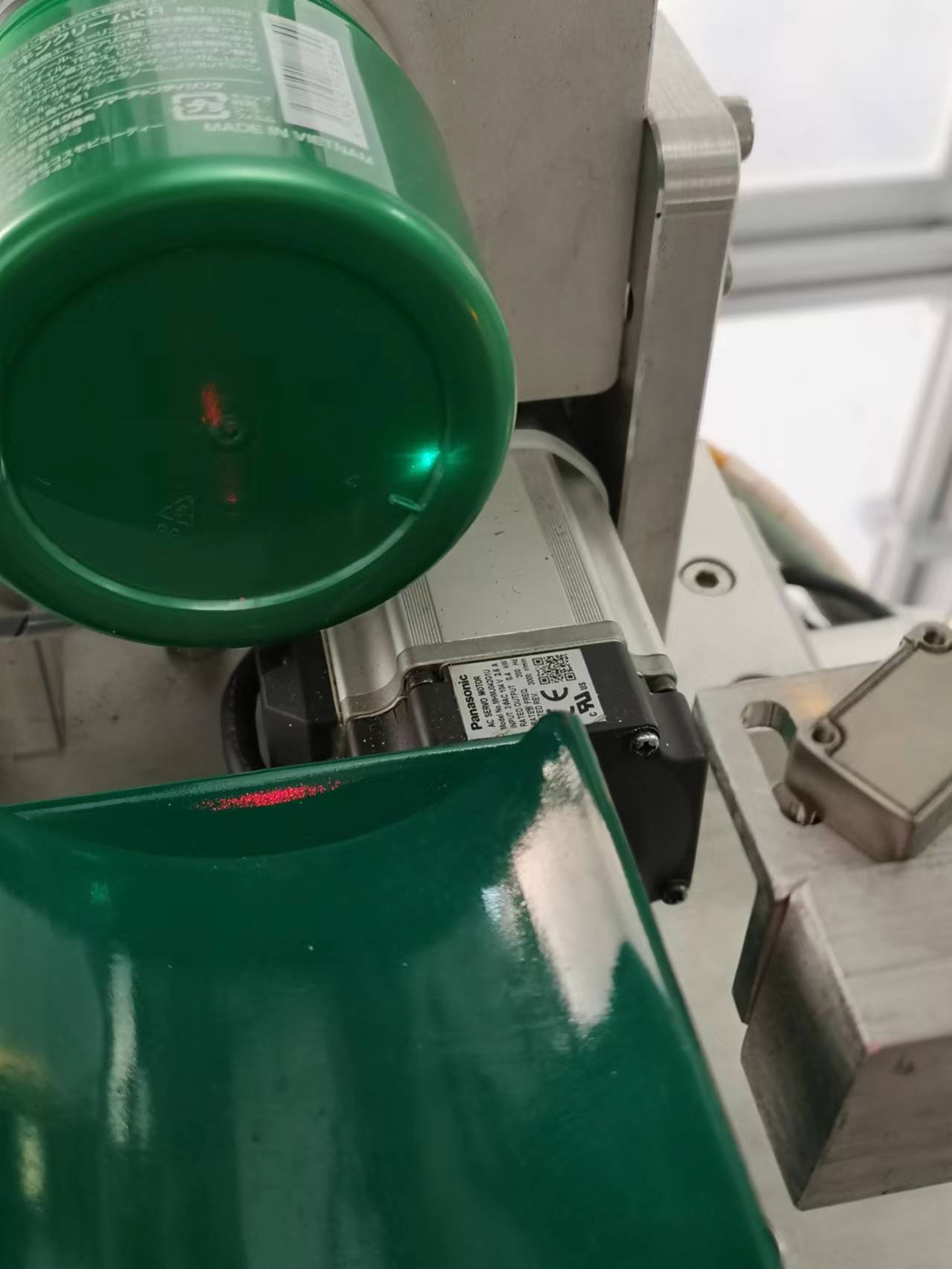

                                                                                        Laser Sensor Registration

MACHINE SPECIFICATIONS
