• A-263D & HA-263K is a high performance local alarm control panel with 8 hardware protection zones in two partitions. The main advantage of it is all the main features are accomplished by direct jumper settings on the main circuit board. It is absolutely simple to set up and no learning is required. It is an ideal system for both “Do-It-Yourself” and professional users.
• The system is designed with two partitions in one enclosure. The two partitions are independently controlled for arm-disarm just like two alarm control panels, which gives the maximum flexibility for users convenience and protection arrangement. The lobby protection zone in the Common Partition is armed while both partition 1 and 2 are armed to give maximum protection; and it is disarmed while one of the partition is disarmed. This allows either partition to arm, while leaving the lobby for access into the other partition.
• The HA-263D comes with a Digital Keypad for arm-disarm control with user codes, which also offers additional features via programming through the keypad. The system can also work with key-switch and digital keypad in mixed operation.

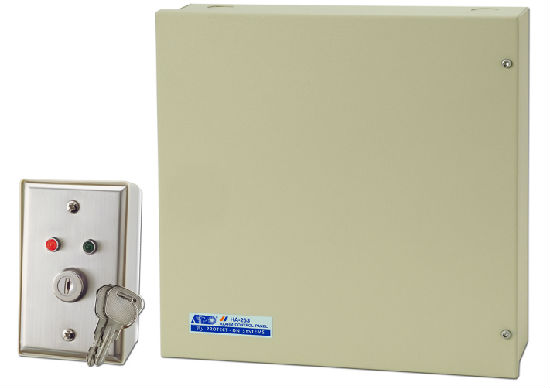

• The HA-263K comes with one Key Switch Control Station for combined arm-disarm control of the whole system. Independent control of the two partitions requires two key switch control stations. The system can also work with key-switch and Digital Keypad in mixed operation.

Features:

• Arm-disarm Controlled by Digital Keypad
• 8 Zones in Two Partitions
• Independently Programmable User Codes for Partition 1, 2, & The Whole System
• User Codes Can Be 4-6 Digits
• Programmable Time for Entry Delay and Alarm Duration
• Each Protection Zone is Independently Programmable for Response Time
• Exit and Entry Warning Beeps On-Off Options
• Arm-Disarm Ring Back Indication On-Off Options
• Instant Arming Codes for Home and Away Operations
• Built-in Dynamic Battery Charger and Tester with Auto or Manual Testing
• On Board Software Zone for Panic Alarms
• Maximum 4 Control Keypads or Key Switches Can Be Connected
• Home or Away Operation
• Forced to Arm with The Faulty Zone(s) Bypassed
• Handover Option for The Instant Zones
• Facilities for Driving Siren/Bell, Satellite Siren and Strobe Light
• Power Low Watchdog Resets System
• Non-Volatile Memory
• 12V / 6.5Ah Back-up Battery (Not Included)
• 16.5VAC Operation
• Weight: 2.5 Kg (The Control Panel & The Keypad)
• Dimensions: 270(H) X 265(W) X 78(D) mm (The Control Panel); 117(H) X 117(W) X 27(D) mm (The Keypad)
