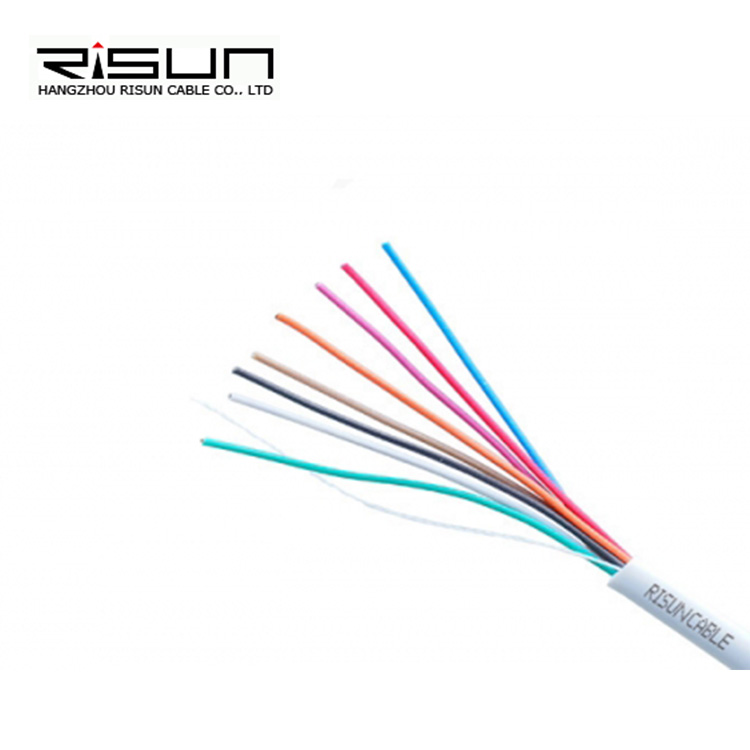

Alarm cable Nx0.50

美元 $60.00 - 美元 $75.00

生产所需时间:

20 日

运送方式:

BY SEA

描述

联络供应商

Fire alarm cable Suitable for Evacuation Systems, Smoke Detectors Fire alarm systems Burglar alarms Dedicated Fire Protective Circuits

DESCRIPTION
Manufactured according to NEC.

*TECHNICAL SPECIFICATIONS*
	Part No.	No.of cores x mm2	No. / Dia.			Insulation thickness		O.D (approx.)
	Part No.	No.of cores x mm2	Inch	AWG	mm	Inch	mm	Inch	mm
		2 x 0,22	0.0236	24	7/0,20	0.01	0.25	0.138	3.5
		4 x 0,22	0.0236	24	7/0,20	0.01	0.25	0.157	4.0
		6 x 0,22	0.0236	24	7/0,20	0.01	0.25	0.188	4.8
		8 x 0,22	0.0236	24	7/0,20	0.01	0.25	0.209	5.3
		10 x 0,22	0.0236	24	7/0,20	0.01	0.25	0.228	5.8
		12 x 0,22	0.0236	24	7/0,20	0.01	0.25	0.252	6.4
		20 x 2,22	0.0236	24	7/0,20	0.01	0.25	0.591	15.0
		2 x 0,22 + 2 x 0,50	0.0236	24	7/0,20 16/0,20	0.01 / 0.0118	0.25 / 0.30	0.1417	3.6
		4 x 0,22 + 2 x 0,50	0.0236	24	7/0,20 16/0,20	0.01 / 0.0118	0.25 / 0.30	0.157	4.0
		6 x 0,22 + 2 x 0,50	0.0236	24	7/0,20 16/0,20	0.01 / 0.0118	0.25 / 0.30	0.177	4.5
		8 x 0,22 + 2 x 0,50	0.0236	24	7/0,20 16/0,20	0.01 / 0.0118	0.25 / 0.30	0.205	5.2
		10 x 0,22 + 2 x 0,50	0.0236	24	7/0,20 16/0,20	0.01 / 0.0118	0.25/ 0.30	0.213	5.4
		12 x 0,22 + 2 x 0,50	0.0236	24	7/0,20 16/0,20	0.01 / 0.0118	0.25 / 0.30	0.221	5.6
		2 x 0,22 + 2 x 0,75	0.0236	24	7/0,20 24/0,20	0.009 / 0.0118	0.25 / 0.35	0.193	4.9
		4 x 0,22 + 2 x 0,75	0.0236	24	7/0,20 24/0,20	0.009 / 0.0118	0.25 / 0.35	0.205	5.2
		6 x 0,22 + 2 x 0,75	0.0236	24	7/0,20 24/0,20	0.009 / 0.0118	0.25 / 0.35	0.213	5.4
		8 x 0,22 + 2 x 0,75	0.0236	24	7/0,20 24/0,20	0.009 / 0.0118	0.25 / 0.35	0.228	5.8
		10 x 0,22 + 2 x 0,75	0.0236	24	7/0,20 24/0,20	0.009 / 0.0118	0.25 / 0.35	0.244	6.2
		12 x 0,22 + 2 x 0,75	0.0236	24	7/0,20 24/0,20	0.009 / 0.0118	0.25 / 0.35	0.260	6.6

Parameters
Operating temperature range ℃			-20+60
Min. bend radius (install)			8xD
DC resistance 20℃ ohm/KM			0,22	90
			0,50	36.7
			0,75	24.8

Application
Evacuation systems, smoke detectors and alarms.

Packing
100m/cardboard reel 200m/roll 500 m in wooden drum other lengths available

All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.
