American Standard Lamp Cable Cord Set with Switch | 照明配件及零件

Zhongshan LinkedLight Lighting Technology CO., LTD

查询

比较及批量查询

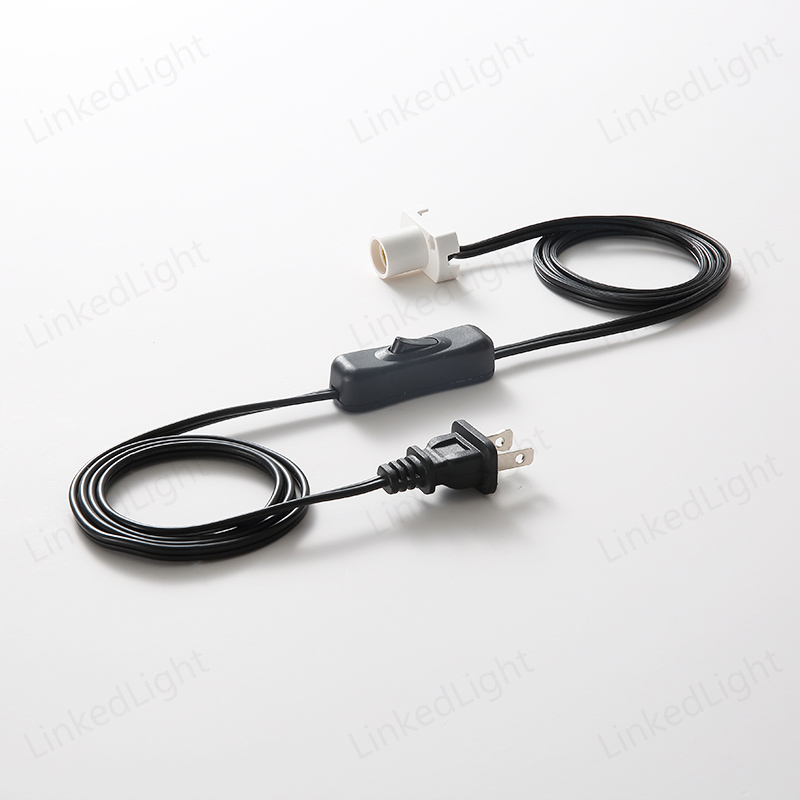

American Standard Lamp Cable Cord Set with Switch

显示更多

生产所需时间:

15 日

运送方式:

by sea ; by air ; by courier

应用:

LED Desk Lamps, LED Wooden Lamps, LED Tiffany Lamps, LED Crystal Lamps, LED Gift Lamps, Fragrance Lamps

电源类型:

交流电

材料:

Conductor Material:Copper Sheath Material:PVC Pin Material : Brass

品牌:

LinkedLight

型号编号:

LCS. 12.309

描述

联络供应商

Product Name	American Standard Lamp Cable Cord Set with Switch
Product Code	LCS.12.309
Optional Colours	Black / White / Transparent / Customized
Application	LED Desk Lamps, LED Wooden Lamps, LED Tiffany Lamps, LED Crystal Lamps, LED Gift Lamps, Fragrance Lamps
Components	Plug, Cable, Switch
Components Description
Plug	Type : American 2 Prong Polarized Plug
	Pin Material : Brass
	Body Material : Plastic PVC
	Plug Process : Moulded
	Plug Standard : UL817 / CSA C22.2
	Rated Voltage / Rated Current : 250V / 10A
	Approval : CUL / UL
Cable	Type : SPT-2 / 2 Core Parallel Cable / 18-16AWG
	Jacket Material : PVC
	Insulation Material : PVC
	Conductor Material : Stranded Bare Copper
	Rated Voltage : 300 / 300V
	Rated Temperature : 105ºC
	Approvals : CUL / UL
Switch	Type : Gear Rotary Switch
	Housing Material : PC / ABS
	Contact Material : Copper / Nickel Plating
	Installs Way : Screw Fixing, Rewirable
	Rated Voltage / Rated Current : AC 250V / 3A
	Approvals : CUL / UL
Cable End Process	Cutting / Strip Outer Jacket / Strip Out Jacket & Inner Wire
Cable End Process	Tin Plated Inner Wire / Brass Ferrules / Double Rings / Connectors

Packaging & Shipping

Packaging:
Besides the regular packing, LinkedLight can do the blister packing, Hang packing, Art box, and the special packing according to the requirements.

Shipping:

Regarding the samples and the goods which is less than 100kgs, LinkedLight suggests to choose the air transport. The express delivery including FedEx, DHL, TNT, UPS are all the Contractual partner of LinkedLight.

About the Sea transport, usually our near port is Guangzhou / Shenzhen / Zhongshan Port. The delivery terms of EXW / FOB / CIF / CFR / FCA is acceptable.

Production Flow

Company Profile

Since our foundation in 2005, We have become a significant force in the Lighting and Electrical Accessory Market in China, Depends on the excellent commercial system, strong industrial system, unique culture system and timely organizational system; Together with our partners and employees we are proud to be a company with an excellent track record of listening to what our customers need and providing the perfect products and solutions.

We are located in Guzhen of Zhongshan City. As the defender of high-end manufacturing in Guzhen, and based on 8000 square meters of industrial manufacturing and commercial operation center, about 100+ LinkedLight people always insist on the law of survival that quality is the life, business reputation is the soul. LinkedLight has been with a number of global influential lighting and electrical enterprises to maintain the strategic partnership.
