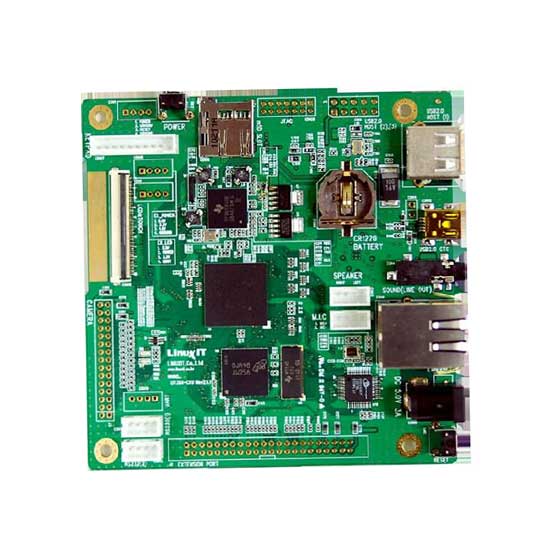

This Android-based PCB is an essential component for a tablet PC. The high-performance PCB is able to support a 7" WVGA LCD display with a multi-touch interface. It delivers outstanding performance and smooth multitasking.

• TI OMAP3530 application processor.
• Up to 600MHz ARM CortexTM-A8 Core.
• NEONTM SIMD coprocessor.
• Up to 430MHz TMS320C64x+TM DSP Core.
• POWERVR SGXTM graphics accelerator.
• Memory support.
• Mobile DDR: 256MB, 166MHz.
• NAND flash: 256MB.
• One SD memory socket.
• Display Support.
• 7" WVGA(800x480) LCD display with touch screen interface (landscape and portrait mode supported).
• HDMI display (optional).
• S-video display (optional).
• RTC (real time clock).
• Keypad interface (Max : 16 key).
• Standard RJ45 10/100Mbps Ethernet.
• Stereo audio: line OUT/1W sound speaker, mono microphone, JTAG interface, two RS232 port.
• One UART(TTL) port.
• High-speed USB2.0 (480Mbps).
• USB2.0 host based on TUSB12xx transceiver
• 3 ports (Internal: 1, External: 2).
• USB2.0 OTG based on TPS659xx.
• Expansion port.
• 4-bit SDIO Wi-Fi interface.
• One I2C Interface.
• Two SPI Interface.
• GPIO (Global Purpose Input Output) interface.
• Camera module interface.
