Product Specification

• OS: Android 4.2.2
• CPU: Amlogic AML8726-MX (1.5GHz ARM Dual-core Cortex A9 CPU)
• GPU: dual-core Mali400
• Memory: 1GB (DDR3)
• Flash: DB300TA: 4GB, DT300TB: 8GB
• WiFi: IEEE 802.11 b/g /n (built-in RTL8188 module and antenna)
• LAN: 10/100Mbps Ethernet
• Display: 1920*1080P (Full HD)
• DTV System Supported: DVB-T2
• Tuner Frequency: VHL: 177.5-230MHz, UHF: 470-860MHz
• Tuner Impedance: 75 Ohm
• Tuner Input Level: -90 to -20dBm

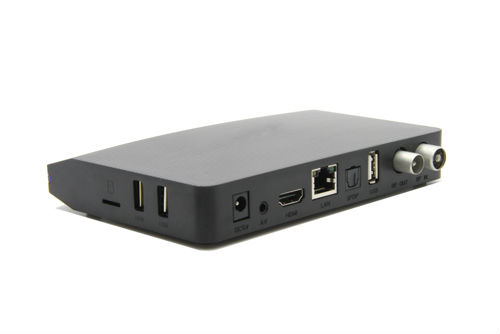

Product Outlook:

• HDMI 1.4a x 1: Up to 1920x1080P resolution
• RF IN x 1: RF Signal Input (Female IEC Connector)
• RF OUT x 1: FR Signal Output (Male IEC Connector) @ Loop Through
• DC Jack x 1: 5VDC/2A
• AV x 1: CVBS Serial Output
• USB 2.0 Port x 3: Host
• MicroSD Card Slot x 1: Support up to 32GB
• LAN Port x 1: 10/100M Ethernet (RJ45)
• SPDIF x 1: Optical interface

Product Feature

• Support live video streaming playback on various websites (http, rtmp, tmpe, rtsp...etc.)
• Support Miracast & Airplay, DLNA and remote control by Android-based smart phones
• Support various USB devices including 3G USB Dongles
• Support multi-language, 3D games and Wi-Fi hotspot (could act as a wireless IP router)
• Support Adobe Flash Player 11.1 or later, HTML, HTML5 and XML
