4-in 2-out (dubbing) A/V selector gets the most out of your home entertainment system.
Simply hook-up input "in 1", “in 2”, "in 3" and “in 4” to your DVD, VTR, video game player or CD player output and hook-up the A/V switcher outputs to your TV & VTR.
Operation:
Hook-up the output of your home entertainment player to 'in 1', 'in 2', 'in 3' and 'in 4' by AV cable.
Hook-up the input of your TV to 'out-1' & VTR (or other recorder) input to 'out-2' by AV cable.

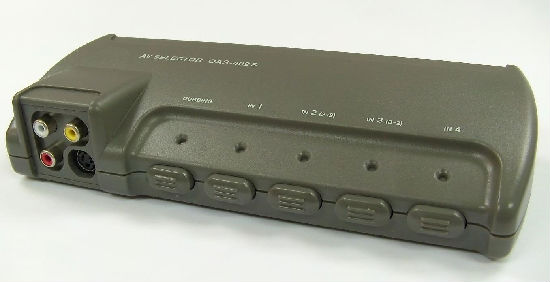

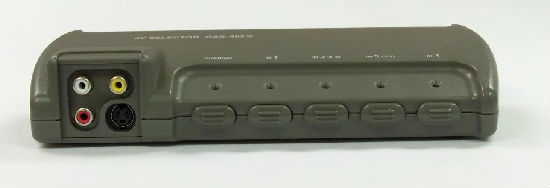

Select your desired player by pressed down of the related button.
The AV output of desired player will play on your TV set.
When pressed down 'dubbing' button, 'in-2' or 'in-3' AV signal will play on both your TV set and VTR.
You can watch and record the AV signal at the same time.

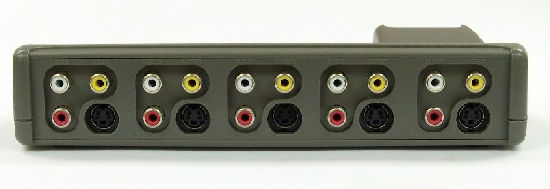

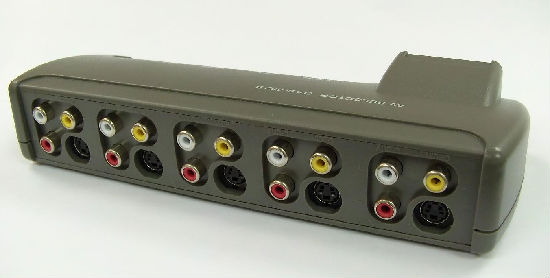

Input terminals (4 systems) video (yellow), S-video and audio left (white)/audio right (red).
Output terminals (2 systems) video (yellow), S-video and audio left (white)/audio right (red).
