Auto Range Digital Multimeter 6000 Counts
生产所需时间:
5 - 15 日
产品型号:
VC87
品牌名称:
Vici
颜色:
Orange and Grey
尺寸:
185×93×35mm
港口:
Shenzhen
付款方式:
T/T, Western Union
最低订购数量:
30 piece(s)
是否可定制:
是
工作温度:
23+-5C
描述
联络供应商
描述

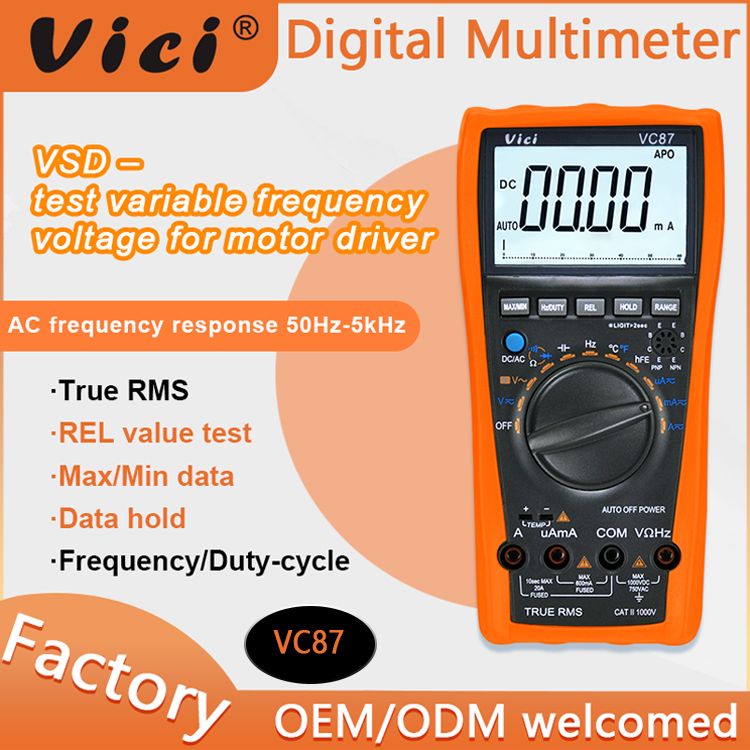

Auto range digital multimeter 6000 counts VC87
Technical data:
Technical data:
- DCV 600mV/ 6V/ 60V/ 600V/ 1000V
- ACV (TRMS) 6V/ 60V/ 600V/ 750V

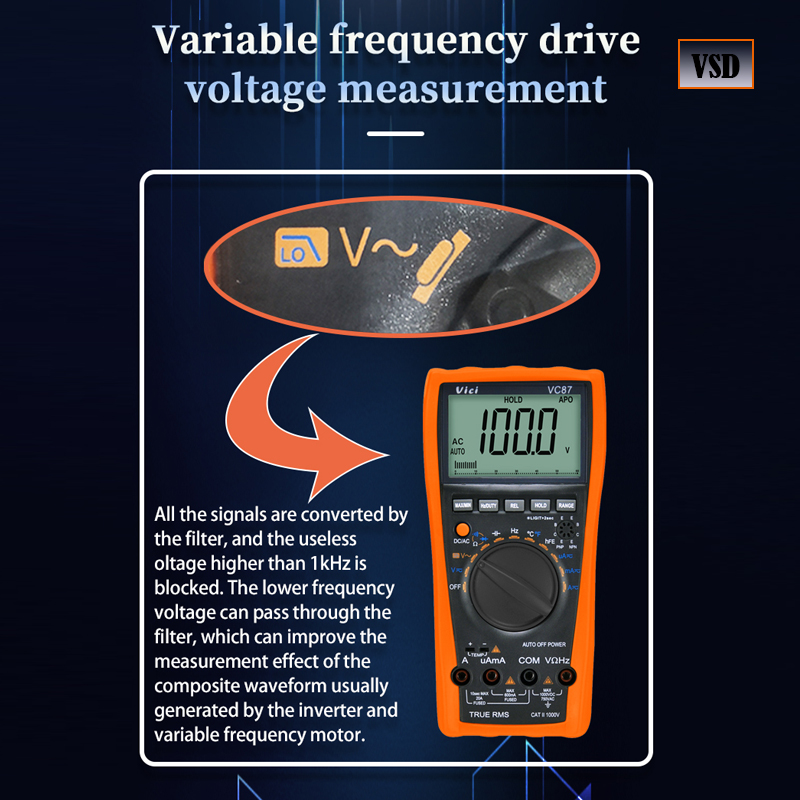

- VSD-V (TRMS) 6V/ 60V/ 600V /750V
- DCA 600uA/ 6000uA/ 60mA/ 600mA/ 6A/20A
- ACA (TRMS) 600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 20A
- Resistance 600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 30 MΩ
- Capacitance 40nF/ 400nF/ 4uF/ 40uF/ 400uF/ 2000uF
- Frequency 5Hz～30MHz
- Centigrade temperature -40℃～1000℃ 0℉～1832℉
- VSD
- True RMS
- Diode test
- hFE test
- Continuity test: Approx. less than 30Ω±10Ω
- Low battery indication: Approx less than 5.5V
- Duty cycle test
- Data hold
- Auto power off
- Analog bar/Backlight display
- Function protection
- Input impendence: 10MΩ
- Sampling rate: 3times/s
- AC frequency response :30Hz-60Hz/60Hz-200Hz
- Operation method: Manual or auto range
- LCD size: 65x41mm
- Battery :9V(6F22)
- Power dissipation :Quiescent current approx. 4.6mA
- Standard accessory Test leads, battery, manual, TP01 temperature probe， Crocodile clip
- gift box
- 30pcs/carton
- Carton size 43.5×29.5×40.5cm
- G.W.:16.5kg
