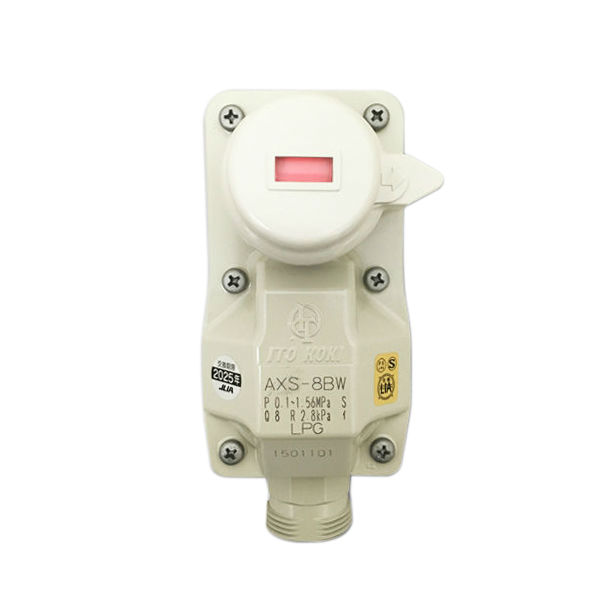

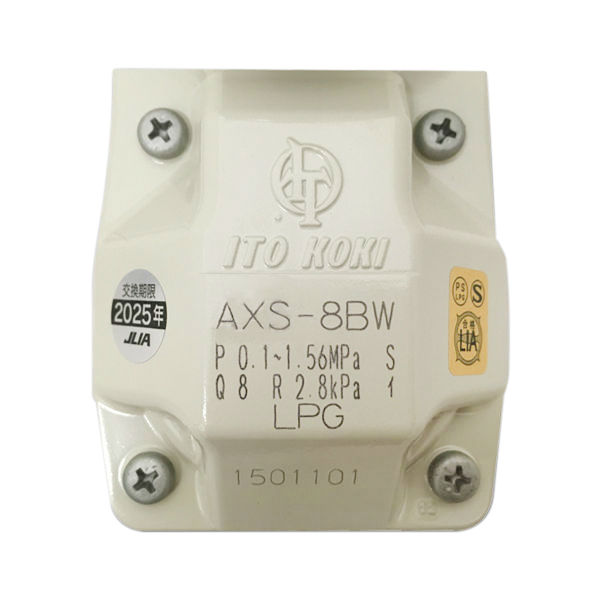

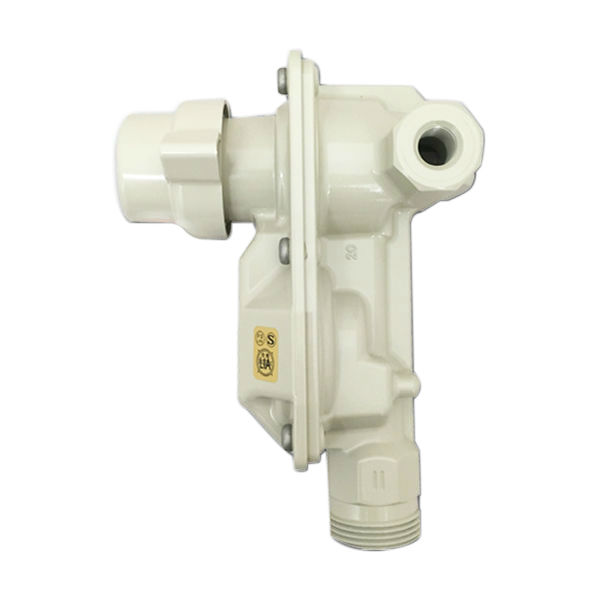

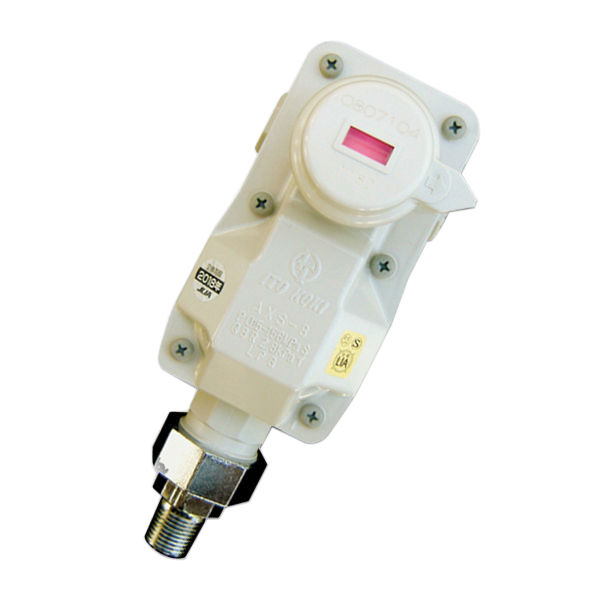

This regulator has both the automatic change-over section of the primary regulator and the secondary regulator for two-stage decompression in a single unit. It features two-stage decompression in which the gas cylinder pressure is adjusted to the appropriate combustion pressure (2.55–3.3kPa) by first reducing pressure at the automatic change-over section and then reducing pressure further at the secondary regulator.

• 1/4" auto change over.
• Flow rate range: 8–10kg/h.
• Inlet pressure: 0.15–1.56MPa.
• Outlet pressure: 2.55-3.30kPa.
• Inlet connection: RC 1/4 x 2.

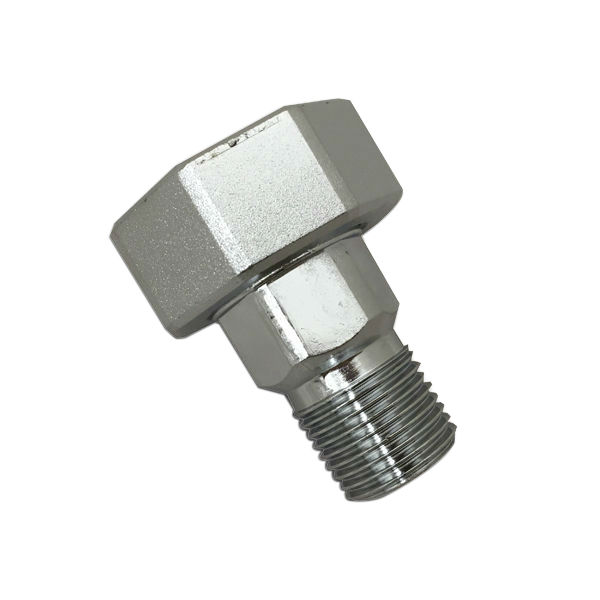

• Outlet connection: R1/2 union.
• Spacing: 80(W) x 173(L) mm.
• Mass: 0.7kg.
• Offer two-stage decompression in a single unit.
• First reducing pressure at the automatic change-over section.
• Further reducing pressure at the secondary regulator.
• Adjust gas cylinder pressure to the appropriate combustion pressure (2.55–3.3kPa).
• Robust construction.
• Simple installation.
