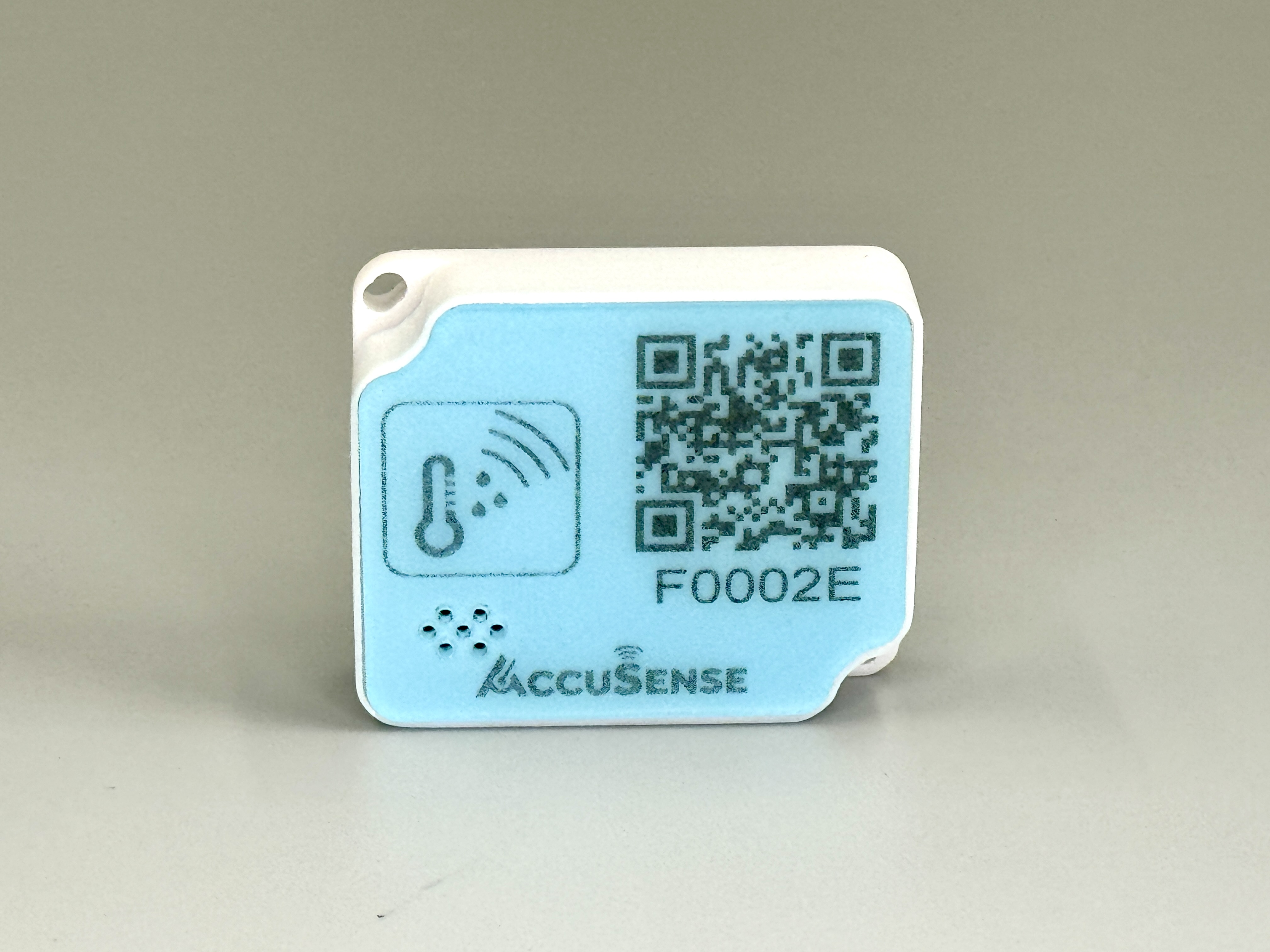

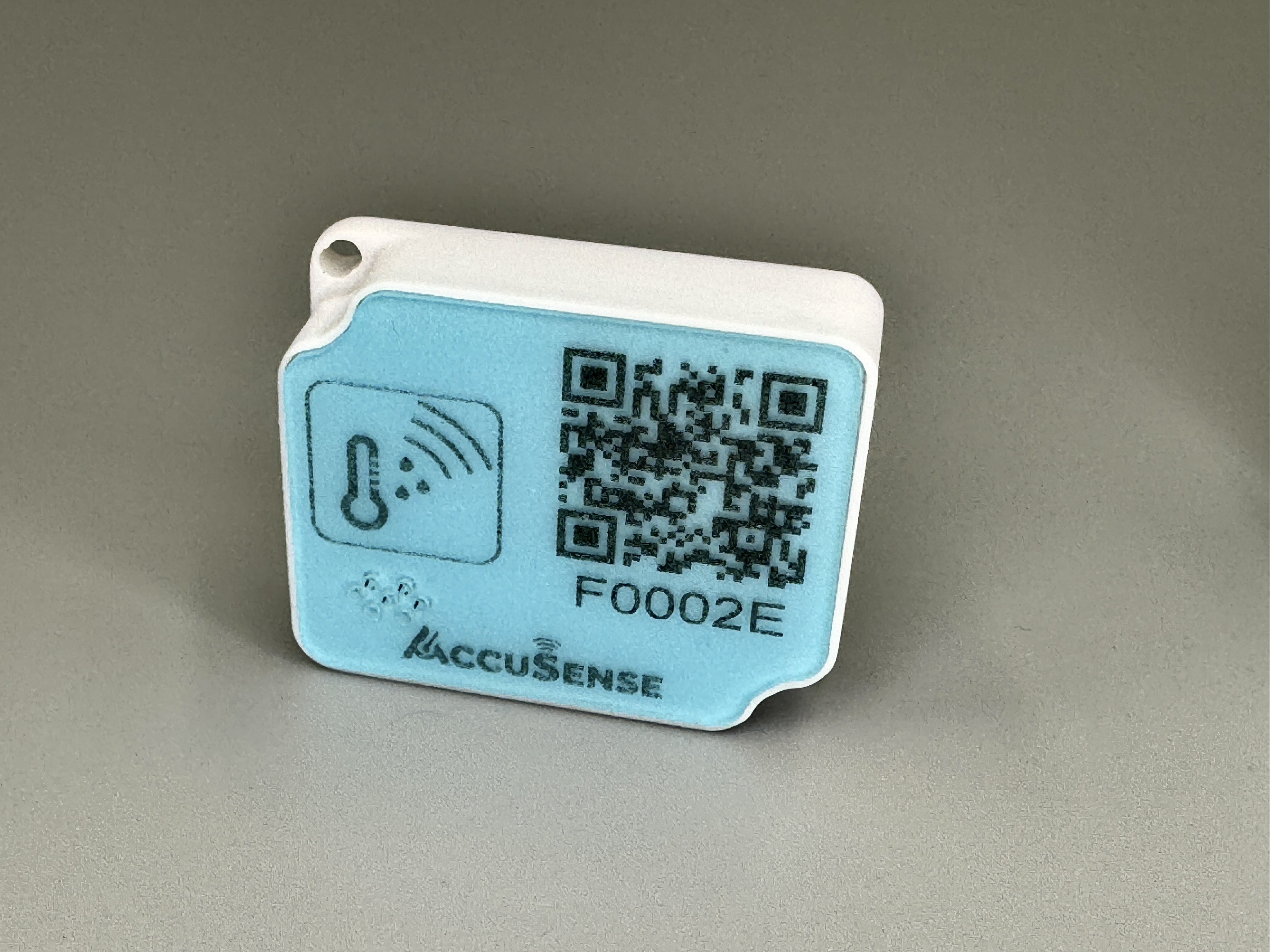

The AS1000 is a compact size, high accuracy, low power consumption Wireless Ambient Sensor.  It transmits the real time air temperature and relative humidity reading to the gateway through 2.4GHz BLE protocol wirelessly.

Use cases

• Machine health monitoring such as equipment rack in Server Room
• Environmental monitoring for HVAC and Smart Home
• Property management
• Food Storage monitoring
• Cold Chain monitoring

Product Specification

• Typ. Temperature accuracy: ±0.2°C
• Resolution: 0.0625°C
• Operating Temperature Range: -20 to +70°C
• Typ. Relative Humidity accuracy: ±1.8%RH
• Resolution: 1%RH
• Operating Relative Humidity Range: 0 to 100%RH (non-condense)
• Update frequency: every 18 minutes
• Transmitting range: up to 50m
• Protocol: BLE beacon
• Battery life: >5 years
• Physical dimension: W 36.0mm x H 30.0mm x T 10.0mm (±0.5mm)
• Attachment method: 3M VHB tape or cable tie (both included)
