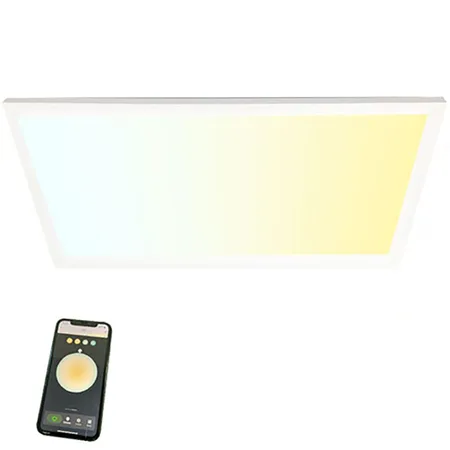

    Back-lit Smart Panel Light
    分享此页面
    美元 $18.50 - 美元 $39.30
    生产所需时间:
    25-35 日
    运送方式:
    Air Freight, Sea Freight, Express
    品牌:
    SIMONS
    是否可订造:
    可以
    材料:
    Aluminum+PC
    可调亮度:
    型号编号:
    PL-Smart
    尺寸:
    595*595mm, 295*1295mm
    PF:
    >0.5, >0.9
    CCT:
    3000K-5000K
    Control Way:
    app, remote controller, smart video
    Certification:
    SAA, C-Tick, CE
    描述
    联络供应商
    描述

    Features

    1.Innovative product,Light is even, no dark area.

    2. Good quality aluminum, good heat sink.

    3. Easy to install. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.

    4. Approved by SAA, C-tick, CE, RoHs etc.

    5. Easy change CCT ( from 3000K to 5000K) through the phone.

    6. Optional to choose different communication protocols ways, wifi, wifi+bluetooth, bluetooth mesh, zigbee

    7. The light can be controlled by Tuya app or voice anywhere you will be

    8. High quality PC diffuser with high light transmittance, anti-glare and easy to be cleaned.

    9. Two different CCT chips on the PCB board, reasonable distribution, shinning evenly. Using the app to create schedules & timing to automate your home and control the light anywhere you are.

    10. High quality lens to promise higher luminous efficiency, can be 140lm/w. And adding the plastic screw on the PCB board to let the PCB won’t be drop down.

    11. Using the app to create schedules & timing to automate your home and control the light anywhere you are.

    12. Ultra-thin lamp body,lighter weight and lower transportation cost. High quality of the back plate to meet good heat sink.




    Spec & Models

    Technical Parameter

    Input Voltage200V-240VCRI (Ra>)80
    Power Factor>0.9Working Frequency50/60HZ
    Size595mm*595mm*34mm/1195mm*295mm*34mmThickness of back3mm, 2.5mm
    Temperature-20~50℃Lifetime30000h
    IP RatingIP20Back CoverIron
    Cover MaterialAluminumFrame MaterialAluminum
    Light SourceLEDLED ChipSMD 2835
    CCT3000K-5000KBeam Angle115°
    Light ColorNatural/ warm/ coldInstallationRecessed, Pendent

    Models

    Model

    Power

    Luminous Efficiency

    Luminous

    UGR

    SM-SPL6060-25-3CCT-S

    25W

    120lm/w

    3000lm

    N

    SM-SPL6060-30-3CCT-S

    30W

    120lm/w

    3600lm

    N

    SM-SPL6060-25-U-3CCT-S

    25W

    120lm/w

    3000lm

    <19

    SM-SPL6060-30-U-3CCT-S

    30W

    120lm/w

    3600lm

    <19

    SM-LPL6060-28-3CCT-S

    28W

    110lm/w

    3000lm

    N

    SM-LPL6060-36-3CCT-S

    36W

    110lm/w

    4000lm

    N

    SM-SPL12030-25-3CCT-S

    25W

    120lm/w

    3000lm

    N

    SM-SPL12030-30-3CCT-S

    30W

    120lm/w

    3600lm

    N

    SM-SPL12030-25-U-3CCT-S

    25W

    120lm/w

    3000lm

    <19

    SM-SPL12030-30-U-3CCT-S

    30W

    120lm/w

    3600lm

    <19

    SM-LPL12030-28-3CCT-S

    28W

    110lm/w

    3000lm

    N

    SM-LPL12030-36-3CCT-S

    36W

    110lm/w

    4000lm

    N

    Packaging

    Model

    Net Weight

    Gross Weight

    Qtys(per carton)

    Carton Size

    SM-SPL6060-25-3CCT-S,SM-SPL6060-30-3CCT-S,


    SM-LPL6060-28-3CCT-S,

    SM-LPL6060-36-3CCT-S

    10.2KG

    11.65KG

    6pcs

    64X64X23cm

    SM-SPL6060-25-U-3CCT-S,SM-SPL6060-30-U-3CCT-S

    12.96KG

    14.15KG

    6pcs

    64X64X23cm

    SM-SPL12030-25-3CCT-S,SM-SPL12030-30-3CCT-S,


    SM-LPL12030-28-3CCT-S, SM-LPL12030-36-3CCT-S

    11.1KG

    12.6KG

    6pcs

    124X34X23cm

    SM-SPL12030-25-U-3CCT-S,SM-SPL12030-30-U-3CCT-S

    13.62KG

    15.1KG

    6pcs

    124X34X23cm
