Brake Drum/Disc Cutting Machine
分享此页面
生产所需时间:
15 日
产品型号:
CR0107
品牌名称:
SYLVAN
颜色:
Green
尺寸:
50 x 50 x 40
港口:
Tianjin
付款方式:
TT, Western Union, PayPal
最低订购数量:
1
描述
联络供应商
描述

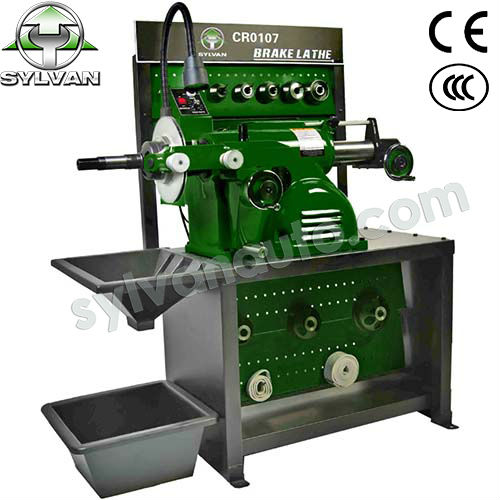

CR0107 Brake Drum/Disc Cutting Machine
Description
-The lathe uses precision electric DC servo motors designed to meet the demanding requirement of industrial motion control
-The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability
-Infinitely variable spindle and cross feed speed settings allow for quick rough and precision finish cuts
-A convenient top storage tray means you can easy to take your favorite adapters and tools
-Separate motors on the drum and rotor feed help maximize the main motor's efficiency

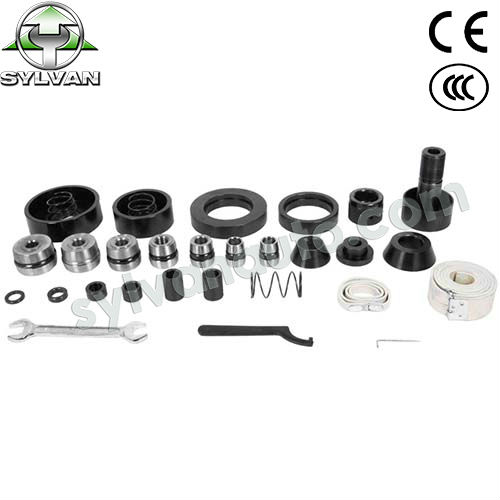

-The variety of adapters enables you to machine all standard and composite rotors for foreign and domestic cars and light trucks
-Positive rake cutter tip angle provides for a one pass finish virtually every time,allowing you to complete your work fast
Features
-Twin Cuuter tools and quick drum-to-rotor changeover
-Adjustable spindle speeds(if desired) allow for quick rough cut/finish cut settings.
-Infinitely adjustable spindle-feed gear box.
-User-friendly ergonomics.
-Supports drums or rotors up to 100lbs,using the standardone inch(25.4)arbor,or up to 200lbs.using the -optional1-7/8”inch(47.63mm)arbor
Technical Data
  • Model: CR0107
  • Spindle Travel 6-7/8” (175mm)
  • Spindle speed 70,88,118 rpm
  • Rotor diameter 7" -15" (180mm-381mm)
  • Rotor thickness 1-7/8” (48mm)
  • Drum diameter 6" -28" (152mm-711mm)
  • Drum depth 6-7/8" (175mm)
  • Motor:1HP,OPTIONAL 220 – 240vac, 50-60HZ 1PH (0.75KW) or 3HP,OPTIONAL 380 – 400vac, 50-60HZ 1PH (075KW)
  • Gross weight:290 kg
  • Dimension (L×W×H):970×920×1140mm
