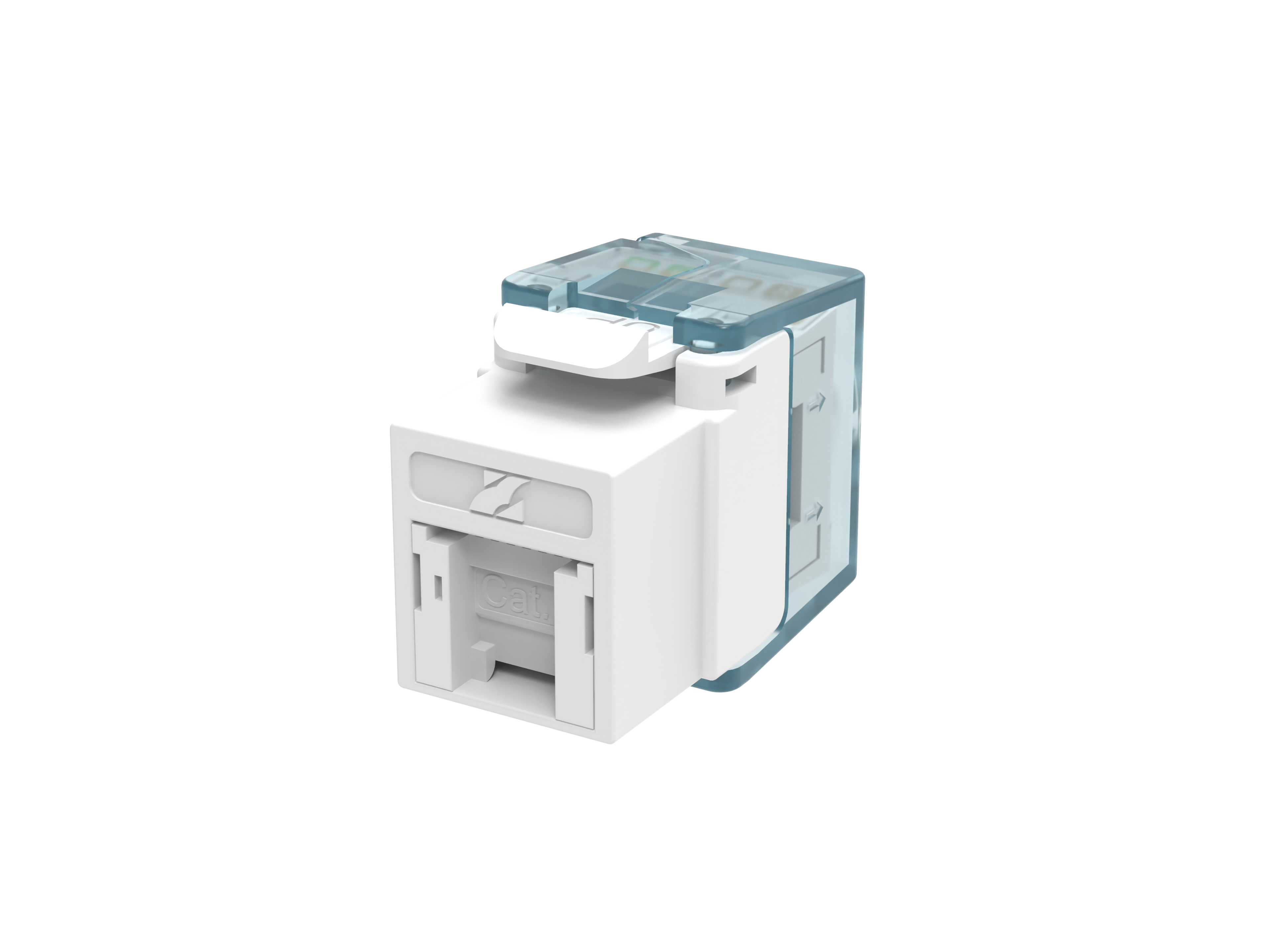

CAT6 Unshielded Module
品牌:
ZHAOLONG
Reference Standards:
IEC 60603-7, ISO/IEC 11801-1, YD/T 926.3, TIA-568.2-D
PIN:
Phosphor bronze, 50 μ" gold plated
IDC reed:
Phosphor bronze, tinned 200 μ"
Plastic part:
ABS+PC, comply with UL 94V-0
Plug life:
≥ 2500 times
Wiring life:
≥ 250 times
Operating temperature:
- 20 ℃ ～ 60 ℃
Storage temperature:
- 40 ℃ ～ 70 ℃
Relative humidity:
10 % ～ 90 %
Insulation resistance:
≥ 500 MΩ
Withstand voltage:
1000 V DC
DC resistance:
≤ 100 mΩ
Contact resistance:
≤ 20 mΩ
描述
联络供应商
描述
PCB adopts optimized compensation design, high crosstalk margin
Support short link, support 6 connections
Tool-free termination, convenient and fast
Available in 8 colors to suit different needs
Uses environmentally friendly materials and meets UL, REACH, and RoHS requirements
