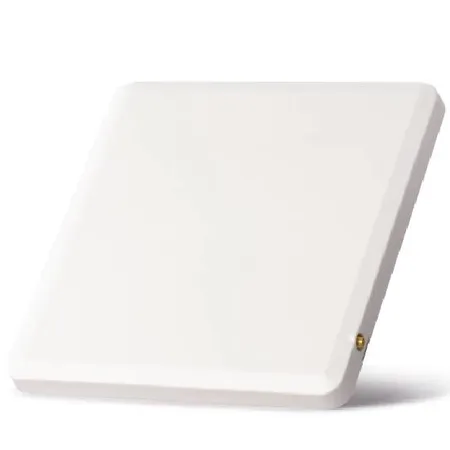

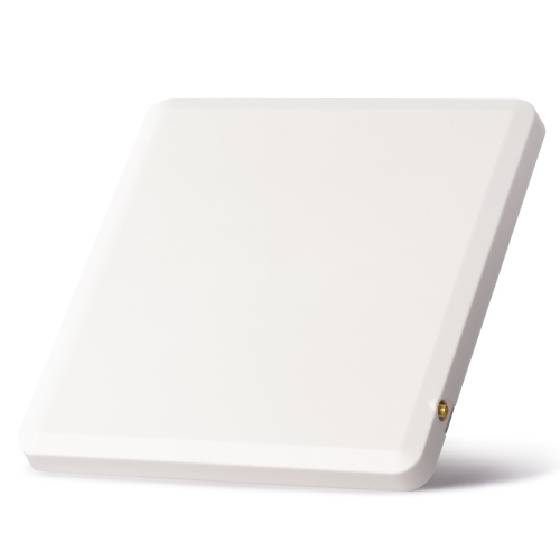

CS776 RFID Antenna

CS776 antenna is a monostatic antenna for ultra long-range high sensitivity tag reading.  The antenna has industrial-leading circular polarization properties to enable the best read of tags of all orientations as they approach the sweet zone of the antenna.

Product Features

• Read range with CS463-2  reader and Monza R6 Dogbone tag, 22 meters outdoors
• Frequency range CS776-1: 865-868Mhz  CS776-2: 902-928Mhz
• Antenna gain 6 dBiC
• Maximum VSWR  < 1.1
• Beamwidth (3 dB)  58 degrees
• Front to back ratio  20 dB
• Polarization -Circular Right-hand
• Maximum input power  10 Watts
• Input impedance  50ohms
• Axial ratio 1.2 dB
• Physical dimension 250 x 250 x 20mm    Weight 0.69 kgs
• Antenna connection  SMA  (cable excluded)
• Radome UV-resistant ASA
• Mounting - 2 x 2 mounting stud, horizontal separation 3.94 (100mm), vertical separation 3.94" (100mm), M4 studs with pitch 0.7mm
• Operating Temp -20℃  to +55℃   Storage Temp -40℃ to +70℃   Humidty  10% to 95% Non-condensing
• Environmental rating IP67
