    CYLINDRICAL SCREEN PRINTER FOR 20L PAIL, LARGE CONTAINER
    分享此页面
    美元 $5500.00 - 美元 $6200.00
    生产所需时间:
    21 日
    运送方式:
    BY SEA
    品牌:
    PRINTSO
    型号编号:
    PS-1200S
    是否可订造:
    可以
    尺寸:
    PRINTING AREA : Ø400mm x 550mm(H)
    重量:
    400KG
    描述
    联络供应商
    描述

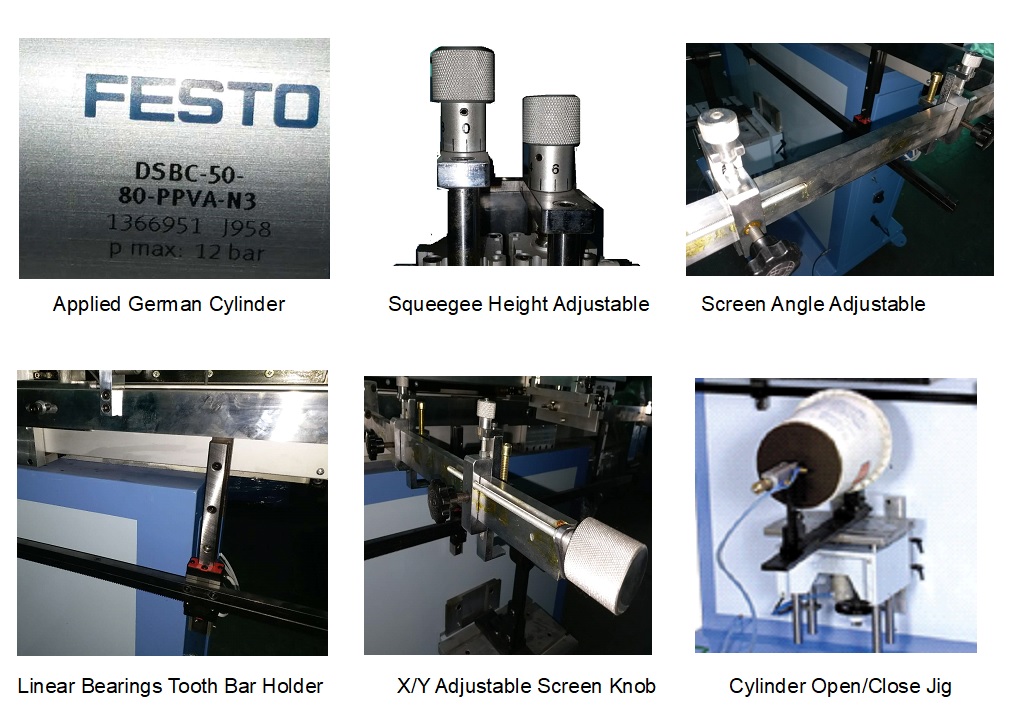

    Features:

    Strong & stable screen arm design

    Advanced computerized control system

    Multi program keys printing programs

    User friendly control panel with built-in LED digital counter

    Stable and heavy duty ascent / descent working stable

    Applied Linear Tracking Rail guarding the screen arm left / right movement

    Link with cylinder controlled jig

    Enable using large screen frame

    Balanced gear bar for easy setup and positioning

    Guarded foot paddle

    Applied German FESTO cylinders

    Anodized aluminum parts

    Strong diecast body structure



    SPECIFCATIONS



    Model no

    :

    PS-1200S

    No. of color

    :

    1 color

    Max. printing stroke

    :

    1230mm

    Max. printing area

    :

    Ø400mm x 550mm(H)

    Max. speed

    :

    6 cycles per min.

    Power voltage

    :

    100-240V, 50/60Hz

    Power consumption

    :

    55W

    Air pressure

    :

    0.5-0.65 Mpa/cm²

    Air consumption

    :

    9 L/min.

    Machine dimension

    :

    1800mm x 1180mm x 1750mm

    Net weight

    :

    400KG
