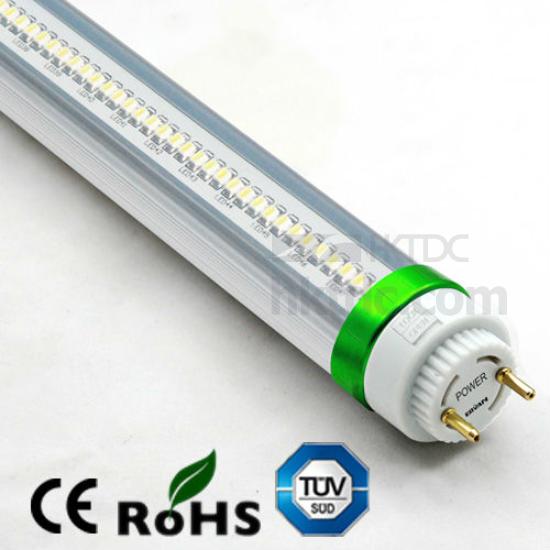

• Top-performing LED tube with double-sided PC lens and light-emitting LED tube.
• More energy efficiency and space saving as one tube does the task of two.
• Especially applicable for refrigerators, freezers, ATM machine, subway, light box, etc.

Advantage:

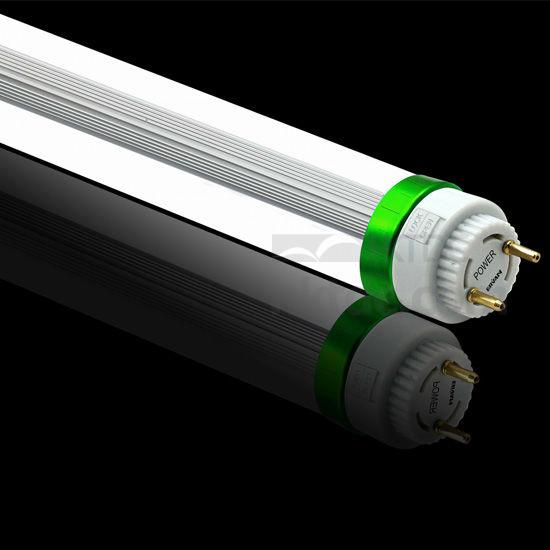

• With lockable rotating end cap.
• Significant energy savings and space saving.

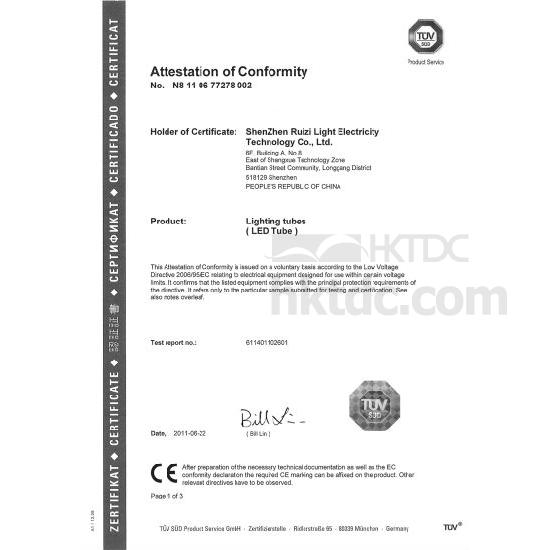

• TUV,UL,cUL,RoHS certified.
• Isolated power supply.
• European safety wired.
• Saving 70% on energy costs.
• 50,000hrs life span.
• Maintenance free.
• Mercury free.
• Wide input: AC100-240V.
• shock/vibration resistant.
• Plastic end caps ensure to pass 4000V HI-POT test.
• Special circuit design, each LED work separately, avoiding the single broken LED influence the whole tube working.

Electrical specifications:

• Model, power, dimension (mm), LED qty:
  L06G, 15W, 26 x 588 (2FT), 144 piece(s).
  L06G, 20W, 26 x 1198 (4FT), 216 piece(s).
  L06G, 24W, 26 x 1498 (5FT), 240 piece(s).
• Luminous (frosted lens), (clear lens):
  1500lm±10%, 1650lm±10%.
  200lm±10%, 2200lm±10%.
  2400lm±10%, 2600lm±10%.
• Operation: temperature: -20°C to 40°C.
• Voltage: AC100V-240V.
• Frequency: 50Hz/60Hz.
• Power factor: >0.95.
• Power supply efficiency: >90%.

Photometric specifications:

• LED luminous efficiency: up to 100lm/w.
• CRL: Ra. >70/80.
• CCT: warm white 3000K, daylight white 4000K, pure white 5500K, cold white 6500K

Mechanical specification:

• Housing: AL+high strength PC (clear/frosted).
• Length: 26 x 588mm/26 x 1198mm/26 x 1498mm.
• Weight: 178.2g/600mm.
• 416.6g/1200mm.
• 510g/1500mm.

Packing:

• Length, qty/box, inner box size (cm):
  0.6m, 25pcs, 72 x 24 x 24.
  1.2m, 25pcs, 133 x 24 x 24.
  1.5m, 25pcs, 163 x 24 x 24.
• Qty./ctn, ctn size (cm), volume weight:
  50pcs, 74 x 48 x 26, 18.5kg.
  50pcs, 135 x 48 x 26, 34kg.
  50pcs, 165 x 48 x 26, 41kg.
• Accessory: fuse.

Application:

• Refrigerators.
• Freezers.
• Indoor & outdoor advertisement light box.
• ATM machine.
• Subway.

Installation:

• Note: make sure the power is turned off before installation.
• When the led tube is replaced in a standard fluorescent tube batten, the starter must be removed, and replaced by the enclosed fuse.
• Attention: only suitable for magnetic ballast, not electronic ballast.
• Electronic ballast must be by-passed by a registered electrician.
• Warranty: 3 years since the purchase date.
