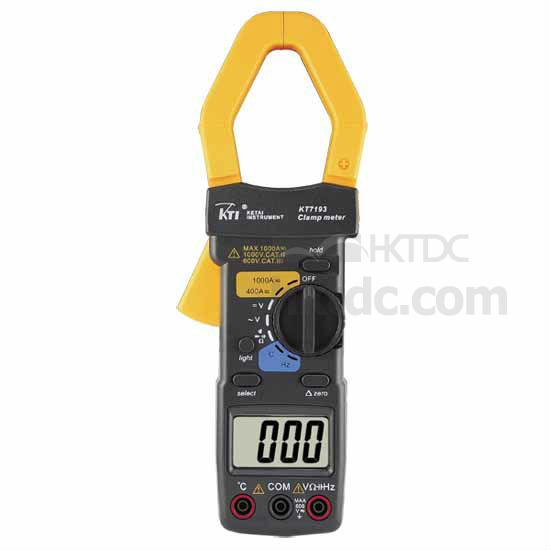

Clamp Meter

产品型号:

KT7193

品牌名称:

KTI

颜色:

Grey

尺寸:

280 x 100 x 42mm

最低订购数量:

500

描述

联络供应商

3 3/4 digits 3999 count.
Extra high DC/AC current measurement.
Data hold to capture measurements.
Backlit display is easy to read under any light condition.
AC current measurement up to 2000A.
DC current measurement up to 1500A.
DC/AC voltage, resistance, capacitance, frequency and temperature measurement.
Diode and continuity test.
Accessories included: 9V battery, carrying case, test leads, K type temperature probe, English manual, gift box.
Jaw opening 55mm.
DC current: 400/1000A (1500A) ± (0.7%+1d).
AC current: 400/1000A (2000A) ± (0.7%+1d).
DC voltage: 0.4/4/40/400/1000V± (0.7%+1d), 1000V± (0.8%+3d).
AC voltage: 4/40/400/700V± (0.8%+5d), 700V± (1.0%+10d).
Capacitance: : 4n/40n/400n/4μ/100μF± (4.0%+10d).
Resistance: 400/4K/40K/400K/4M/40MΩ± (1.2%+1d), 40MΩ± (3%+3d).
Continuity and diode test buzzer beeps: lower than 90Ω.
Frequency: 40/400/4K/40K/2MHz± (4.0%+10d).
Temperature: 400~750℃ (752~1382oF) ± (1.0%+5d). 0~400℃ (32~752oF) ± (1.0%+3d).-40~0℃ (-40~32oF) ± (1.0%+6d).
Operating temperature: 0~40℃ (32~104 oF) at RH: <80%.
Dimensions: 265 x 95 x 42mm.
Weight: approx. 500g included battery.
Measurement category: EN 61010-1, CAT III 600V; CATII 1000V.
