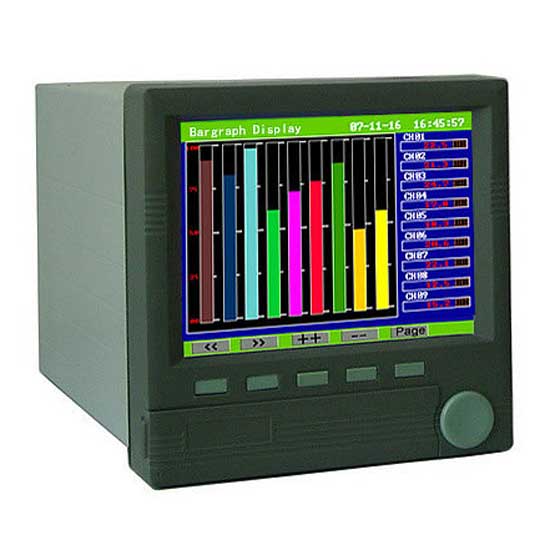

This is a color paperless recorder (up to 16 channels) which uses the advanced technology to promise high quality and performance. The history data can be stored in a USB memory, transferred to PCs directly by a USB flash drive with our data analysis software and also be printed by our data analysis software to output the data in Excel curve formats. Users can access the data on the screen as well as on site from a remote place via RS485 and RS232 serial interfaces. MODBUS-RTU communication protocol is available for configuration with MCGS and other professional software.

• Isolated structure.
• High accuracy.
• Universal use.
• To be aimed to monitor, record, analysis the processes in various industry application.
• Color LCD display: 32 x 240 pixels and 5.6 inches.
• Universal input signal: T.C. RTD, mA DC, mV DC and so on.
• Photoelectrical isolation input with strong anti-interference ability.
• High accuracy: +-(0.2%FS+1) digit.
• Built-in 8MB memory for long term data record.
• Up to 16-point recording (option).
• Maximum 16 point relay output (option).
• 5V DC, 12V DC, 24V DC auxiliary power supply for sensors and transmitters (option).
• Could select 4-20mA, 0-10mA, 0-5V DC or 1-5V DC as retransmission.
• Up to 16 channels (option).
• Plug and play and easy to operation.
• Directly connect with a mini printer to print history or real time data in digital or curve formats.
• Certification: CE and RoHS.
