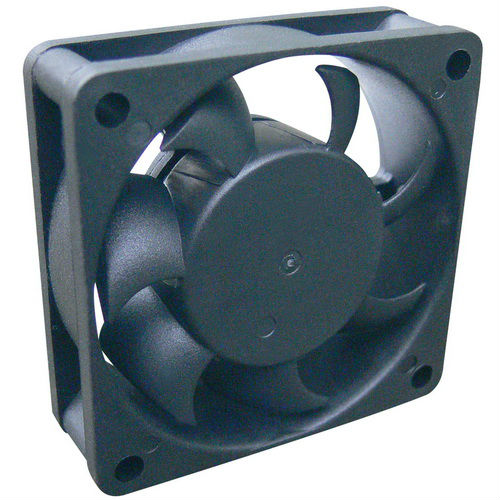

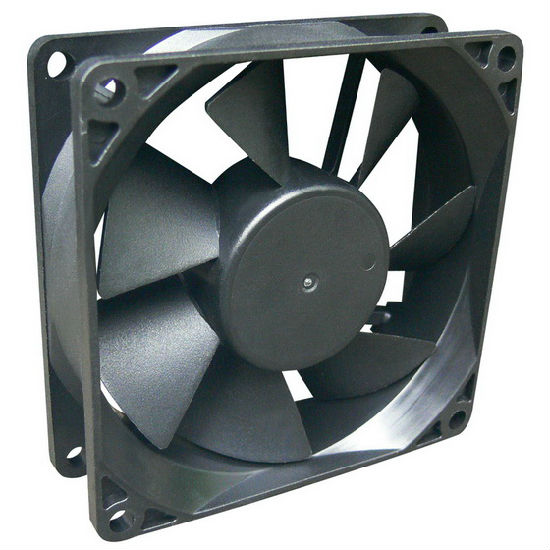

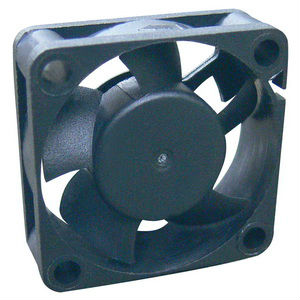

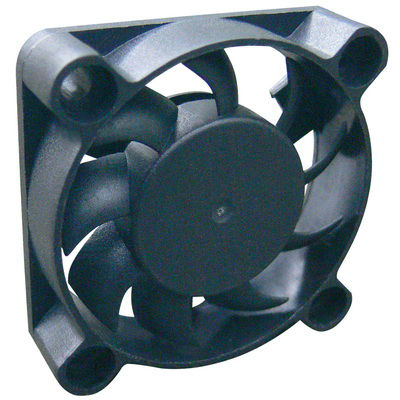

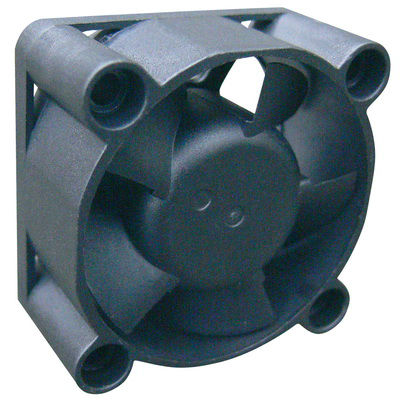

Cooling Fan, DC Fan

生产所需时间:

10 日

品牌名称:

描述

联络供应商

Rated voltage: DC 5V, 12V, 24V, 48V.
It have various of sizes ranging from:25*25*07mm to172*172*51mm.
Type: ball bearing, sleeve bearing.
Safety approvals: CE, TUV, UL, CUL, CCC.
Electric strength: 1mA max. at 1000V AC for 1 min between lead wire and frame.
Insulation resistance: 10M ohm between lead wire and frame (DC 500V).
Life expectancy (ball bearing): 50,000h rain at 25 degree C, relative humidity: 65%+/-20%.
Life expectancy (sleeve bearing): ＞30,000h rain at 25 degree C, relative humidity: 65%+/-20%.
Operation temperature: -10 to 70℃.
Storage temperature: -40 to 75℃.
Lead wire: UL1007 (AWG18-30).
Protection: motor protection and polarity protection.
Plastic material: black PBT (UL 94v-0) glass filled.
Frame: plastic, impeller: plastic.
Function: function type is optional.
