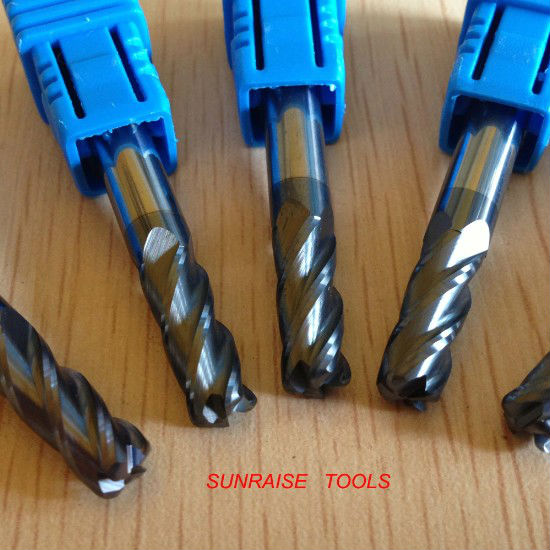

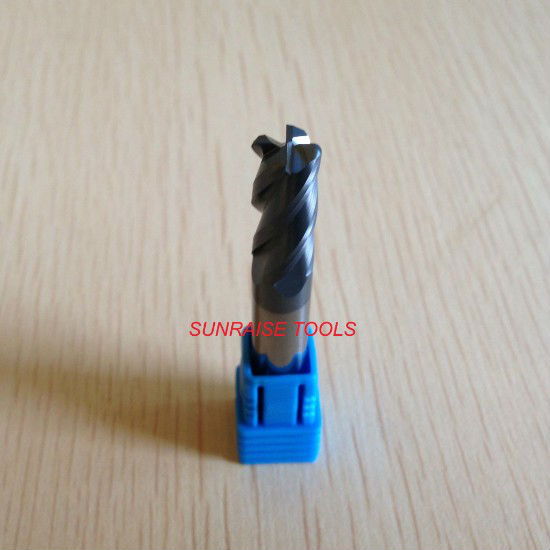

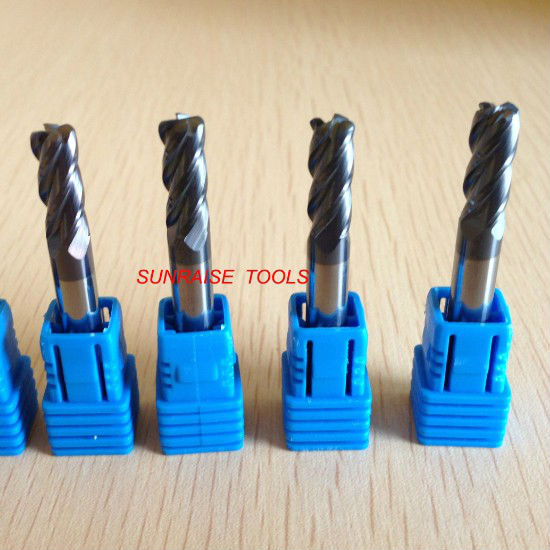

Carbide corner radius end mill

1: Product detail information.

• R1.0 D8mm 60mm length carbide corner radius end mill 4 flutes HRC45 with coating, good quality, CNC tools cutter, Helix angle: 30° (35°; 45° option) up to: HRC60-65 high speed.
• Material tungsten: cobalt alloy.
• Diameter: 8mm.
• Type: corner radius end mill.
• Coating: TiAlN.
• Overall length: 60mm.
• Is customized: yes.
• Hardness: HRC45.
• Coating color: black.

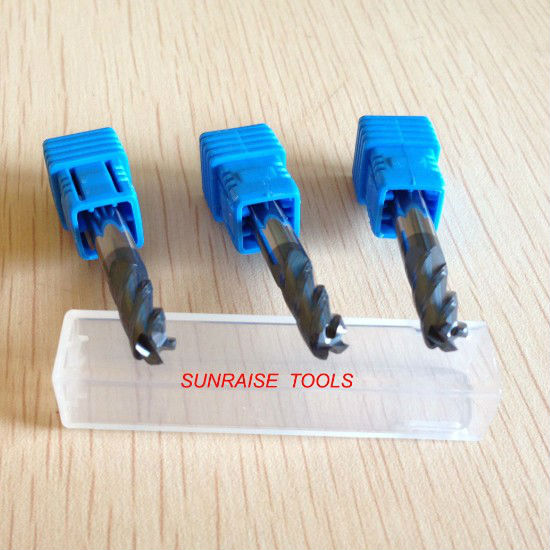

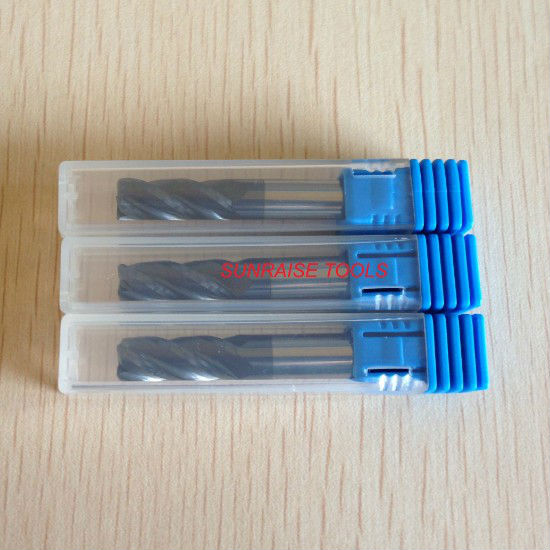

• Packing: in plastic box.

2: Made and material:
a. Super-fine micro grain carbide rod:
WC=87.5%, Co=12.5%, TRS>4200N/mm2; Hardness>92.5HRA, grain size: 0.5um; high quality of wearability and impact
b. Made by world latest 5-AXIS tools grinding machine, promise the quality and precision of cutter.
c. Super TiAlN, reduce the coefficient of friction, and improve the tools life much.
d. Each end mill is inspected by “Zoller” measuring and inspected machine.
e. We accept the specification as your requirement.
f. Work piece: carbon steel, alloy steel, cast steel, tooling steel, mould steel, heat-treatment steel. Aluminum alloy steel, non ferrous alloy.
g: made of Germany ultra fine particles of carbide tungsten steel. Use Walter, ANCA CNC machine for production.
Each tools with Balzers coating. Hardness HRC45, HRC55, HRC63, grade for choice. Large stock, 2 flutes or 4 flutes, short delivery time.

3:More size for you choice.
Dia Meter x R x Shank x Flute length x Overall length.
4 0.5 4 8 50L
4 1 4 8 50L
5 0.5 5 10 50L
6 0.2 6 12 50L
6 0.5 6 12 50L
6 1 6 12 50L
8 0.5 8 16 60L
8 1 8 16 60L
8 1.5 8 16 60L
10 1 10 20 75L
10 2 10 20 75L
12 1 12 24 75L
12 2 12 24 75L

For more information and price list please contact us.
