TRANSMITTER

• Operating Voltage: DC 6V
• Operating Frequency: 433Mhz
• Vibration Resistance: 334
• Chip Type: EV1527
• Modulation: ASK (Stable, less interference)
• Encode Type: Group Coding
• Battery Type: 2pcs 3v 2016 button cells(not included)
• Remote Distance: 20m(Theoretical value)
• Ambient TEMP: -30℃ -70℃, Humidity<95%
• Product DIM: 60x30x12mm

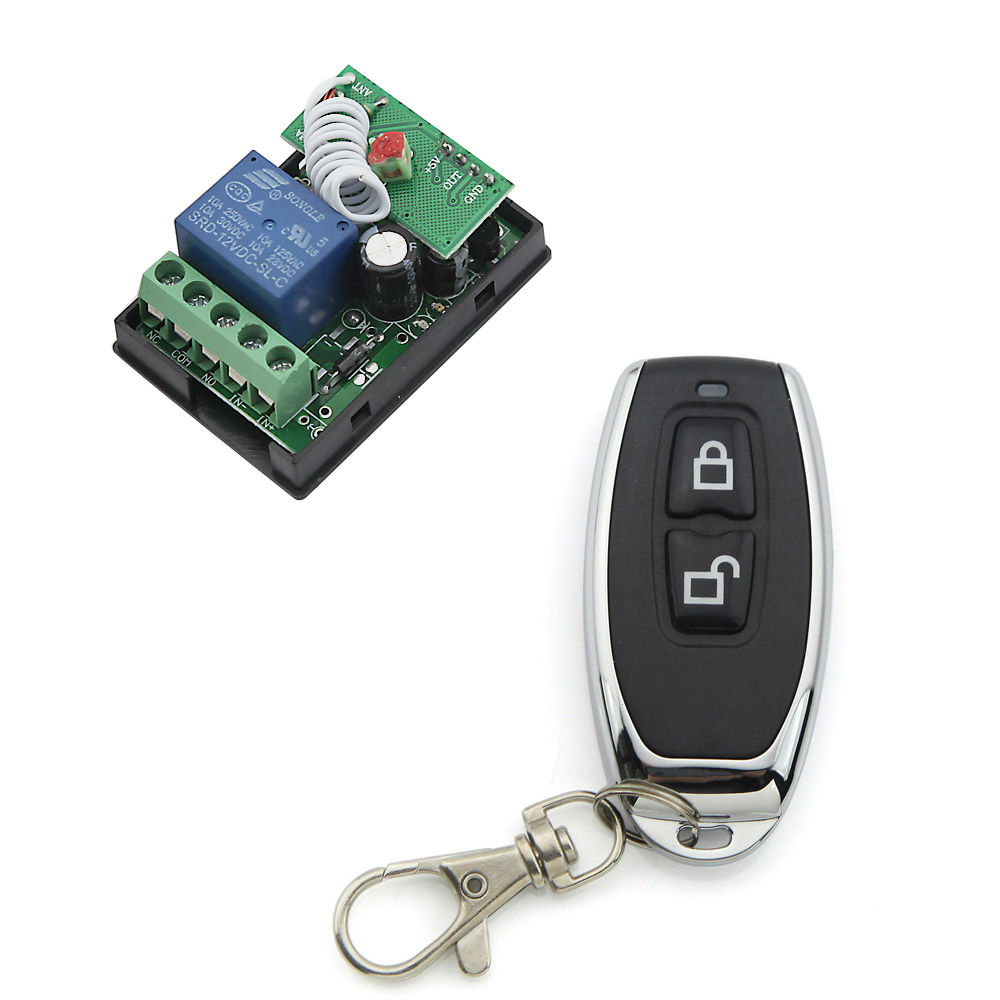

RECEIVER

• Input Voltage: DC 12V
• Operating Frequency: 433Mhz
• Coding Way: Intelligent Learning
• Output Type: Active Output
• Max load: 10A
• Ambient TEMP: -30℃-70℃, Humidity<95%
• Factory Default: Interlocked
• Board DIM: 45x30.5x17mm
• Case DIM: 65x37x22mm

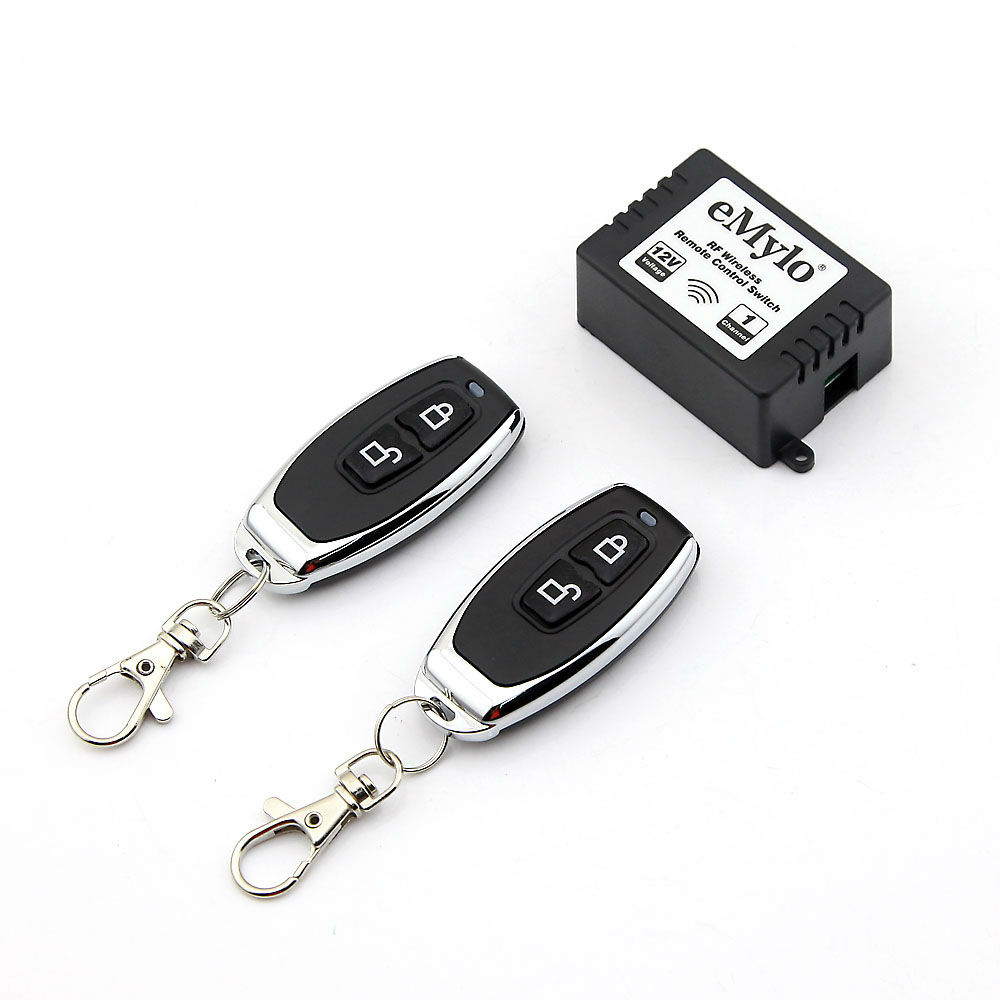

Package Includes:
2X Transmitters (Battery is not included)
1X Receiver
1X English Manual

Three modes:
Inching: press&hold one button, the reply turns on, release the button, the reply turns off.
Self-lock: press the one button, the reply turns on, press the button again, the reply turns off.
Interlock: press the one button, the reply turns on, press the next button, the reply turns off.

Steps:
Clear:
Press&hold the program button on the receiver, the red light will turn on and stay on for about 5 seconds.

Choose the mode:
inching/momentary:release the button after the light flashes once.
Self-lock/latched:release the button after the light flashes twice.
Inter-lock/toggle:release the button after the light flashes three times.

Link the remote control:
Press the program button on the receiver until the red light turns on, and then release the program button, the red light will stay on.
Press a transmitter button, and the red light will flash, at this time, it means finished linking.
