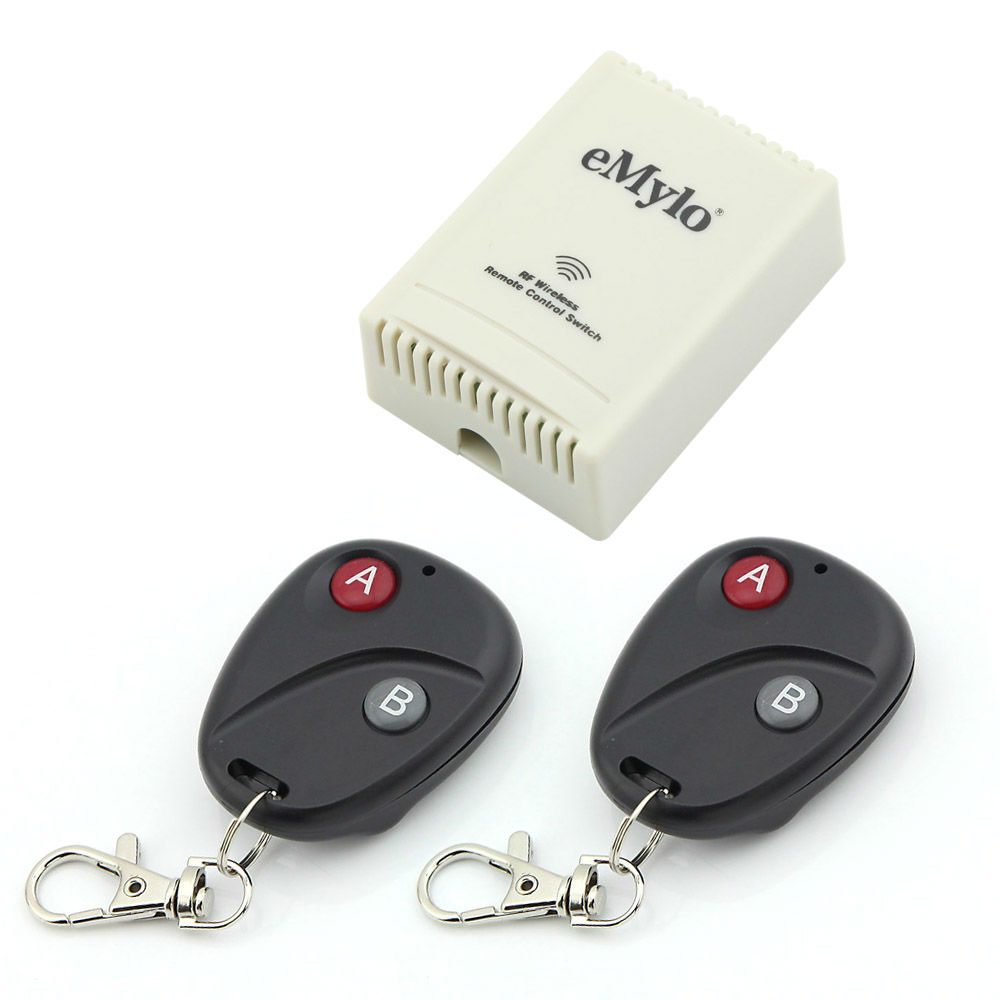

DC 12V 2Channel 433Mhz RF Wireless Relay with Transmitter
分享此页面
生产所需时间:
14 日
产品型号:
EBM113A2E
品牌名称:
eMylo
颜色:
Blue
尺寸:
50x39x12mm
付款方式:
Paypal
最低订购数量:
100
是否有包装:
是否可定制:
触点负载:
小功率
用途:
通用
描述
联络供应商
描述

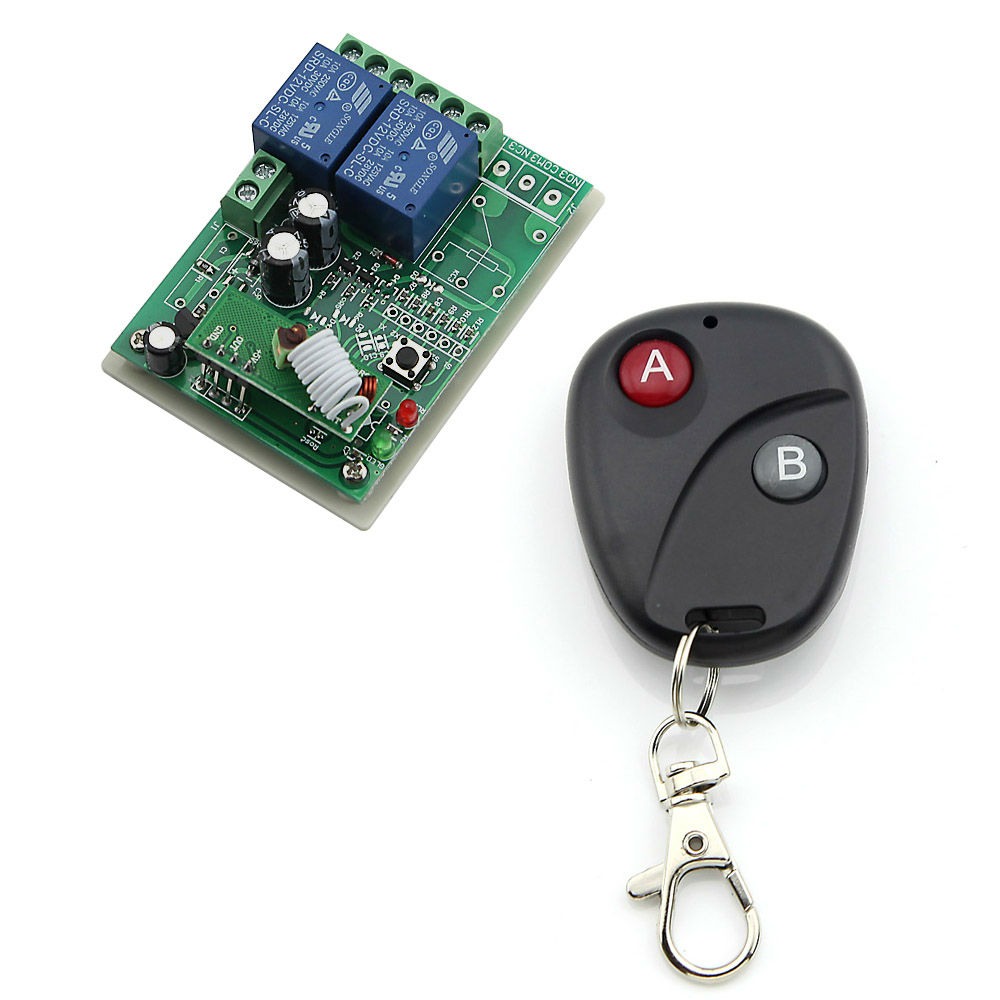

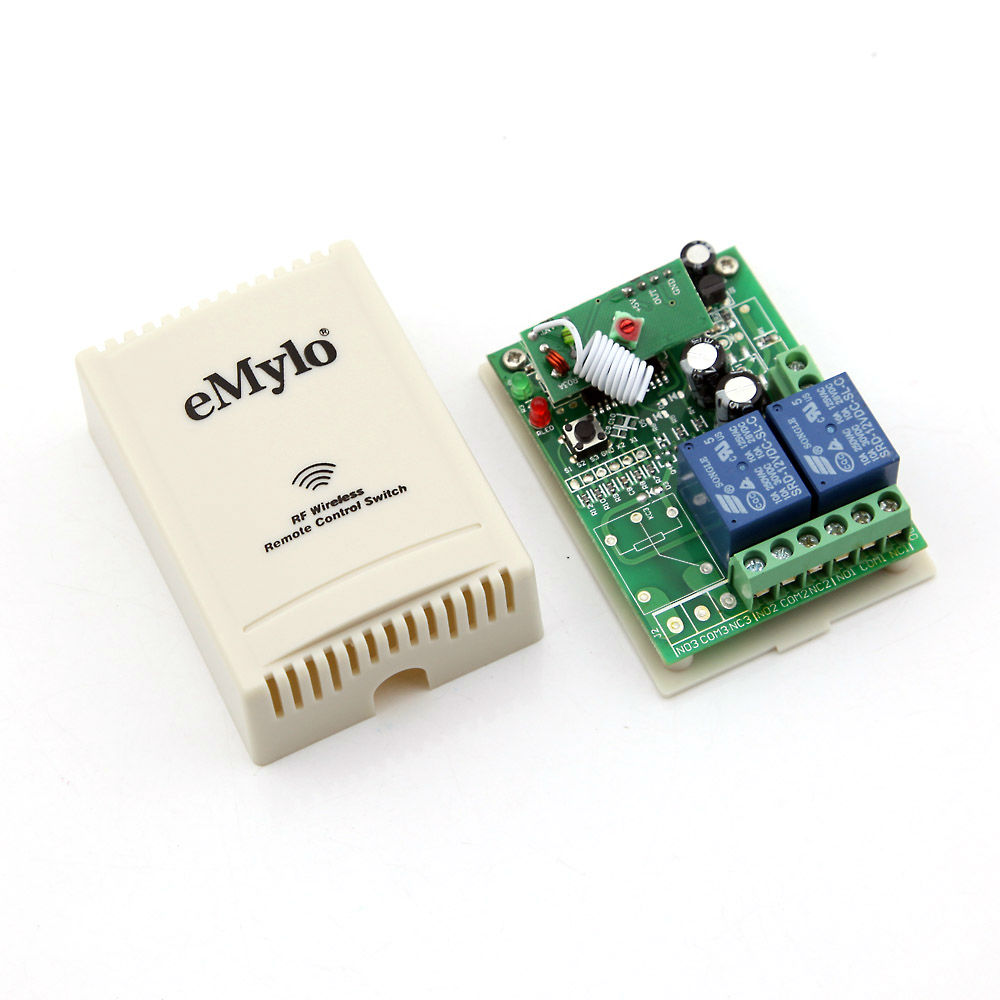

RECEIVER
  • Input Voltage: DC 12V
  • Operating Frequency: 433Mhz
  • Operation Way: Inching, Self-locking, Interlocked
  • Coding Way: Intelligent Learning
  • Output Type: Passive Output
  • Max load: 10A
  • Ambient TEMP: -20℃ -65℃, Humidity<95%
  • Factory Default: Self-locking
  • Board DIM: 69x49x17mm
  • Case DIM: 75x65x29mm

TRANSMITTER
  • Operating Voltage: DC 12V
  • Operating Frequency: 433Mhz
  • Vibration Resistance: 126
  • Chip Type: 2260
  • Modulation: ASK (Stable, less interference)
  • Encode Type: Welding code
  • Battery Type: 12V 27A(not included)
  • Remote Distance: 20m (Theoretical value)
  • Ambient TEMP: -30℃ -70℃ , Humidity<95%
  • Product DIM: 50x39x12mm

Package Includes:
2X Transmitters (Battery is not included)
1X Receiver
1 x English manual

Two modes:
Inching: press&hold one button, the reply turns on, release the button, the reply turns off.
Self-lock: press the one button, the reply turns on, press the button again, the reply turns off.

Steps:
Clear:
Press&hold the program button on the receiver, the red light will turn on and stay on for about 5 seconds.

Choose the mode:
inching//momentary:release the button after the light flashes three times.
Self-lock/latched:release the button after the light flashes twice.
Inter-lock/toggle:release the button after the light flashes once.

Link the remote control:
Press the program button on the receiver until the red light turns on, and then release the program button, the red light will stay on.
Press a transmitter button, and the red light will flash, at this time, it means finished linking.
