1. 90° Beam angle
2. IP54, DIM to Warm, CRI80, 3000K 4000K 5000K 5700K
3. Size: diameter110*40mm(DL96 10W), Cutout90-95mm diameter190*40mm(DL96 18W), Cutout160-170mm
   diameter228*40mm(DL96 25W), Cutout200-210mm
4. diameter110*39mm(DL105 10W), Cutout90-95mm diameter190*43.5mm(DL105 18W), Cutout160-170mm
   diameter228*43.5mm(DL105 25W), Cutout200-210mm

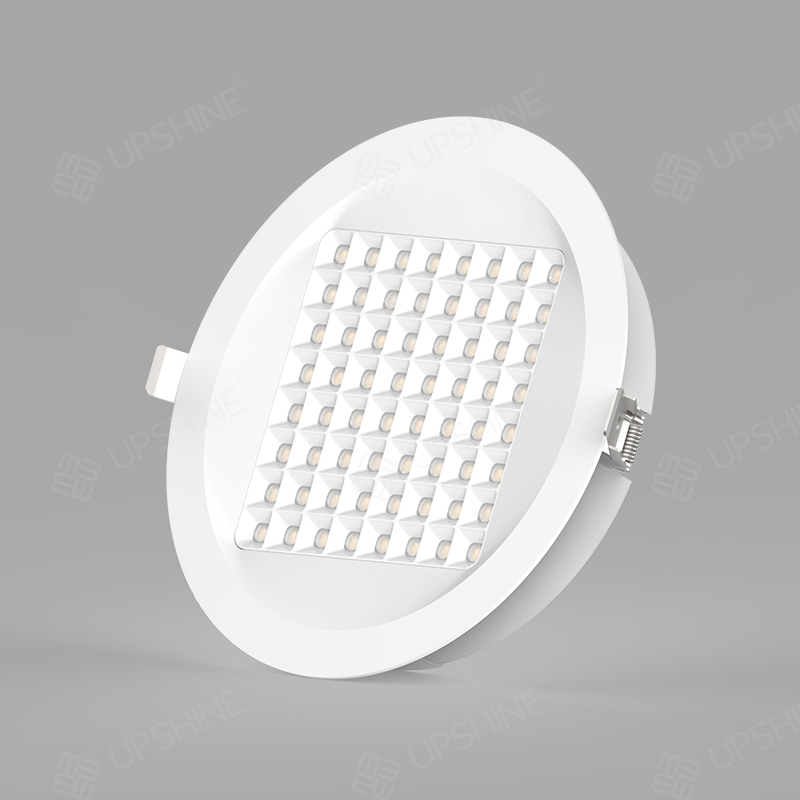

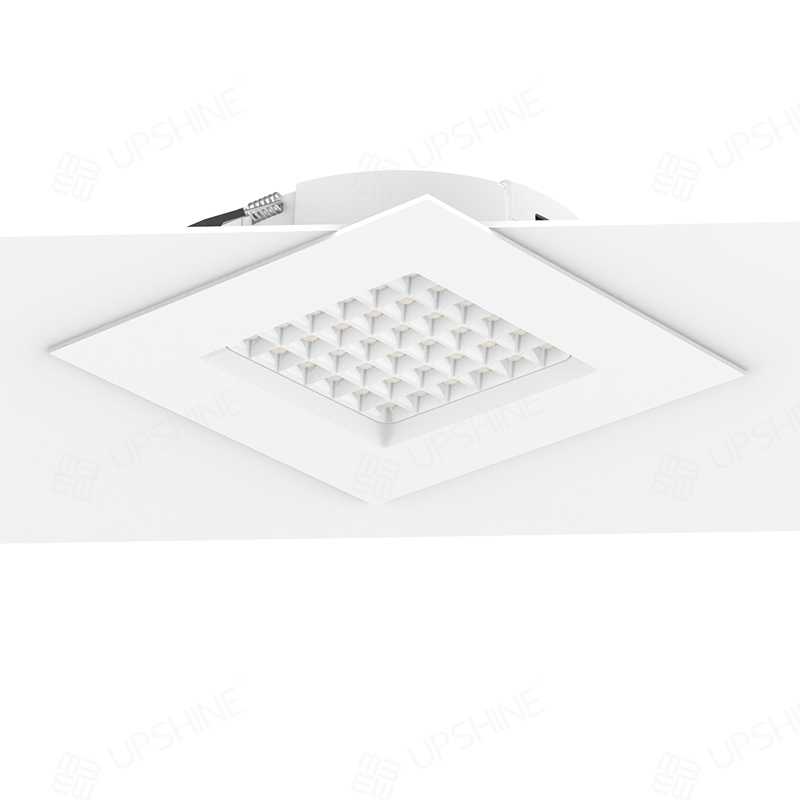

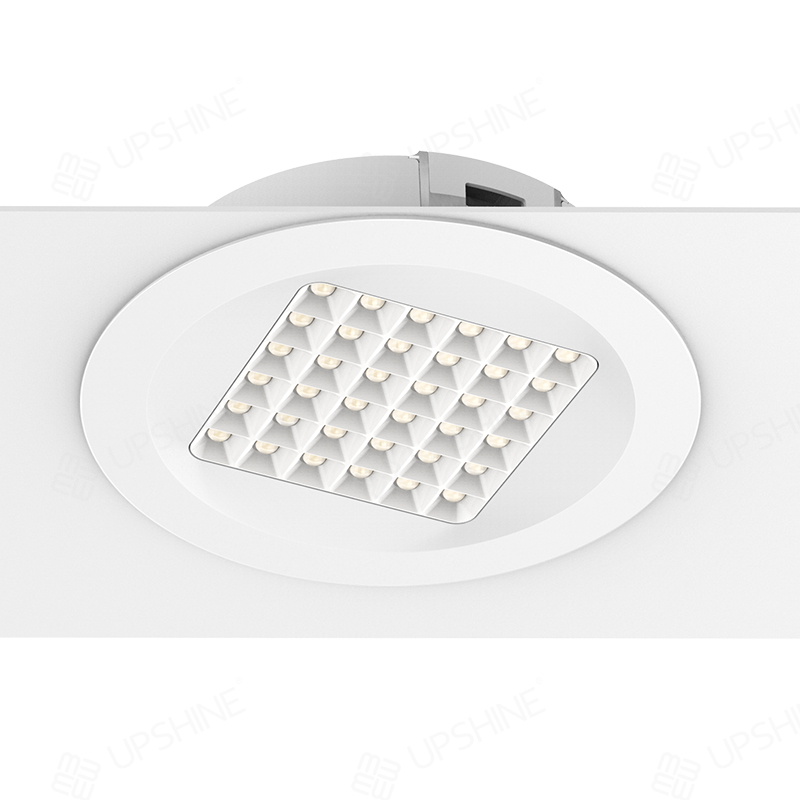

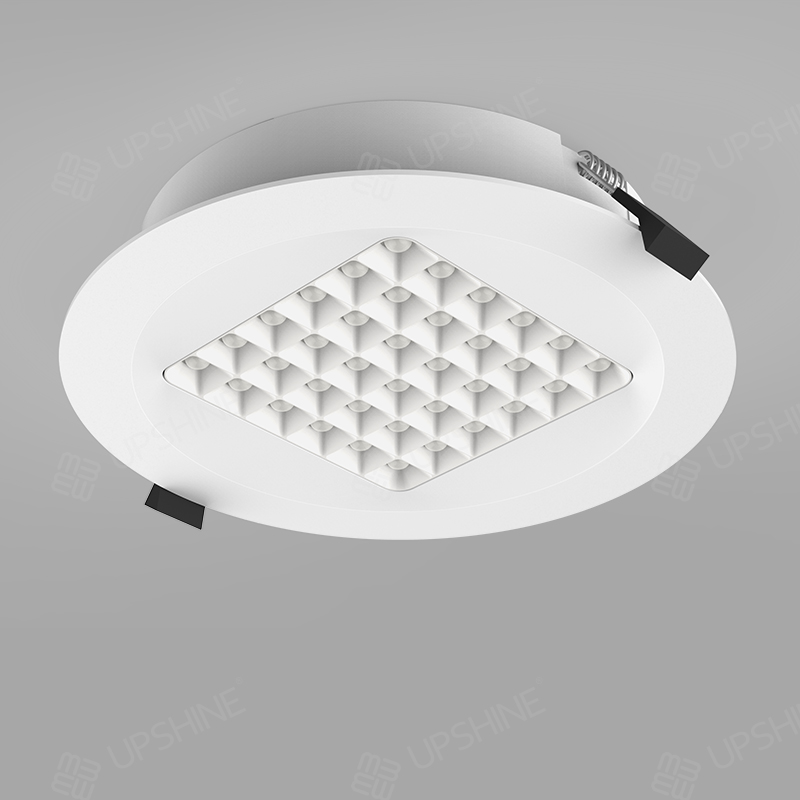

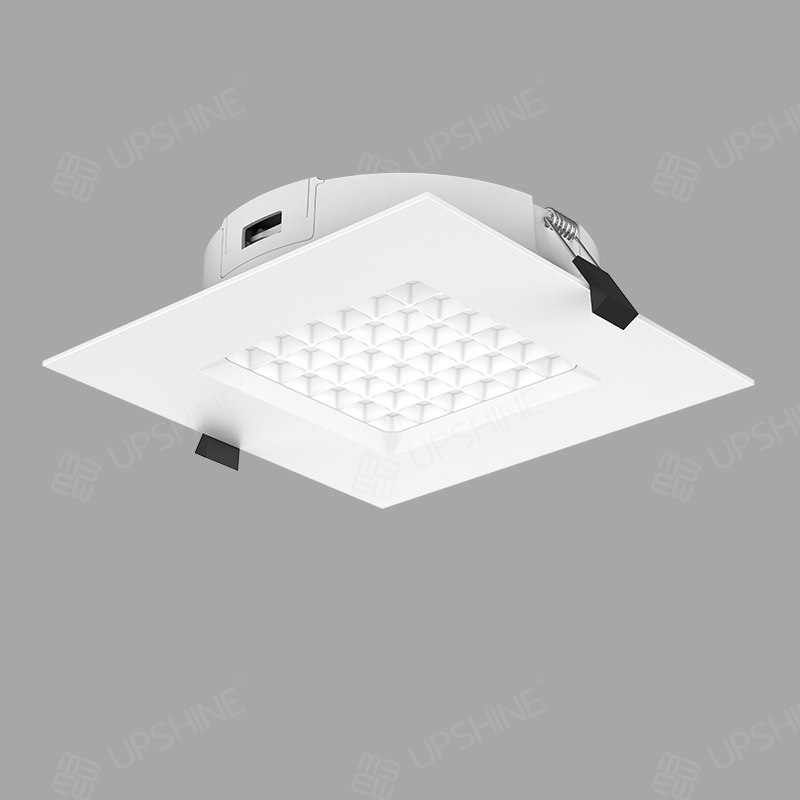

It's an ultra thin integrated anti-glare grilling
lens downlight. The height is less than 40mm
with built-in driver, suitable for various
applications. Grilling design effectively reduce
the UGR index. Luminous efficiency 110lm/
w. Equipped with push button looping
connection terminal (LL-NN-EE), the simple
structure provides easy access to installation
and high security.

● Up to 70% energy saving compared to
standard CFL
● Long lifetime of 40,000 hours
● Triac dim
● 90°wide beam angle
●90-95mm cutout
● CCT: 3000K 4000K 5000K 5700K
● No UV/IR light
● Environment friendly, without Mercury or any
other hazardous substances
Application notes
● IP54 at room side for indoor use only
● Professional electrician for installation only
● Switch off before installation
● Do not touch when in use
● Keep away from hot steam and corrosive gas

Application Areas:
It is designed for general lighting applications
in office, supermarket, shop, school, hotel, etc.
It is also widely used for public areas, such as
stairway, lobby, reception, corridors etc.
