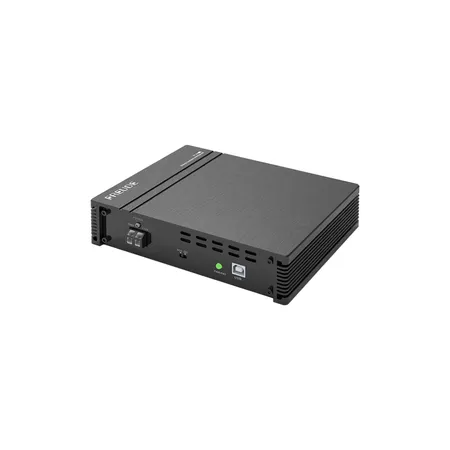

FP-6A V2

6ch DSP with 4ch Amplifier

■ 6-ch output, with 4-ch featuring power amplifier output
■ Built-in Class-AB amplifier, capable of delivering up to 70W peak power
■ 31-band EQ adjustment, capable of saving 9 preset music scenes
■ Ultra-low distortion, with total harmonic distortion ≤ 0.01%
■ High-quality electronic components for an ultimate sound quality experience
■ Full aluminum body for excellent heat dissipation
■ Plug & play, lossless installation

Model:	FP-6A V2
Type:	6 ch DSP with 4 ch Amplifier
Power:	DC 11 V ～ 15.5 V
Input Signal Type:	4 ch high level, 2 ch Low Level, Digital BT
Dynamic Range:	≥94 dB
S/N:	≥94 dB
T.H.D.:	≤0.01%
Frequency Response:	20 Hz ~ 20k Hz
Decoding Capability:	24 bit / 44.1k Hz
Max Power:	70 W x 4 ch
Nom Power:	35 W x 8 ch
Output Signal Type:	6 ch Low Level Output, 4 ch High Level Output
Output Signal EQ:	31 Levels EQ
Net Weight:	1.4 kg
Dimension(LxWxH;mm):	189 x 156 x 45
