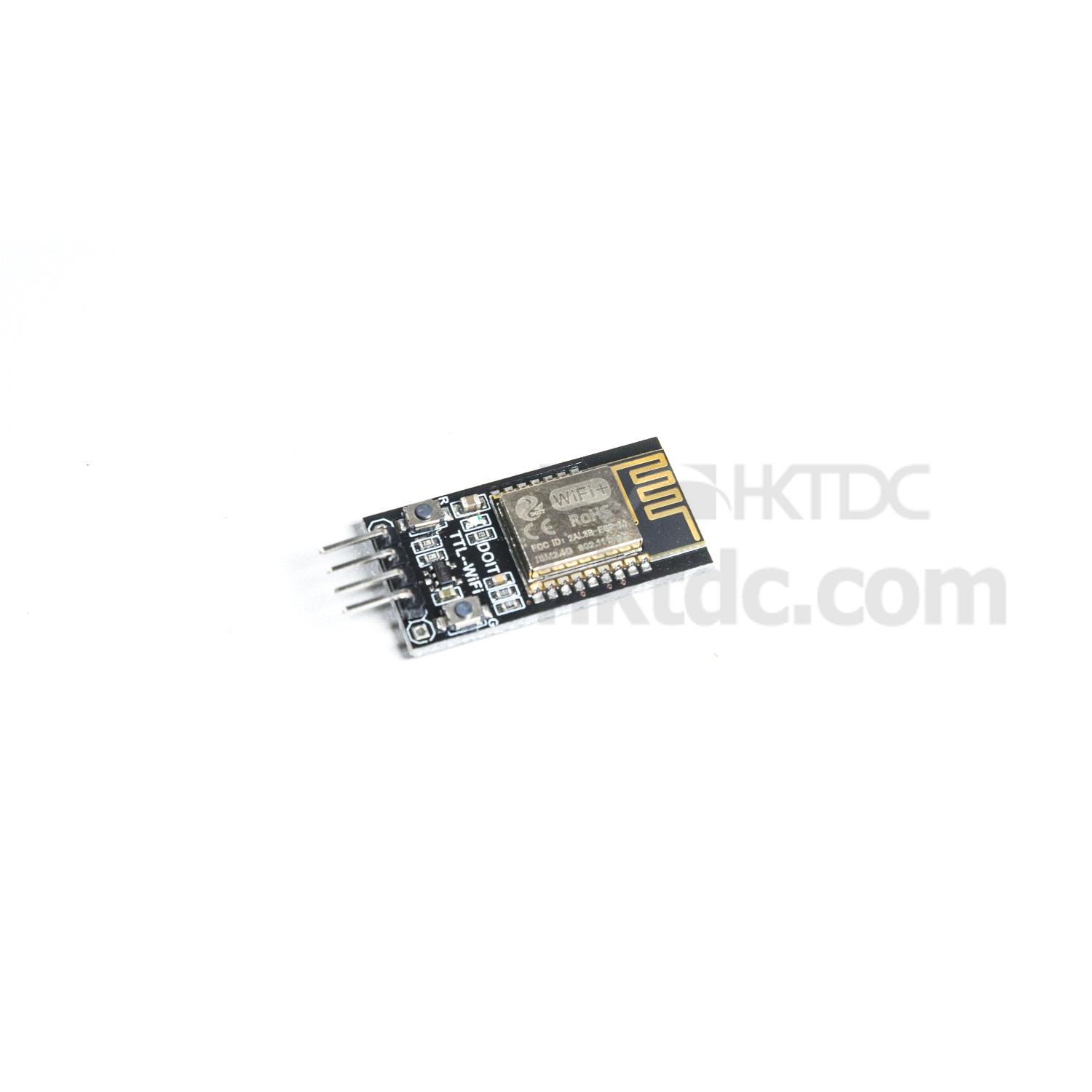

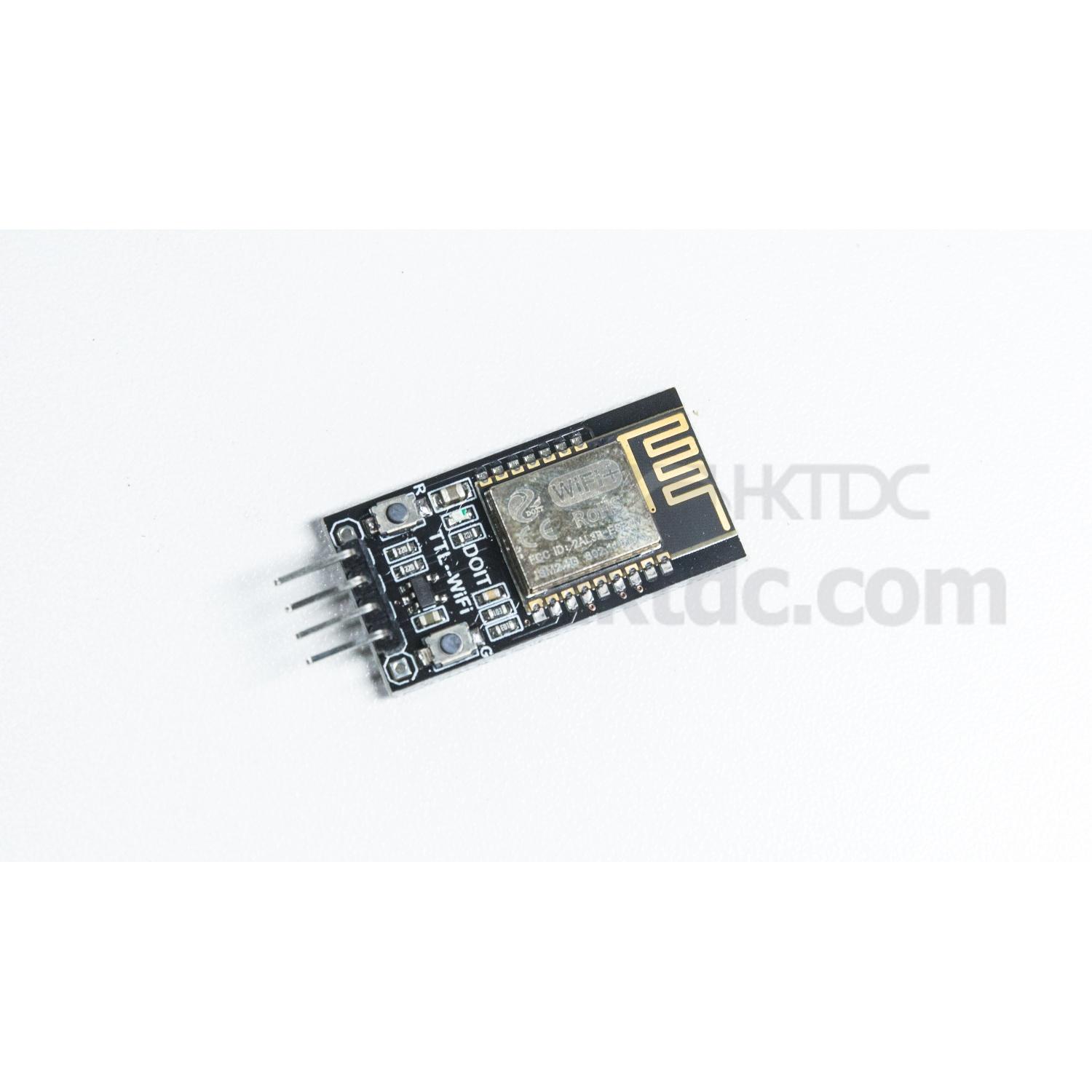

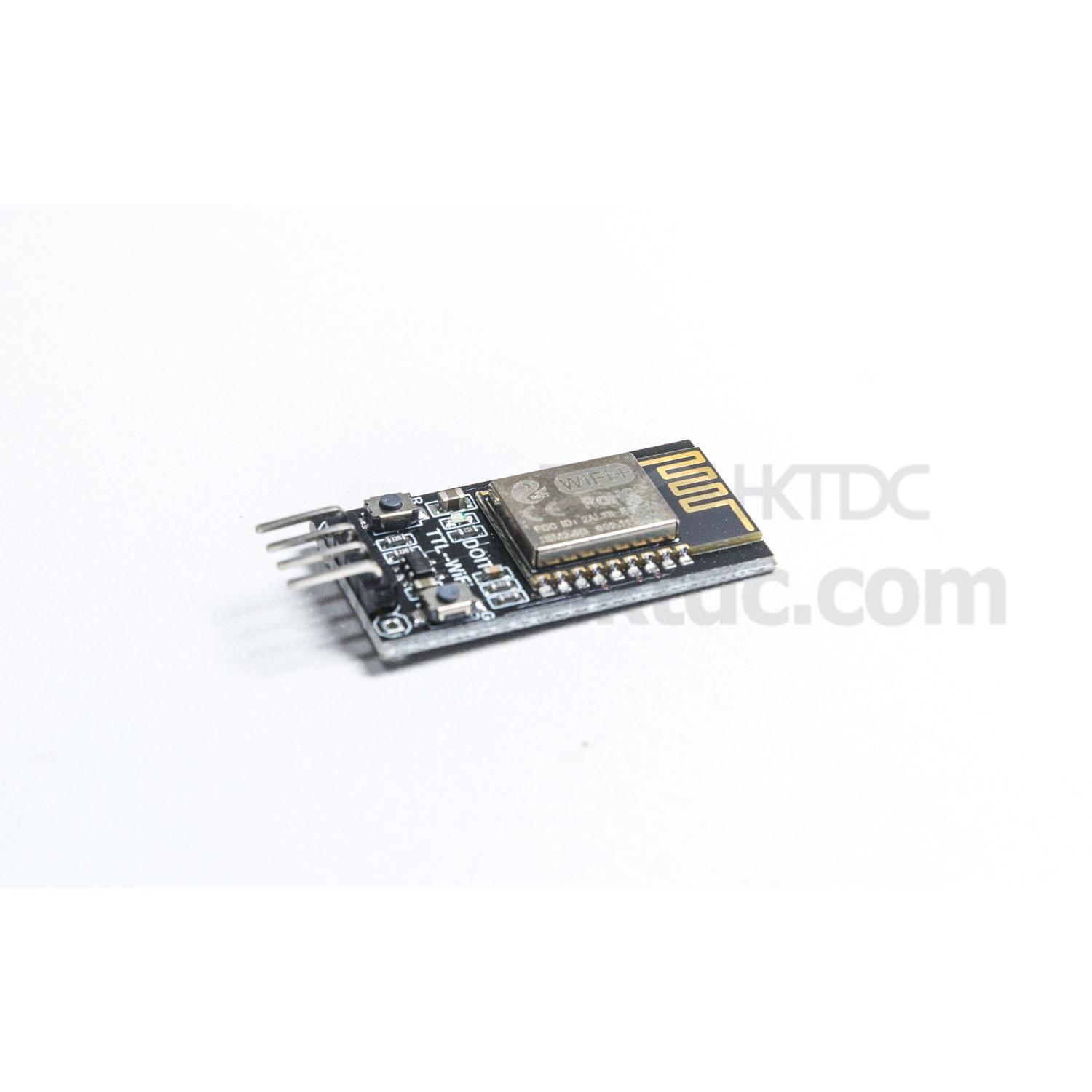

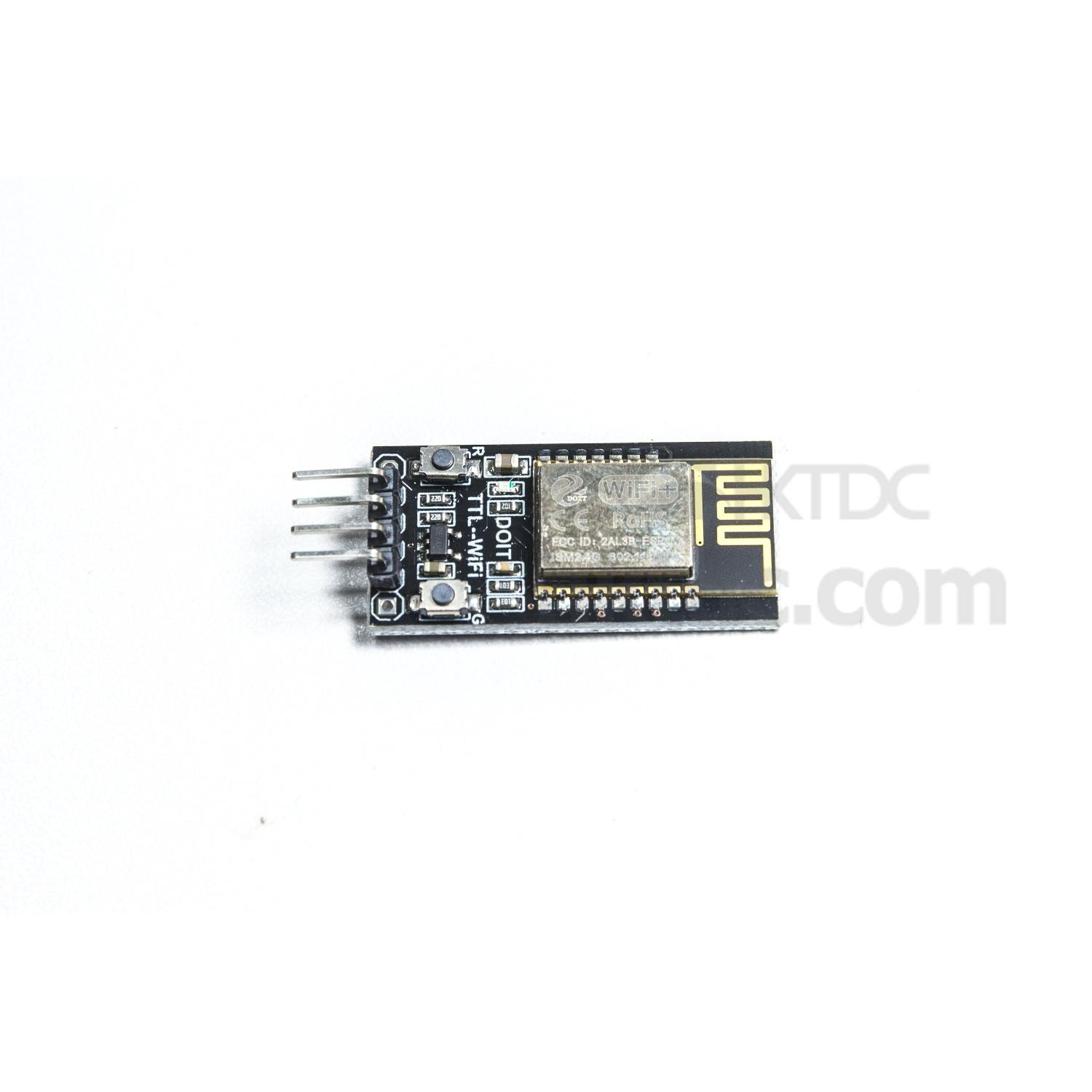

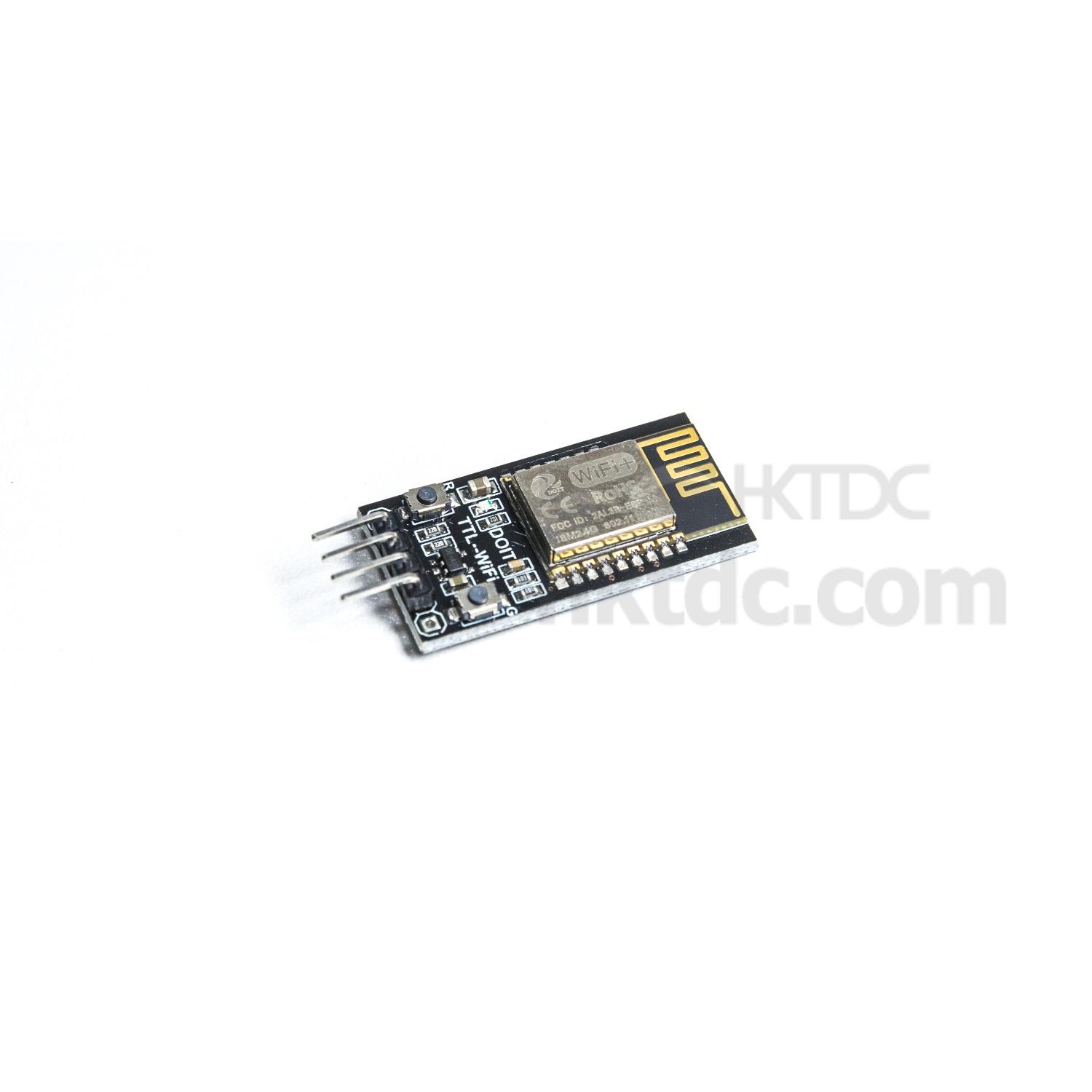

DT-06
- The package Includes: 1 x DT-06 Transmission Form Transparent Serial Port WiFi Wireless
- Fully compatible with the original electrical interface and physical interface for transparent serial Bluetooth
- Equipped with the firmware V3.0 transparent industrial transmission with the stability and reliability through the use of Web configuration
- Equipped with the WiFi ESP-module M2 high-performance
- Size: 34mm * 17mm * 4mm
- Operating Voltage: 4.5V ~ 6.0V
- TTL Operating Voltage: 3.3V (compatible with 5.0V)
- Pin: STATE, TXD, RXD, EN
- On Average Current: 80mA; during the transmission of data, it is 170mA; in the deep sleep mode, it is 20μA;
- It supports the command AT Serial
- Supports reprogramming and updating the firmware OTA
- With the transparent transmission without blemish between serial and WiFi
- With HTTP Web Server, it supports the configuration parameters on the web page
- It supports automatically reconnect to the WiFi STA mode and TCP Client
- Supports baud rate, data bits, parity check, stop bit and / or the time subcontracting
- Transmission Speed (Baud Rate) Compatible (bps): 300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 74800 / 115200 / 230400 / 460800 / 921600 / 1843200 / 3686400
- It Supports AP enablement, custom setting SSID / password, IP custom setting, and the lifetime of the network
- It can make automatic scanning of WiFi hotspots peripheral, supporting the enabling STA, DHCP, the Custom setting IP
- Server supports TCP, Client TCP Server UDP Client UDP and local communication UDP
- It supports automatic DNS resolution for the address of the remote server
- It supports control of the state by the command AT
- With IO4 to show the Wi-Fi status
- Operating Temperature: -40°C -125°C
- Applications: Smart home, wireless connection and data transparent transmission, intelligent car control, wireless serial printer, industrial control, LED light, etc..
