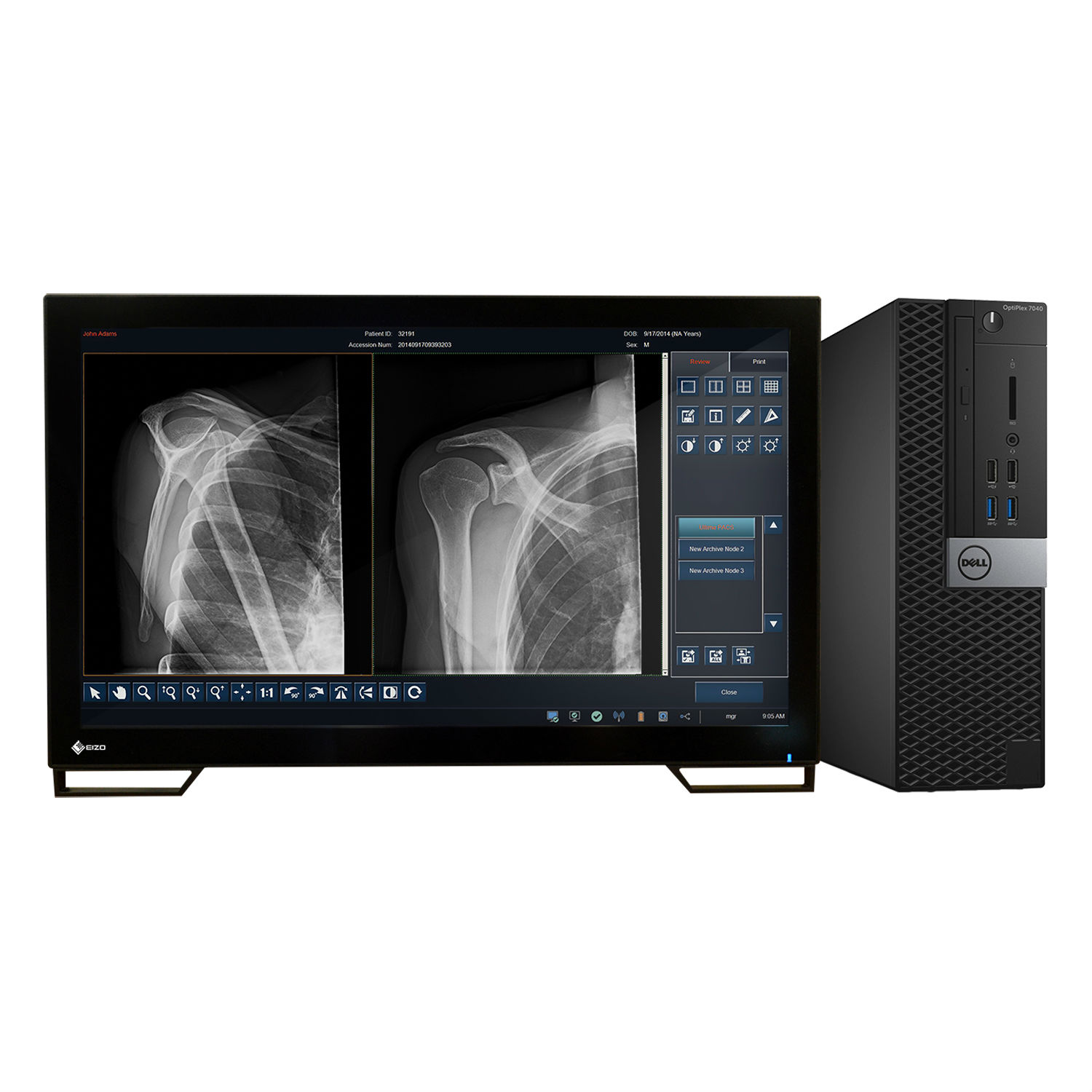

The DELWORKS E-Series DR System delivers exceptional diagnostic imaging through the use of Cesium Iodide (CsI) scintillators, Auto Exposure Detection (AED) technology and its powerful image acquisition and processing software.
Detector Specifications:
Pixel Size: 148 μm
Resolution: 3.5 lp/mm
Pixels:    2400 x 2880 pixels (E14Cw), 2880 x 2880 pixels (E17C), 1646 x 2057 pixels (E24Cw)
Active Area: 13.8" x 16.8" (E14Cw), 16.9" x 16.9" (E17C), 8.7" x 11.2" (E24Cw)
Image Depth: 16 bit A/D
Image Preview: 3 sec. (E14Cw), 4 sec. (E17C),1 sec. (E24Cw)

Cycle Time: 9 seconds (E14Cw), 6 seconds (E17C), 6 seconds (E24Cw)
Dimensions: 15" x 18" x 0.6" (E14Cw), 19.7" x 19.3" x 1.7" excluding cable (E17C), 15.1" x 18.1" x 0.6" (E24Cw)
Detector Weight: 6.17 lbs. (E14Cw), 27.5 lbs. (E17C), 3.5 lbs. (E24Cw)

Software Features
• Exam-specific image processing algorithms automatically optimize images based on selected patient anatomy
• Enhanced image processing parameters. APR specific default values and manual  adjustment, if desired
• Image rotation in 90° steps, horizontal mirroring, automatic and manual image cropping  to collimated area
• Easy verification and correction of image laterality and patient orientation
• Intuitively add orientation markers and text comments directly to aquired images (pre-defined or free text)
• Detailed histograms of pixel density
• User selection of modified LUT (Look-Up Table) based on various exam types
• Manual adjustment of the LUT, window and level
• Effectively manage rejected images
