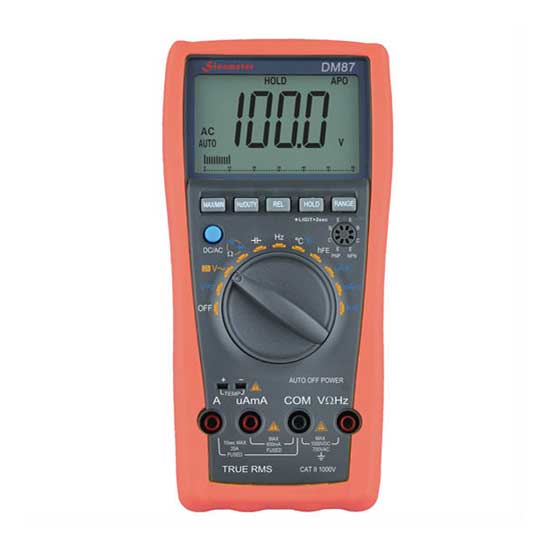

This digital multimeter features an LCD screen display with bar graph. The VSD measurement measures the voltage and frequency of variable-speed drive accurately. It is safely guaranteed with its full-function protection and anti-magnetic anti-jamming design.

• 6,000 counts LCD display with bar graph.
• True RMS AC measurement (up to 10KHz).
• Relative and max./min. value measurement.
• Auto-power off (approx. 30 min).
• Data hold and LCD backlit.
• Integrated holster, shock-proof.
• Safety as per IEC1010-1 Cat. II 1,000V.
• DCV: 600m/6/60/600/1000V, ±0.5%.
• ACV: 6/60/600/750V, ±0.8% (50-20kHz).
• VSD-V: 6/60/600/750V, ±2.0% (30-200Hz).
• DCA: 600μ/6m/60m/600m/6/20A, ±1.0%.
• ACA: 600μ/6m/60m/600m/6/20A, ±1.2%.
• OHM: 600/6k/60k/600k/6M/30MΩ, ±0.8%.
• CAP: 40n/400n/4μ/40μ/400μ/2000μF, ±2.5%.
• FREQ: 5Hz-30MHz, ±0.5%.
• TEMP: -40-1,000℃, 0-1,832℉, ±0.8%.
• Duty cycle: 1-99%.
• Audible continuity: <30±10Ω.
• Transistor HFE & diode test battery: 9V x 1, 6F22.
• Weight: 290g.
• Accessories: holster, temp probe.
