DALI 2.0 251/252/253 dimming Supermarket Warehouse Led Linear Light Trunking System

美元 $10.00 - 美元 $15.00

生产所需时间:

8 日

运送方式:

DHL/UPS/FEDEX/TNT

CCT:

3000K/4000K/5000K/6500K

Input Voltage(V):

AC220-240VAC/100-277VAC

Power:

20W-35W/35W-50W/55W-70W/70W-100W-110-160W

Lumen:

4000lm-32000lm

Light Efficiency:

200lm/w

THD:

<15%

PF:

>0.95

CRI (Ra>):

UGR:

<19

IP Rating:

IP20

Lifespan (hours):

70000

Warranty:

5 years

Light Source:

smd2835

Dimming:

DALI 2.0 DT6, DALI 2.0 DT8, DALI 2.0 251/252/253

Wires:

5 wire/ 8 wire/ 12 wire

Connector:

L/T/X Node Connector can be choose

Function:

Dimmable(DALI/1-10V), Emergency, Sensor, Track Spot Light

Certifications:

CE/CB/ETL/DTC/SAA/FCC/GS/UL

Beam Angle:

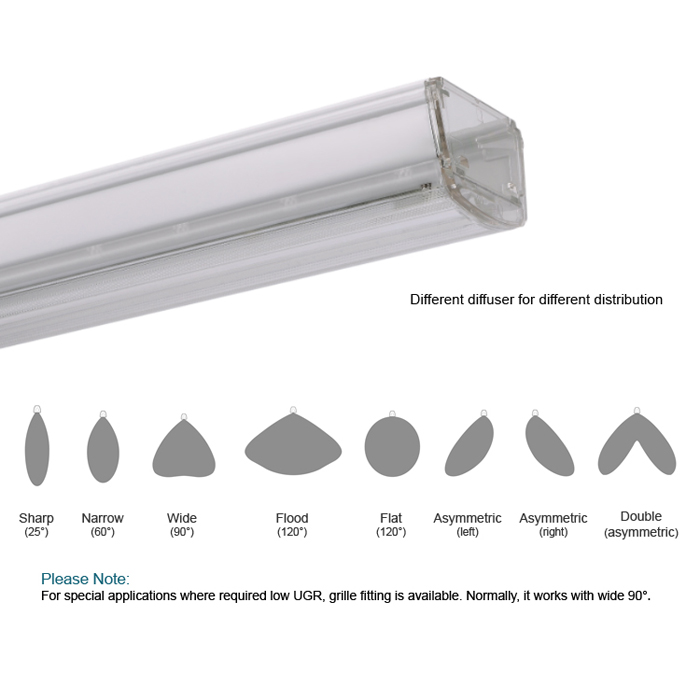

25°;60°;90°;120°; Asymmetric; Double Asymmetric

Lens:

SP(Sharp-25°), NR(Narrow-60°), WD(Wide-90°), FD(Flood-120°), DS(Double Asymmetric),RS/LS(Right/Left Asymmetric),FF(Flat-120°)

Driver:

Coreshine/Boke/Tridonic

LED Chip:

Ebright/Bridgelux

Packing:

Luminaire and Trunking rail are packed separately

描述

联络供应商

Product Details

Coreshine S-LINE Led Linear Lighting System is an energy-efficient, low maintenance cost, and better alternative to traditional linear fluorescent in a variety of industrial, commercial, and light assembly applications.

Cost-effective light-line solution for industrial, commercial, and other applications
Good quality of light with high lumen output to meet different requirements
Easy to install, reducing time, labor, packaging waste, and complexity
Flexible solution
Working Temperature(℃): -20 - 65 ℃

Length	Power	Lumen	Code No.
1200mm	30-45W	8325lm	CFL-1245-X1X2-X3WH
1200mm	48-60W	11100lm	CFL-1260-X1X2-X3WH
1200mm	20-35W	7000lm	CFL-1535-X1X2-X3WH
1500mm	35-50W	10000lm	CFL-1550-X1X2-X3WH
1500mm	55-70W	14000lm	CFL-1570-X1X2-X3WH
1500mm	70-100W	20000lm	CFL-15100-X1X2-X3WH
2400mm	40-70W	14000lm	CFL-2470-X1X2-X3WH
2400mm	70-120W	24000lm	CFL-24120-X1X2-X3WH
2400mm	110-160W	32000lm	CFL-24160-X1X2-X3WH

Return of Investment Comparison

We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse

300 sq.m
	Unite	S-line	LED Tube
Lighting Effect	lm/w	200	100
Qty of Luminaire	set	480	960
Total Power Consumption	KW	25	48
Unite Price of Electric	CNY/KWH	1.5
Light Time	Hour/Day	1.2
Electric bill /day	CNY	432.00	864.00
Electric bill / month	CNY	12,960.00	25,920.00
Electric bill / year	CNY	155,520.00	311,040.00
Save the cost per year	CNY	155,520.00

According to the simulation, the purchase cost will payback within 2 years

Why Choose Coreshine

CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.

Established in 2005
Located in Shenzhen
Number of employees 200 staffs
13,000 square meter 9 floors of workshop + 1 floor of office
Complete Industry Layout: R&D, Production, Marketing
Our Goal: To be World Leader of Linear Lighting System

Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.

R&D

Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
Their average industry experience is more than 10 years.

Production

More than 95% of our accessories are made by ourselves.
We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
All our employees have professional training before going to work, and only 100% passed of the employees can be hired.

Our QC department consists of 11 people, all of them are very experienced in this field.
They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.
