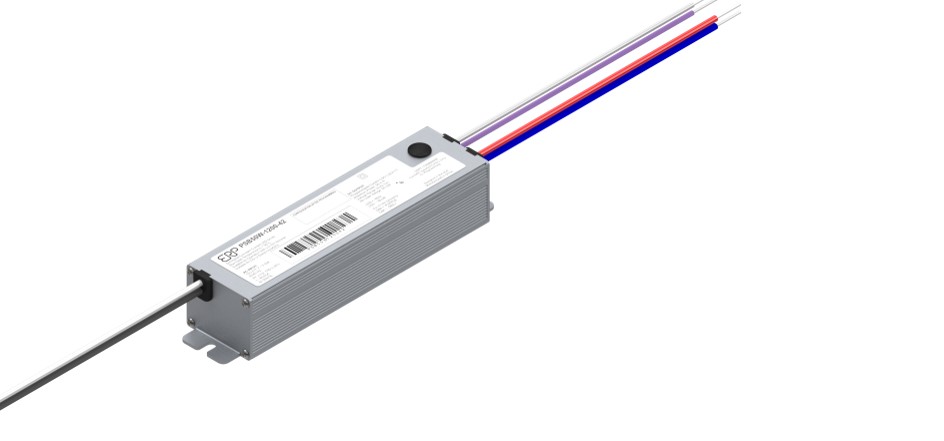

ERP Power PSB Series LED Driver

产品型号:

PSB Series

品牌名称:

ERP Power

颜色:

Anodized Aluminum

尺寸:

L 98.5 x W 26.2 x H 21.85 mm

港口:

Hong Kong

最低订购数量:

500

证书:

中国3C认证, 欧盟CE认证, 美国FCC认证, 符合RoHS指令, 美国UL认证

保养期:

5 Years

描述

联络供应商

Non-linear 0-10V dimming profile with dim-to-off (10V to 9.1V=100%, 1.5V to 0.6V=1%, <0.6V=dim-to-off)
Fully programmable and selectable 0-10V dimming profiles: Non-linear with dim-to-off, Logarithmic, Non-Linear without dim-to-off.
UL Class P
Class 2 power supply
Serial port programming 50%-100% current in each voltage range
Data log: SKU, S/N, lot code, FW rev., hours of operation, fault events: power failure, transients (short or surge), thermal
Other mounting options for European terminal blocks or bottom leads with studs
Lifetime: 50,000 hours at 75°C case hot spot temperature
90°C maximum case hot spot temperature
IP20-rated (IP64 as option) case with silicone-based potting

Surge protection:

IEC61000-4-5: 2 kV line to line / 2 kV line to earth
2.5 kV ring wave: ANSI/IEEE c62.41.1-2002 & c62.41.2-2002 category A
Complies with ENERGY STAR®, DLC (DesignLight Consortium®) and CA Title 24 technical requirements
Worldwide safety approvals

Programming Features

Serial port programming
Current: 100% to 50% in each voltage range
Data log read: SKU, S/N, lot code, hours of operation, FW rev., fault events: power failure, transients (short or surge), thermal
Fully programmable and selectable 0-10V dimming profiles: Non-linear with dim-to-off, Logarithmic, Non-Linear without dim-to-off.
