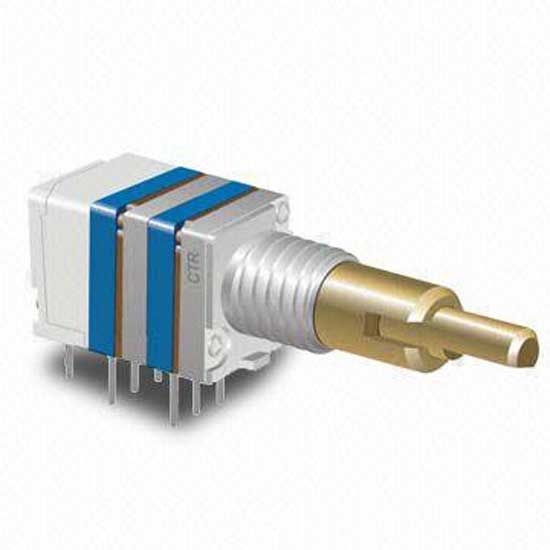

Displayed is an electrical encoder that is designed to convert electrical code and signal. The built-in rotational stopper offers great endurance and exceptional durability. Enhance the stability and reliability of different types of electrical appliances with this encoder.

• Rotational torque: 10-80gf.cm.
• Push-pull strength 10Kgf.cm for 15 seconds.
• Total rotational angle 300°.
• Angle of throw: 9° x 40 channels.
• Total resistance tolerance: 10%.
• Contact resistance: 1Ω.
• Insulation resistance: 100MΩ.
• Rotational life: 10,000 cycles.
• Soldering heat resistance: 350℃ at 3 seconds.
• Operating temperature range: -30 to 60℃.
• Voltage: 250V DC.
