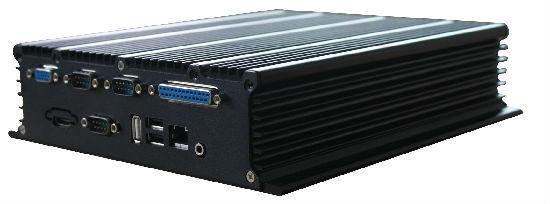

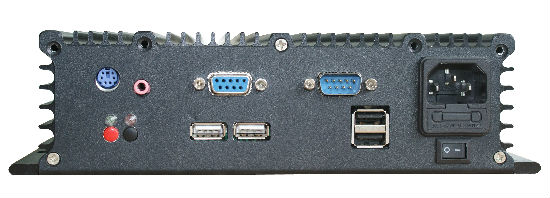

Embedded Mini Fanless PC/Fanless Industrial Mini Computer with HDMI and PCI
生产所需时间:
5 日
产品型号:
MD6-GK0107-K
品牌名称:
Yulian
颜色:
Black
尺寸:
250 x 58 x 195mm
港口:
Guangzhou
付款方式:
T/T, PAYPAL, Western Union
描述
联络供应商
描述
- System: motherboard mini-ITX MP-N2600.
- Embedded CPU: Intel Cedar Trail series CPU ATOM N2600.
- Memory: soldered onboard 2GB DDR3-1333 SDRAM.
- Chipset: Intel NM10 Express chipset.
- 1 x serial ATA II ports with 3GB/s HDD/SDD transfer rate.
- 2 x serial ATA III ports with 6GB/s HDD/SDD transfer rate.
- LAN chipset: 1 x realtek RTL8111DL Gigabit Ethernet controllers.
- Audio: ALC 662 2-channel audio codec intergrated.
- Mult I/O: seriall port.
- 4 x DB-9 male connector port.
- Support 4 x RS232 ports (COM4 is RS232/422/485 selectable).
- USB port: 7 x USB 2.0 ports.
- GPIO header: 1 x DB-9 female connector port.
- Video port: 1 x HDMI port connector.
- 1 x DB-15 female connector port for analog RGB.
- 1 x LVDS connector, supports dual channels 24-bit LVDS output.
- 1 x LVDS connector, supports single channels 18-bit LVDS output.
- Selectable port: 1 x DB-25 female connector digital I/O port LPT.
- PS2 port: 1 x 6-pin mini-din for keyboard and mouse.
- Expansion bus: 1 x PCI slot w/riser card.
- 1 x mini PCI-E slot with riser card.
- Environmental: operating temp.-10~60°C.
- Storage temp.: -40~85°C.
- Relative humidity: 20~85%.
- Vibration: 3 grams/5~450Hz/random operation.
- Operating 20G (11ms), non-operating 320G with HDD.
- Operating 80G (11ms), non-operating 32G with SSD.
- Certification: CCC, CB, CE, FCC, RoHS.
- Power requirement: power input 100V-240V AC 1.5A/DC 12V 5A (BNC prot).
- Power consumption: 40W (max.)
- Power adapter 60W AC/DC Adapter (DC to configure).
- Type: 1 x 2.5" drive bay for STAT II HDD-320G/SSD-32G.
- Mechanical: construction aluminum.
- Mounting: wall-mount (default integrated)/din rail mounting.
- Weight/gross weight: 2.1kg/2.6kg.
- Dimensions: (W x D x H) 250 x 58 x 195mm.
