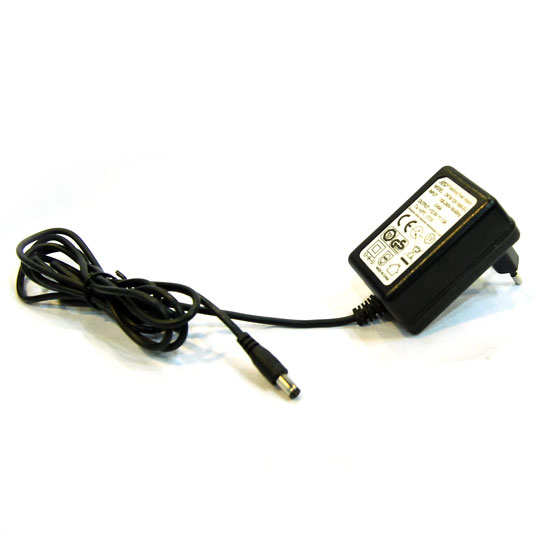

The featured 12W external power supply boasts sturdy construction. It is compact, portable, sleek, as well as lightweight. This external power supply is commonly used with mobile devices, POS systems, portable hard disks or set-top boxes.
- Meets EC level V, MEPS V EUP2011requirements.
- Application: mobile devices, POS systems, portable hard disks and set-top boxes.
- Output voltage: 3V-24V.
- Output current: 0-4A.
- Over voltage protection: latch off.
- Over current protection: latch off.
- Short circuit protection: auto recovery.
- Operating temperature: 0-40 degrees Celsius.
- Withstand voltage: AC 3,000V 1 minute.
- Storage temperature: -20 to 80 degrees Celsius.
- AC input voltage: AC 90-264V.
- AC input voltage range: 47-50 or 60-63Hz.
- Input current: 0.45A (maximum) AC 100/240V.
- Inrush current: less than 60A at AC 240V cold start 25 degrees Celsius.
- 0.25mA.
- Safety standards: EN60950, EN61558, UL60950, UL1310 and GB4943.
- Certificates: CB, GS, CE, UL, CCC, FCC, PSE, PSB, TUB KC and C-TICK.
- EMI emission certificate: conduction and radiation: EN 55022/FF part 15; EN 61000-3-2; voltage changing test: EN 61000-3-3.
- EMS immunity certificate: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 and EN 61000-4-11.
