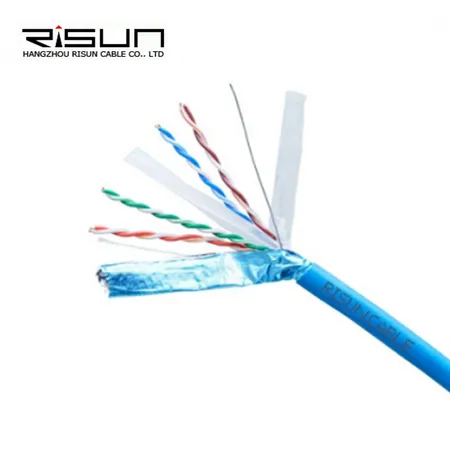

F/UTP CAT6 LSZH Cables

美元 $105.00 - 美元 $118.00

生产所需时间:

20 日

运送方式:

BY SEA

描述

联络供应商

DESCRIPTION

Manufactured according to ISO / IEC 11801-2, TIA-568-C.2, EN-50173.

TECHNICAL SPECIFICATIONS

Conductor	Solid bare copper : 0,56±0.01 mm
Insulation	HDPE : 1.09±0.05 mm
Identification of pairs
1 pair	Blue - White / Blue
2 pair	Orange - White / Orange
3 pair	Green - White / Green
4 pair	Brown - White / Brown
Filler	Yes
Drain	0,40±0.01 mm TC
Screening Material	Polyester Tape / Aluminum Foil
Ripcord	Yes
Sheath	LSZH
Color	Blue (other colors are available upon request)
Bending radius	≥ 8 x Diameter (mm) Installation
Storage temperature	-15℃—+70℃

ELECTRICAL CHARACTERISTICS

nº Pairs.x Ф 4x2x23AWG

Conductor Resistance max.75 Ω/km

Resistance Unbalance max.5%

Cap. between cond. pair 56nF / 100m

Velocity of Propagation 69%

Impendance 100±15 Ω

Frequency (MHz)	Return Loss ≧dB	ATT ≦dB/100m	Next ≧dB	DELAY ≦ns100m	PS NEXT ≧dB	EL FEXT ≦dB/100m	PS EL FEXT ≧dB/100m
1	20.0	2.03	74.3	570.0	72.3	67.8	64.8
4	23.0	3.78	65.3	552.0	63.3	55.8	52.8
8	24.5	5.32	60.8	546.73	58.8	49.7	46.7
10	25.0	5.95	59.3	545.38	57.3	47.8	44.8
16	25.0	7.55	56.2	543.0	54.2	43.7	40.7
20	25.0	8.47	54.8	542.05	52.8	41.8	38.8
25	24.3	9.51	53.3	541.20	41.3	39.8	36.8
31.25	23.6	10.67	51.9	540.44	49.9	37.9	34.9
62.5	21.5	15.38	47.4	538.55	45.4	31.9	28.9
100	20.1	19.80	44.3	537.60	42.3	27.8	24.8
200	18.0	28.98	39.8	536.54	37.8	21.8	18.8
250	17.3	32.85	38.3	536.27	36.3	19.8	16.8

APPLIANCE

Cable for data transmission in structured cabling networks (LAN), horizontal and secondary facilities.

PACKING

305 m / wooden drum

500 m / wooden drum

FAQ:

Q:How do you ensure cables quality?
A:Each cable undergoes physical testing in accordance with ISO/IEC 11801 and TIA-568-C.2 standards. Our team monitors every stage of production, with QC inspecting each step to ensure quality.

Q:Are you a manufacturer or trading company?
A:We are a factory.

Q:What is your delivery time?
A:Typically 5-10 days if in stock; 20-30 days for custom orders, depending on quantity.

Q:Do you have an MOQ?
A:Yes, normally 10 km per item.

Q:Do you provide samples? Are they free?
A:Yes, samples are free, but freight charges apply.

Q:How do I place an order for cables?
A:Share your requirements or application.→We provide a quote.→Confirm the sample and place a deposit.→We start production.

Q:Can I print my logo on the cables?
A:Yes, inform us before production.

Q:What are your payment terms?
A:Orders ≤ 60 km: 100% upfront.
Orders ≥ 60 km: 30% deposit, balance before shipment.

Please contact us for more information and our quotation!
